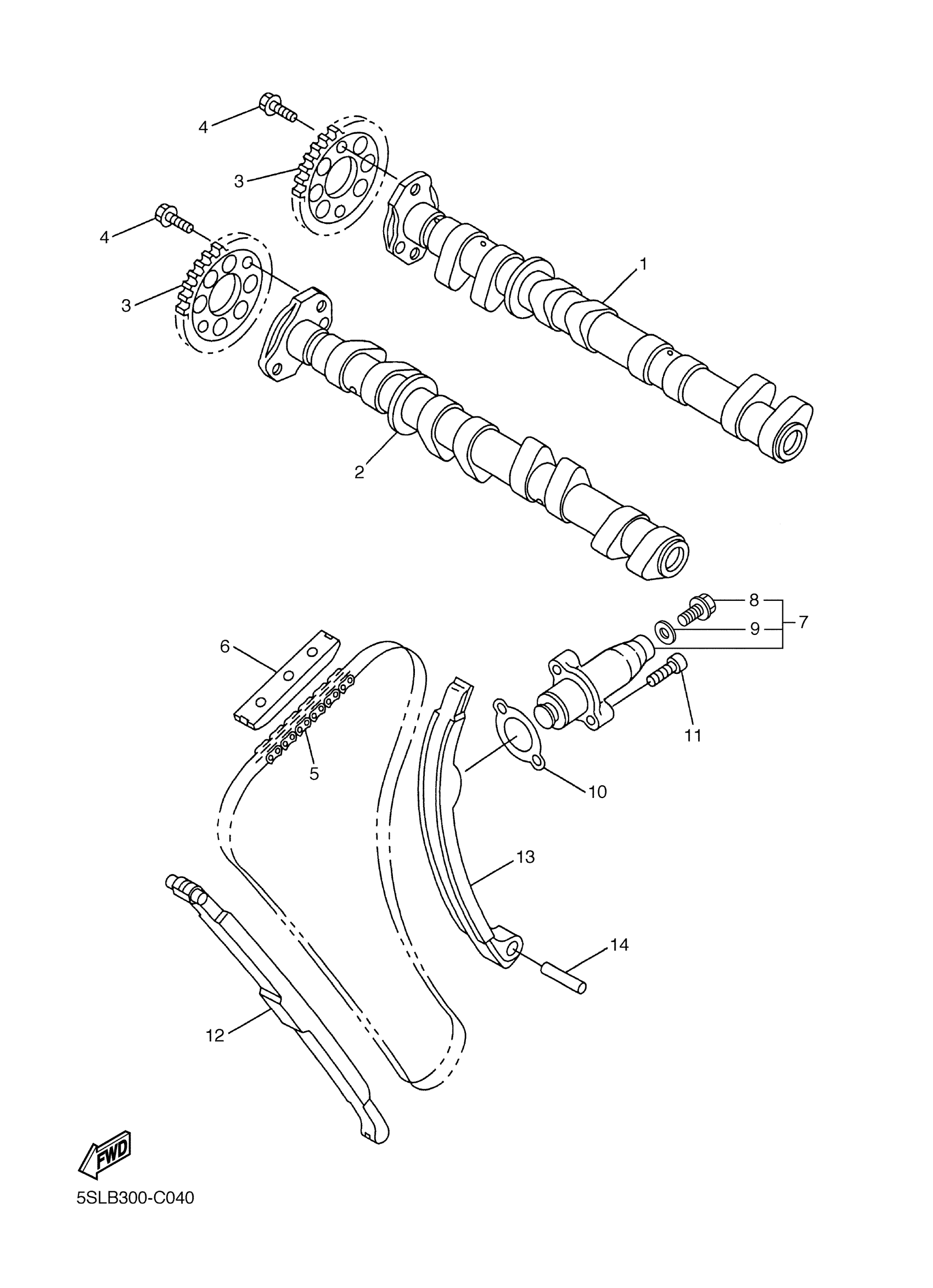

Yamaha YZFR6SC (YZFR6 CA) 5SLE 2004 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5SL-12170-00-00

Unavailable

2

CAMSHAFT ASSY 2

5SL-12180-00-00

Unavailable

3

SPROCKET, CAM CHAIN

5EB-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-49120-00

$32.59

6

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

7

TENSIONER ASSY.

5SL-12210-11-00

Unavailable

8

BOLT

5EL-12228-00-00

$2.52

9

GASKET

5SL-12214-00-00

$5.96

10

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

11

BOLT,SOCKET

91317-06025-00

$1.91

12

DAMPER, CHAIN 1

5EB-12251-01-00

Unavailable

13

DAMPER, CHAIN 2

5EB-12252-11-00

Unavailable

14

PIN, DOWEL (8V8)

93607-44190-00

$13.30
