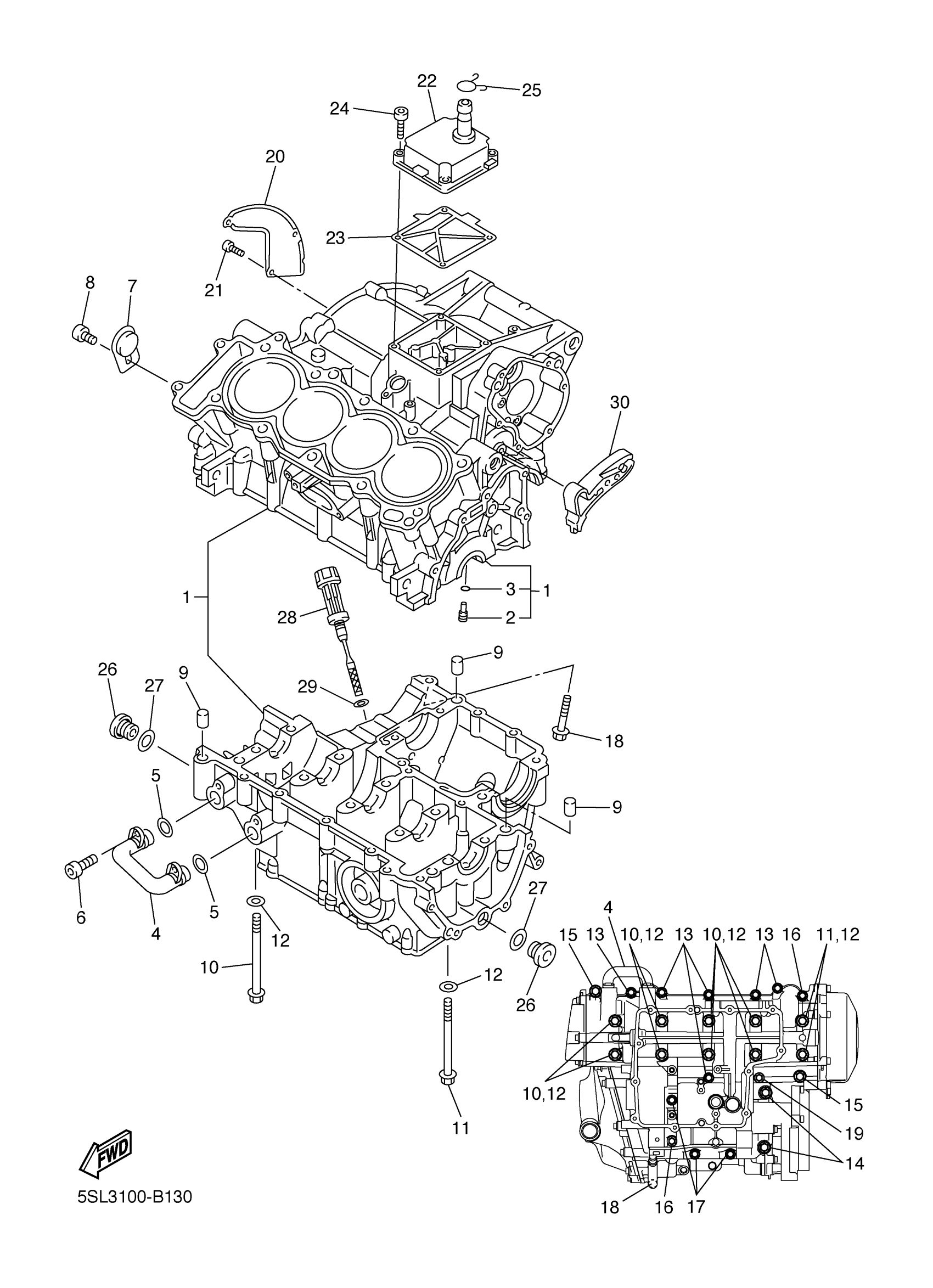

Yamaha YZFR6RC (YZFR6 CA) 5SL4 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5SL-15100-02-00

Unavailable

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PIPE, OIL 2

13S-13418-00-00

$46.99

5

O-RING (26H)

93210-14579-00

$7.49

6

BOLT,SOCKET

91317-06016-00

$1.25

7

PLUG

5SL-15189-00-00

$2.34

8

SCREW(1KT)

90149-06228-00

$9.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, WASHER BASED

90105-087A0-00

$5.60

11

BOLT, FLANGE

90105-086A9-00

Unavailable

12

WASHER, PLATE(1WG)

90201-087K3-00

$3.50

13

BOLT, FLANGE

95817-06055-00

$7.49

14

BOLT, WASHER BASED

90105-084A1-00

$10.49

15

BOLT

90109-065G3-00

$9.49

16

BOLT, FLANGE

95817-06065-00

Unavailable

17

BOLT, FLANGE

95817-06045-00

Unavailable

18

BOLT, FLANGE

95817-06100-00

Unavailable

19

BOLT, WASHER BASED

90105-06006-00

Unavailable

20

PLATE, BREATHER

5SL-11165-00-00

Unavailable

21

SCREW(1KT)

90149-06228-00

$9.49

22

COVER

5VX-15413-01-00

Unavailable

23

GASKET, CRANKCASE COVER 3

5SL-15462-00-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

PLUG

36Y-15189-01-00

Unavailable

27

O-RING(1L9)

93210-16325-00

Unavailable

28

PLUG, OIL LEVEL

5EB-15362-10-00

Unavailable

29

O-RING (1J7)

93210-09350-00

Unavailable

30

GUIDE, INLET

5SL-15377-00-00

Unavailable
