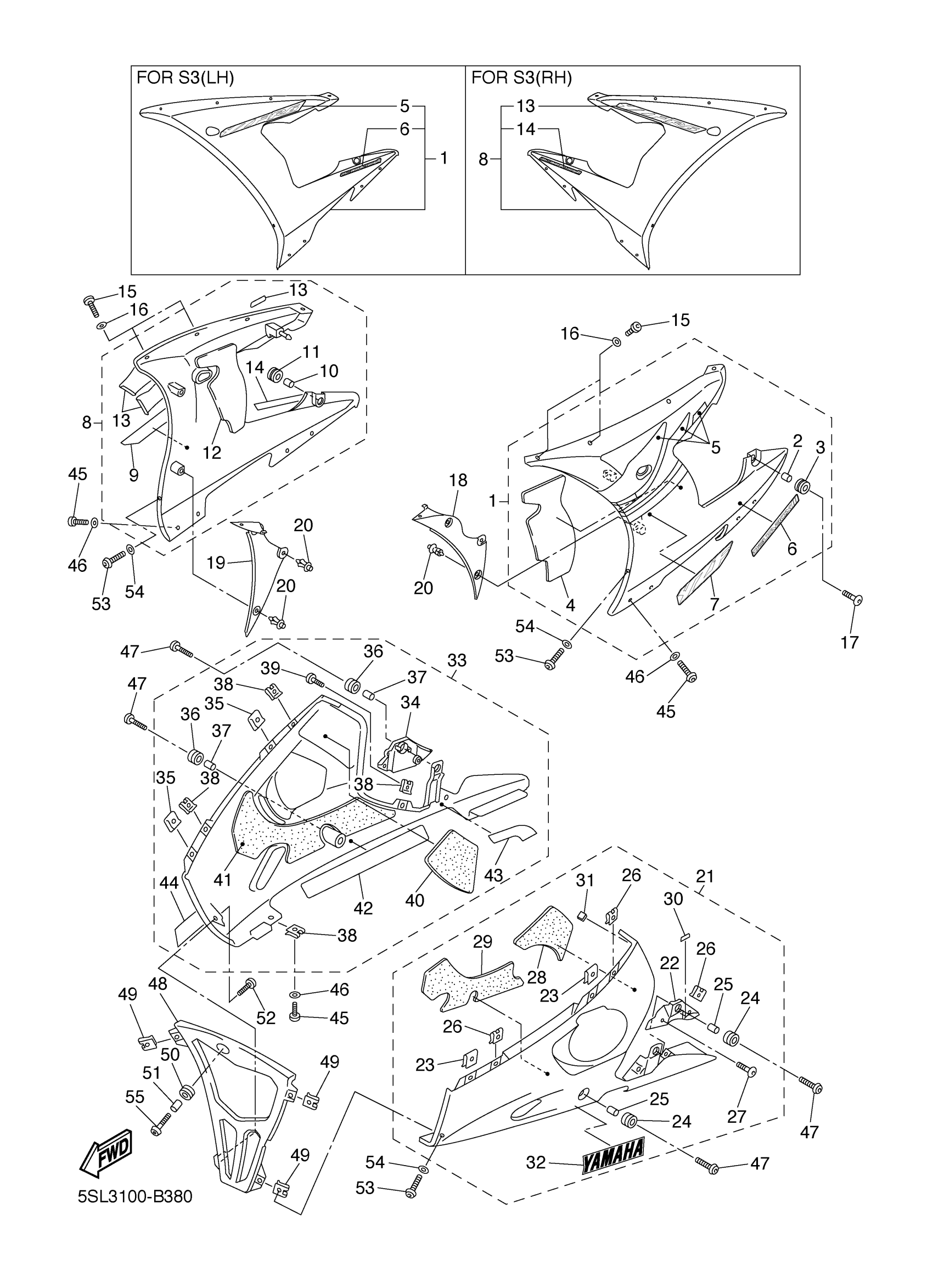

Yamaha YZFR6RC (YZFR6 CA) 5SL4 2003 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283U-50-P1
Unavailable
1
PANEL ASSEMBLY 1 (MAT BLACK 2) (SILVER 3)
5SL-Y283U-60-P0
Unavailable
4
. DAMPER, LOCATING 1
5SL-2836T-00-00
Unavailable
5
GRAPHIC SET, LOWER COVER 1
5SL-28301-20-00
Unavailable
5
EMBLEM
5SL-28368-01-00
Unavailable
6
. EMBLEM (SILVER 3)
5SL-28328-41-00
Unavailable
7
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-2839H-00-00
Unavailable
8
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5SL-Y283V-50-P1
Unavailable
8
PANEL ASSEMBLY 2 (MAT BLACK 2) (SILVER 3)
5SL-Y283V-60-P0
Unavailable
9
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-2839H-00-00
Unavailable
12
DAMPER, LOCATING 2
5SL-2836U-00-00
Unavailable
13
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5SL-28303-20-00
Unavailable
13
EMBLEM
5SL-28368-01-00
Unavailable
14
. EMBLEM (SILVER 3)
5SL-28328-41-00
Unavailable
15
BOLT
90111-05003-00
Unavailable
16
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
17
BOLT
90111-06040-00
Unavailable
18
PANEL, INNER 1
5SL-2836K-00-00
Unavailable
19
PANEL, INNER 2
5SL-2836L-00-00
Unavailable
20
RIVET
90269-06008-00
Unavailable
21
COVER ASSY, UNDER (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2808-00-P0
Unavailable
21
COVER ASSY, UNDER (SILVER 3)
5SL-Y2808-20-P2
Unavailable
22
COVER 3
5SL-2843J-00-00
Unavailable
23
NUT, SPRING
90183-051A0-00
Unavailable
26
NUT, SPRING(3GM)
90183-05061-00
Unavailable
27
BOLT
90111-05002-00
Unavailable
28
DAMPER 1
5SL-2834E-00-00
Unavailable
29
. DAMPER 5
5SL-2837J-00-00
Unavailable
30
PLATE, FOOTREST
1HX-27415-00-00
Unavailable
31
DAMPER
5SL-21649-00-00
Unavailable
32
EMBLEM, YAMAHA
99241-00280-00
Unavailable
32
EMBLEM, YAMAHA
99247-00280-00
Unavailable
33
COVER ASSY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)
5SL-Y2809-00-P0
Unavailable
33
COVER ASSY 2, UNDER (SILVER 3)
5SL-Y2809-20-P2
Unavailable
34
COVER 4
5SL-2844J-00-00
Unavailable
35
NUT, SPRING
90183-051A0-00
Unavailable
38
NUT, SPRING(3GM)
90183-05061-00
Unavailable
39
BOLT
90111-05002-00
Unavailable
40
DAMPER
5SL-2834F-00-00
Unavailable
41
. DAMPER 6
5SL-2837K-00-00
Unavailable
42
. SEAT 1
5SL-2838G-00-00
Unavailable
43
SEAT 2
5SL-2848K-00-00
Unavailable
44
EMBLEM, YAMAHA
99241-00280-00
Unavailable
44
EMBLEM, YAMAHA
99247-00280-00
Unavailable
45
BOLT
90111-05003-00
Unavailable
46
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
47
BOLT
90111-06040-00
Unavailable
48
PANEL, INNER 3
5SL-2836M-00-00
Unavailable
49
NUT, SPRING(3GM)
90183-05061-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
53
BOLT
90111-05003-00
Unavailable
54
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
55
BOLT
90111-06040-00
Unavailable
