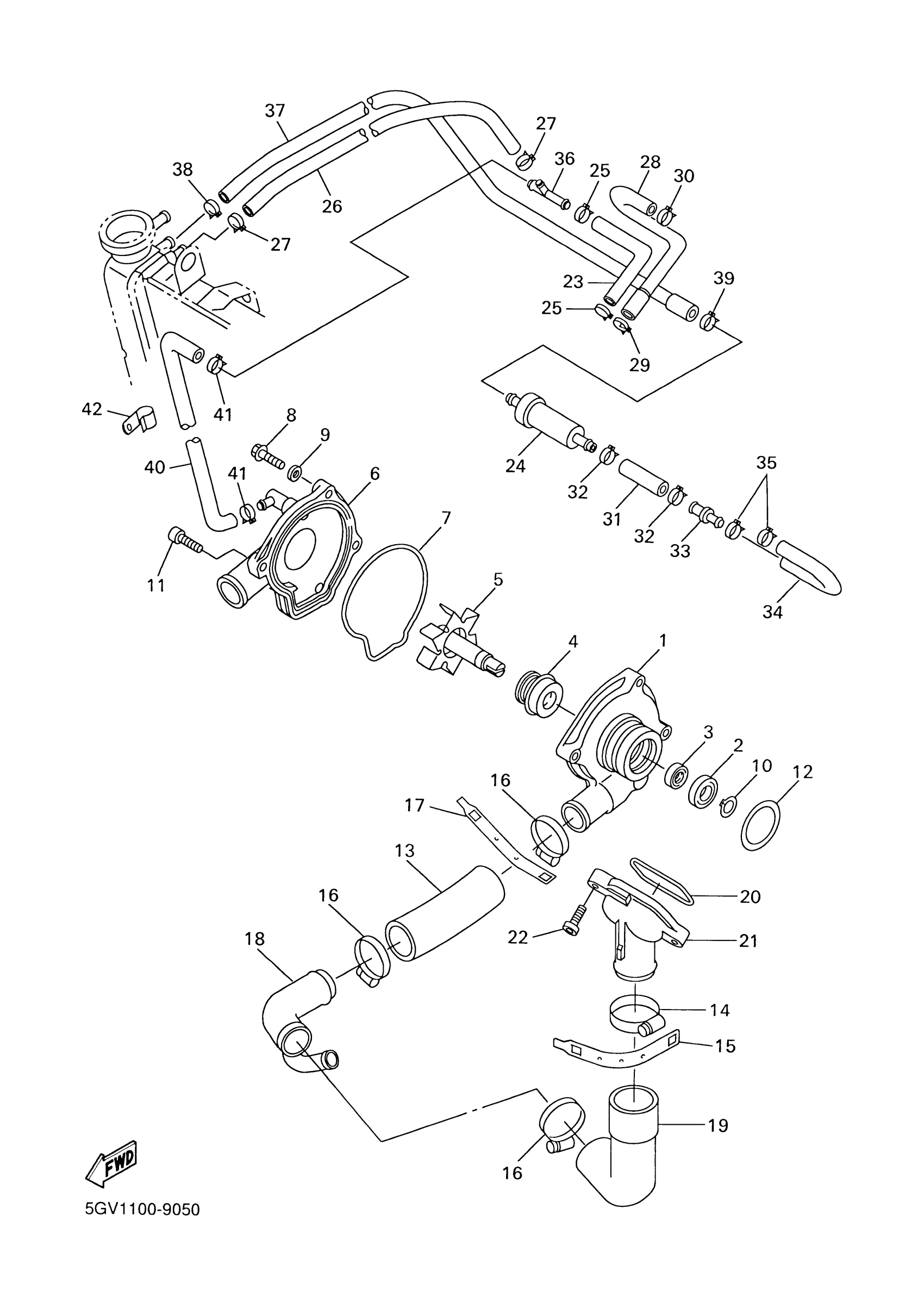

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 WATER PUMP Diagram

#

Description
Price

1

HOUSING, WATER PUMP

5VX-12421-00-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93101-12173-00

$13.49

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

IMPELLER SHAFT ASSY

5EB-12450-00-00

$67.99

6

COVER, HOUSING

5VX-12422-00-00

Unavailable

7

O-RING

5EB-12439-00-00

$17.49

8

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

9

GASKET 256113960000

90430-06014-00

Unavailable

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

BOLT,SOCKET

91317-06040-00

$3.76

12

O-RING (626)

93210-33133-00

$2.92

13

HOSE 4 (L105.6)

4NK-12579-00-00

Unavailable

14

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

15

COVER 1

5GV-1246A-00-00

Unavailable

16

HOSE CLAMP ASSY

90450-35001-00

Unavailable

17

COVER 2

5GV-1246E-00-00

Unavailable

18

JOINT, HOSE 1

20S-12581-01-00

Unavailable

19

HOSE 2

5EB-12577-01-00

Unavailable

20

O-RING(52H)

93210-47675-00

Unavailable

21

JOINT 1

5EB-12469-00-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

HOSE 1

5EB-1243A-00-00

Unavailable

24

THERMOSTAT ASSY

4SV-1240G-00-00

Unavailable

25

CLIP(3BM)

90467-10135-00

Unavailable

26

HOSE 2

5EB-1243E-00-00

Unavailable

27

CLIP(3BM)

90467-10135-00

Unavailable

28

HOSE,3

5EB-1243F-00-00

Unavailable

29

CLIP(3BM)

90467-10135-00

Unavailable

30

CLIP

90467-09120-00

Unavailable

31

HOSE,3 (L200)

84M-1243F-00-00

Unavailable

32

CLIP (7K7)

90467-11044-00

Unavailable

33

JOINT, HOSE 1

4TV-12581-00-00

Unavailable

34

HOSE 7

5EB-12551-00-00

Unavailable

35

CLIP

90467-09120-00

Unavailable

36

WAY 3(1AF)

90413-07023-00

Unavailable

37

HOSE 8

5EB-12552-00-00

Unavailable

38

CLIP(3BM)

90467-10135-00

Unavailable

39

CLIP (7K7)

90467-11044-00

Unavailable

40

HOSE, 4

5EB-1244G-00-00

Unavailable

41

CLIP(3BM)

90467-10135-00

Unavailable

42

CLAMP

90465-08395-00

Unavailable
