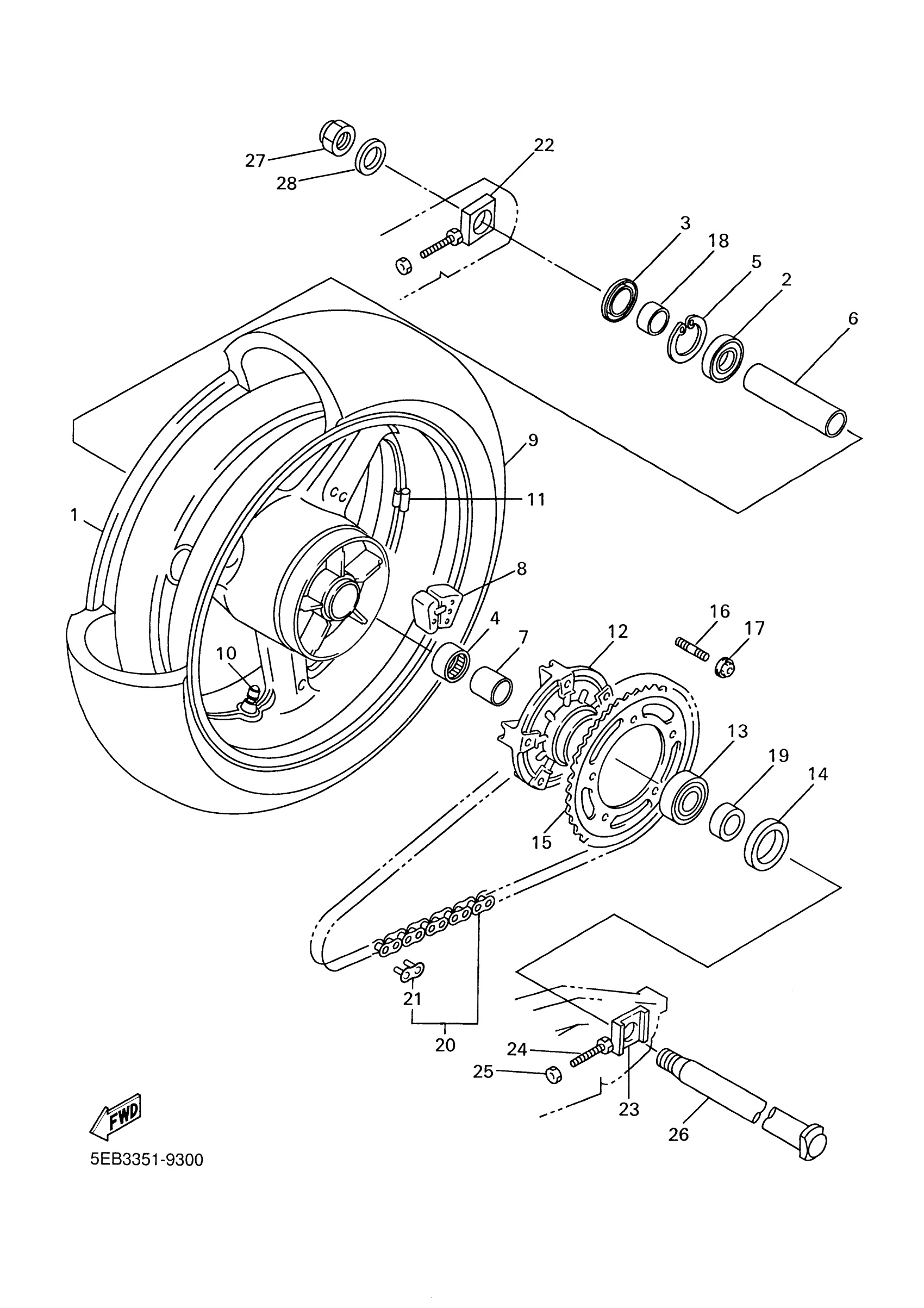

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5EB-25338-00-33

Unavailable

2

BEARING

93306-07806-00

$63.99

3

OIL SEAL

93106-35042-00

$15.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP(26H)

99009-52500-00

$12.49

6

SPACER, BEARING

4XV-25317-00-00

$40.99

7

COLLAR, WHEEL

4XV-25383-00-00

Unavailable

8

DAMPER

5EB-25364-01-00

$25.99

9

180/55ZR17 D207N DL

94118-17011-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5EB-25366-01-00

Unavailable

13

BEARING

93306-27802-00

$71.99

14

OIL SEAL

93106-40041-00

Unavailable

15

SPROCKET, DRIVEN (48T)

5EB-25448-20-00

Unavailable

15

SPROCKET, DRIVEN (46T)

5GV-25446-20-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

COLLAR, WHEEL

5EB-25377-00-00

Unavailable

19

COLLAR, WHEEL

5EB-25376-00-00

Unavailable

20

CHAIN

9Y581-55115-00

Unavailable

21

JOINT, CHAIN(4HD)

94681-55031-00

Unavailable

22

PULLER, CHAIN 1

5EB-25388-00-00

Unavailable

23

PULLER, CHAIN 2

5EB-25389-00-00

Unavailable

24

BOLT(4SR)

90101-08777-00

Unavailable

25

NUT(6TA)

95337-08600-00

Unavailable

26

AXLE, WHEEL

4XV-25381-10-00

Unavailable

27

NUT, SELF-LOCKING

90185-24007-00

Unavailable

28

WASHER, PLATE

90201-25020-00

Unavailable
