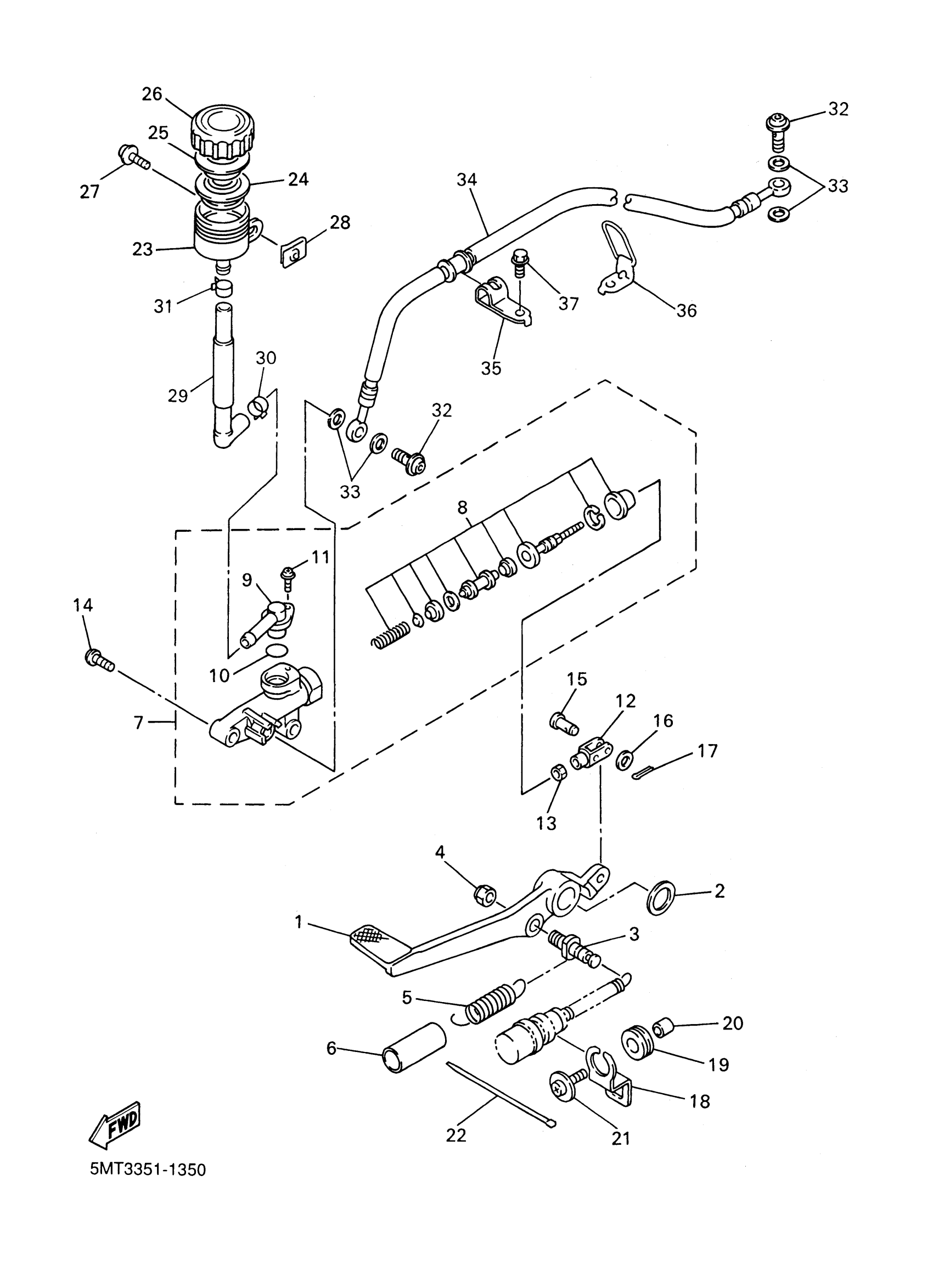

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5EB-27211-01-00

Unavailable

2

WASHER, WAVE(46X)

90206-17084-00

$11.49

3

PIN, PEDAL CRANK

5EB-27813-00-00

Unavailable

4

NUT, U (1X2)

95680-08100-00

$7.49

5

SPRING, TENSION (2X3)

90506-20193-00

$14.99

6

HOSE

90446-15386-00

$7.49

7

RR. MASTER CYLINDER ASSY.

3TU-2583V-01-00

Unavailable

8

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

9

. JOINT

3LN-2582A-00-00

Unavailable

10

O-RING

3LN-2585F-00-00

Unavailable

11

SCREW SET

3LN-2585H-00-00

$2.18

12

JOINT

4XV-27222-01-00

$43.99

13

NUT, HEXAGON SMALL

95317-08700-00

$9.49

14

BOLT, BUTTON

92017-08030-00

$9.49

15

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

16

WASHER(6TA)

92907-06200-00

Unavailable

17

PIN, COTTER

91490-16020-00

Unavailable

18

STAY, STOP SWITCH

5EB-2144G-00-00

Unavailable

19

GROMMET(4SV)

90480-12607-00

Unavailable

20

COLLAR 8121444900

90387-06023-00

Unavailable

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

22

CLAMP

5Y9-12491-00-00

Unavailable

23

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

24

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

25

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

26

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

27

SCREW, PAN

98517-06020-00

Unavailable

28

NUT, SPRING(4ES)

90183-06069-00

Unavailable

29

HOSE, RESERVOIR

5MT-25895-00-00

Unavailable

30

CLIP (5K4)

90467-14057-00

Unavailable

31

CLIP (7K7)

90467-11044-00

Unavailable

32

BOLT, UNION

90401-10172-00

Unavailable

33

WASHER, PLATE(481)

90201-10118-00

Unavailable

34

HOSE, BRAKE

5EB-25874-00-00

Unavailable

35

HOLDER, BRAKE HOSE

5EB-25886-01-00

Unavailable

36

HOLDER, BRAKE HOSE

5MT-25887-01-00

Unavailable

37

. BOLT, FLANGE

95027-06020-00

Unavailable
