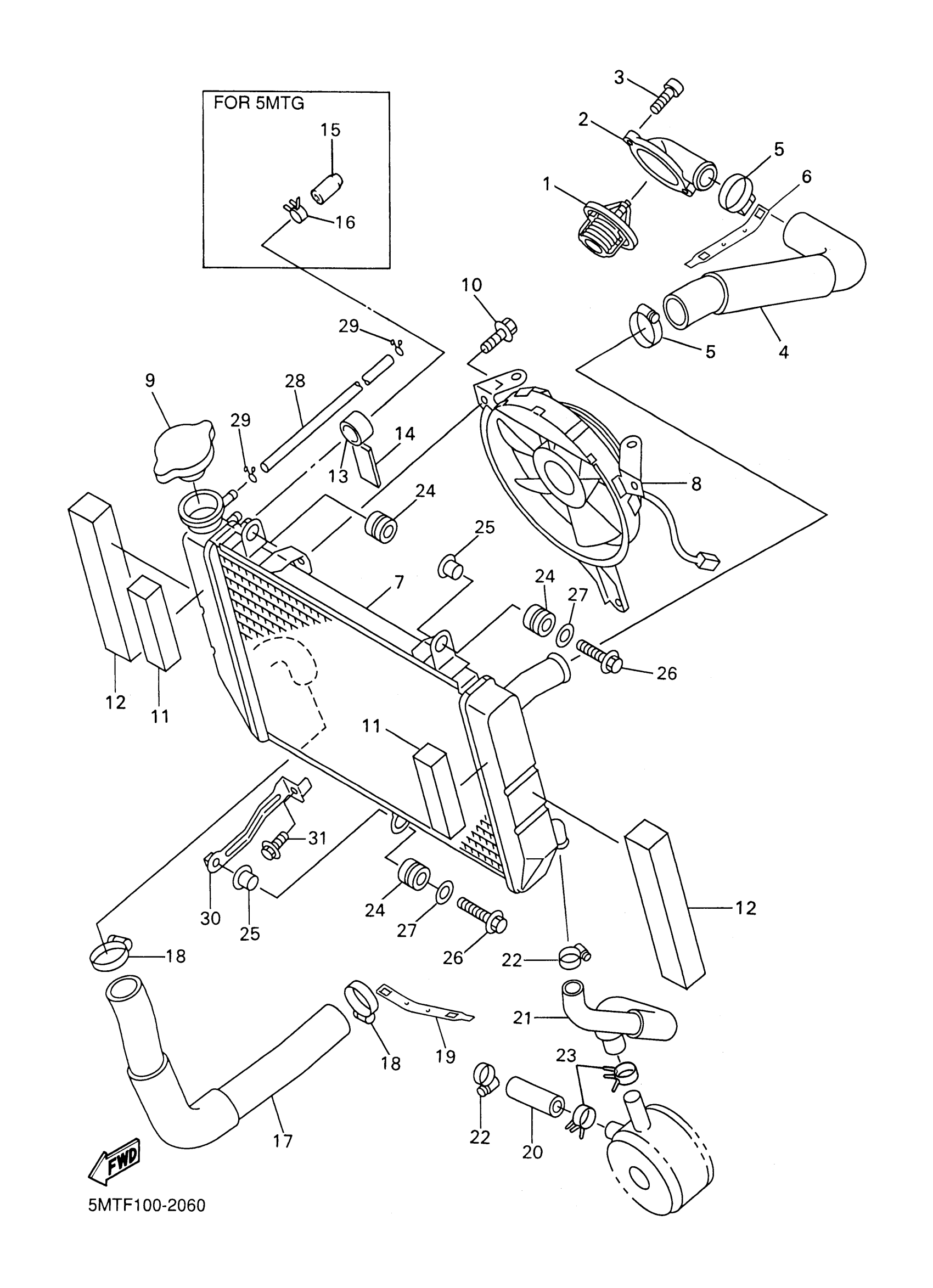

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

3GM-12410-01-00

Unavailable

1

THERMOSTAT ASSY

5EB-12410-00-00

Unavailable

2

COVER, THERMOSTAT

5EB-12413-00-00

$83.99

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

HOSE 3

5EB-12578-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-35001-00

$5.60

6

COVER 2

5GV-1246E-00-00

$4.68

7

RADIATOR ASSY

5EB-12461-00-00

Unavailable

8

BLOWER ASSY

5EB-12405-00-00

Unavailable

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

BOLT, FLANGE

95817-06010-00

$4.73

11

DAMPER, AIR SHROUD 2

5EB-12659-00-00

$7.99

12

DAMPER, AIR SHROUD 3

5EB-12668-00-00

Unavailable

13

PROTECTOR

5EB-12498-00-00

Unavailable

14

COVER 1

3XV-1246A-10-00

Unavailable

15

PLUG, BLIND

16G-13569-00-00

Unavailable

16

CLIP

90467-11028-00

Unavailable

17

HOSE 4

5EB-12579-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-35001-00

$5.60

19

COVER 2

5GV-1246E-00-00

$4.68

20

HOSE 5

5EB-12588-00-00

Unavailable

21

HOSE 6

5EB-12589-00-00

Unavailable

22

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

23

CLIP (4V3)

90467-19051-00

Unavailable

24

GROMMET (29L)

90480-15363-00

Unavailable

25

COLLAR 437216330000

90387-07391-00

Unavailable

26

BOLT, FLANGE

95817-06025-00

Unavailable

27

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

28

HOSE (L700)

90445-087K6-00

Unavailable

29

CLIP(42X)

90467-07093-00

Unavailable

30

BRACKET 1

5EB-1244E-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable
