Description

Price

1

OIL COOLER ASSY

5EB-13470-00-00

Unavailable

2

BOLT, UNION

5EB-12822-00-00

$74.99

3

GASKET

5EB-13475-00-00

$18.49

4

O-RING

5JW-13473-00-00

$42.99

5

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

6

BOLT, UNION

90401-20007-00

Unavailable

7

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

8

O-RING (22U)

93210-15566-00

$7.49

9

COVER, STRAINER

5EB-13417-00-00

Unavailable

10

GASKET, STRAINER COVER

5EB-13414-00-00

$18.49

11

BOLT,SOCKET

91317-06025-00

$5.60

12

BOLT,SOCKET

91317-06025-00

$5.60

13

PIN, DOWEL

91808-17032-00

$5.60

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

GASKET

214-11198-01-00

$3.17

16

CLAMP

90465-10020-00

Unavailable

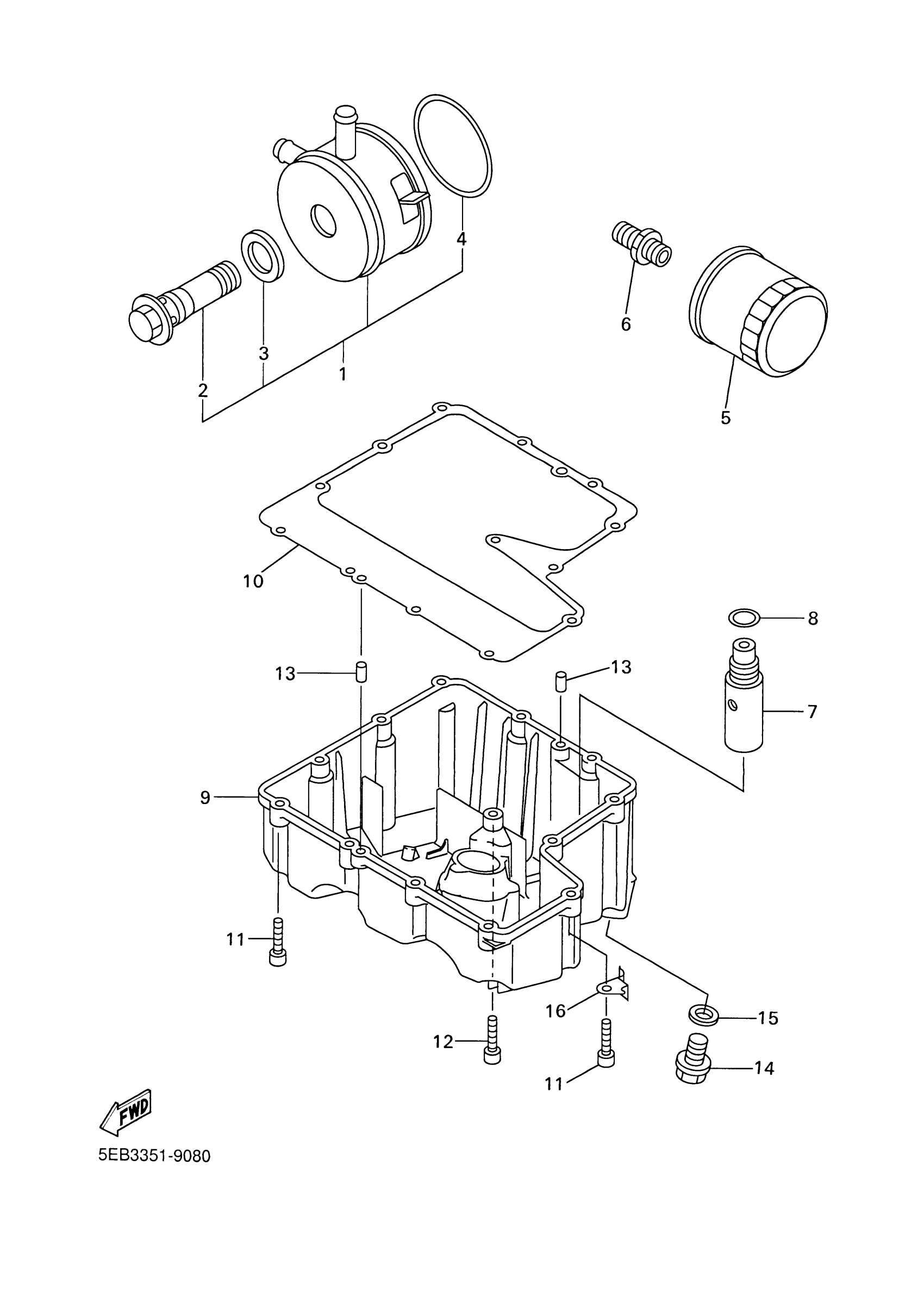

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 OIL CLEANER Diagram

OIL COOLER ASSY

BOLT, UNION

GASKET

O-RING

ELEMENT ASSY, OIL CLEANER

BOLT, UNION

RELIEF VALVE ASSY

O-RING (22U)

COVER, STRAINER

GASKET, STRAINER COVER

BOLT,SOCKET

BOLT,SOCKET

PIN, DOWEL

PLUG, STRAIGHT SCREW(3FA)

GASKET

CLAMP
