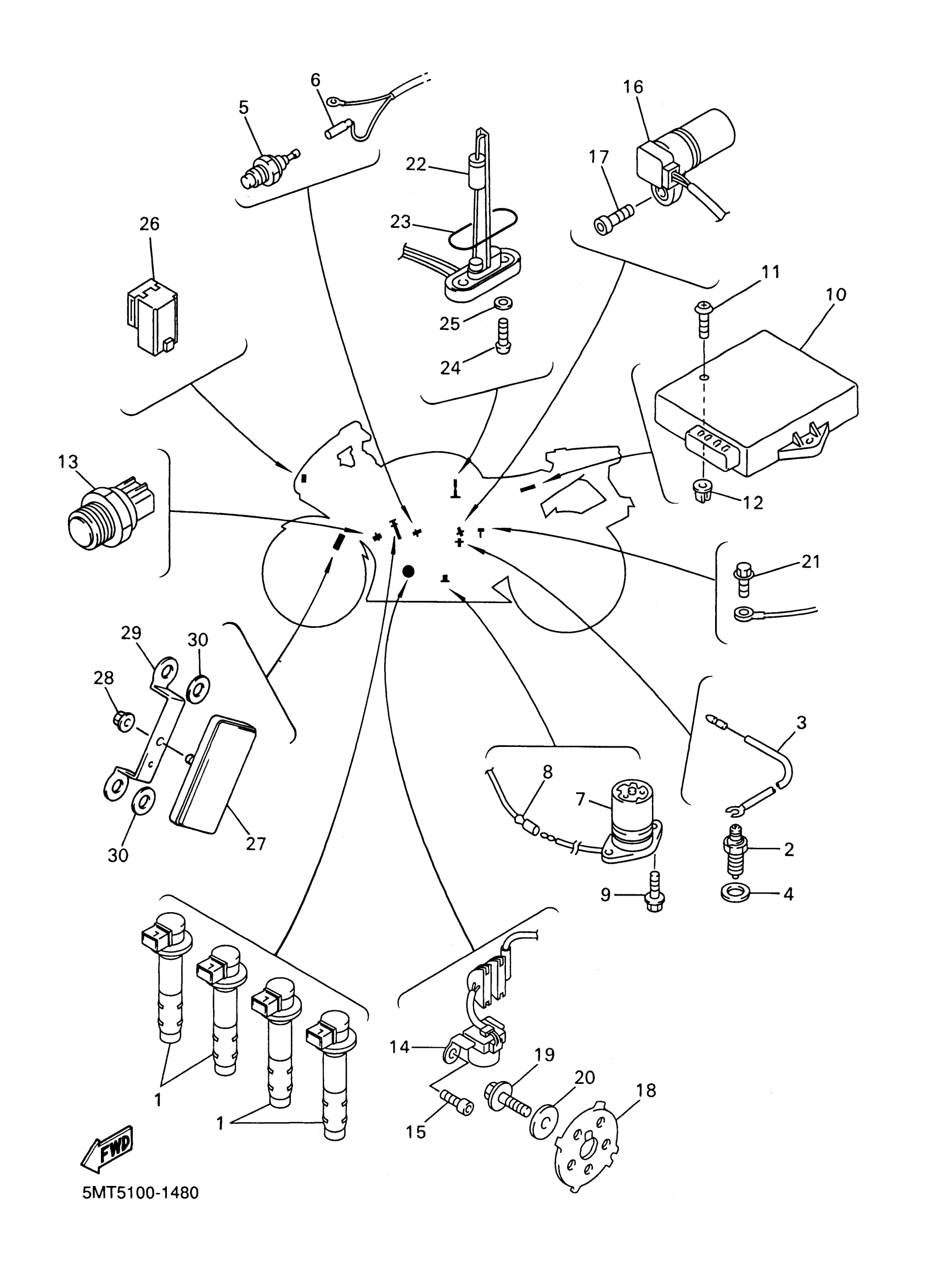

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

5EB-82310-00-00

Unavailable

2

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

3

WIRE, LEAD

5MT-82541-00-00

Unavailable

4

GASKET (5R6)

90430-10171-00

$3.18

5

THERMO UNIT

11H-83591-00-00

$105.99

6

WIRE, LEAD

5EB-82541-21-00

Unavailable

7

OIL LEVEL GAUGE ASSY

5EB-85720-00-00

Unavailable

8

WIRE, SUB LEAD

5EB-82509-00-00

Unavailable

9

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

10

C.D.I. UNIT ASSY

5MT-85540-10-00

Unavailable

10

C.D.I. UNIT ASSY

5MT-85540-40-00

Unavailable

11

SCREW, TAPPING

97707-60020-00

Unavailable

12

PLUG(4BP)

90338-08226-00

$2.17

13

THERMO SWITCH ASSY

5EB-82560-01-00

Unavailable

14

PICK-UP ASSY

5MT-81670-01-00

Unavailable

15

BOLT,SOCKET

91317-06012-00

Unavailable

16

SENSOR, SPEED

5EB-83755-02-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

Unavailable

18

ROTOR

5EB-81673-00-00

Unavailable

18

ROTOR

5GV-81673-00-00

Unavailable

19

BOLT, WASHER BASED

90105-08113-00

Unavailable

20

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

21

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

22

SENDER UNIT ASSY, FUEL METER

1UF-85752-03-00

Unavailable

23

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

24

SCREW, PAN

98517-06020-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

RELAY ASSY

5JJ-81950-11-00

Unavailable

27

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

28

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

29

BRACKET, REFLECTOR 2

5BN-85122-00-00

Unavailable

30

WASHER PLATE (3L6)

90201-08759-00

Unavailable
