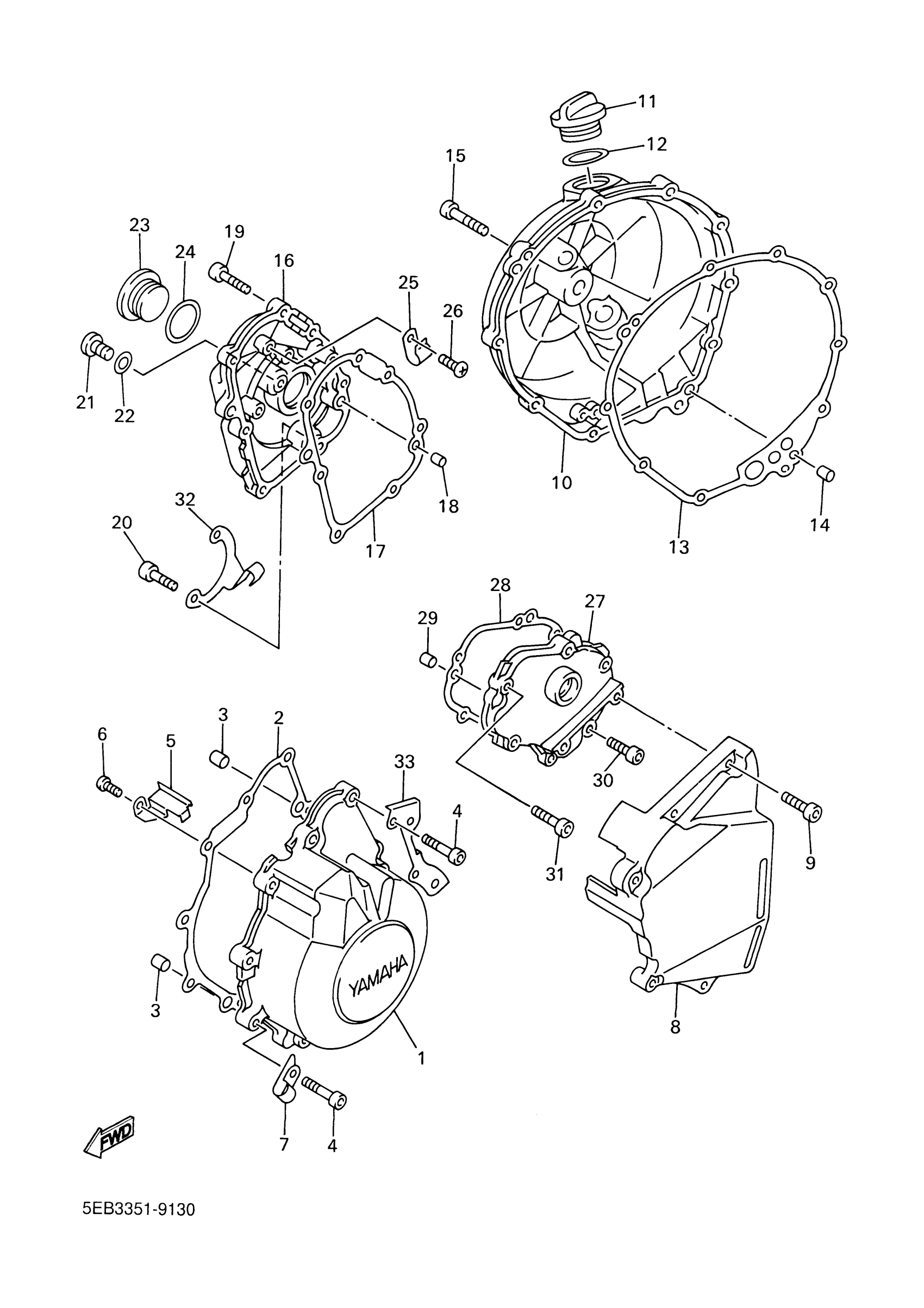

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5EB-15411-00-00

$153.99

2

GASKET, CRANKCASE COVER 1

5EB-15451-00-00

$14.49

3

PIN, DOWEL

99530-08012-00

Unavailable

4

BOLT,SOCKET HEAD

91314-06025-00

$8.49

5

CLAMP 2

5EB-15484-00-00

Unavailable

6

SCREW, PAN

98517-06008-00

$8.49

7

CLAMP

90461-10004-00

Unavailable

8

COVER, CHAIN CASE

5EB-15418-00-00

Unavailable

9

BOLT,SOCKET HEAD

91314-06025-00

$8.49

10

COVER, CRANKCASE 2

5EB-15421-01-00

Unavailable

11

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

12

O-RING(1KT)

93210-27778-00

$8.49

13

GASKET, CRANKCASE COVER 2

5EB-15461-00-00

$19.99

14

PIN, DOWEL

93608-17263-00

$2.92

15

BOLT,SOCKET HEAD

91314-06025-00

$8.49

16

COVER, OIL PUMP

5EB-15416-00-00

Unavailable

17

GASKET, OIL PUMP COVER 1

5EB-15456-00-00

Unavailable

18

PIN, DOWEL

99530-08012-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06025-00

$8.49

21

BOLT, BUTTON HEAD

92014-08012-00

Unavailable

22

. GASKET

90430-08143-00

Unavailable

23

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

Unavailable

24

O-RING (341)

93210-32172-00

Unavailable

25

CLAMP(3KM)

90462-10182-00

Unavailable

26

SCREW, PAN

98517-06008-00

$8.49

27

COVER, 2

5EB-15425-00-00

Unavailable

28

GASKET, 2

5EB-15463-00-00

Unavailable

29

PIN, DOWEL

99530-08012-00

Unavailable

30

BOLT, SOCKET

91314-06018-00

Unavailable

31

BOLT,SOCKET HEAD

91314-06025-00

$8.49

32

HOLDER, CLUTCH CABLE

5EB-15441-00-00

Unavailable

33

STAY, CRANKCASE COVER 1

5EB-1541A-00-00

Unavailable
