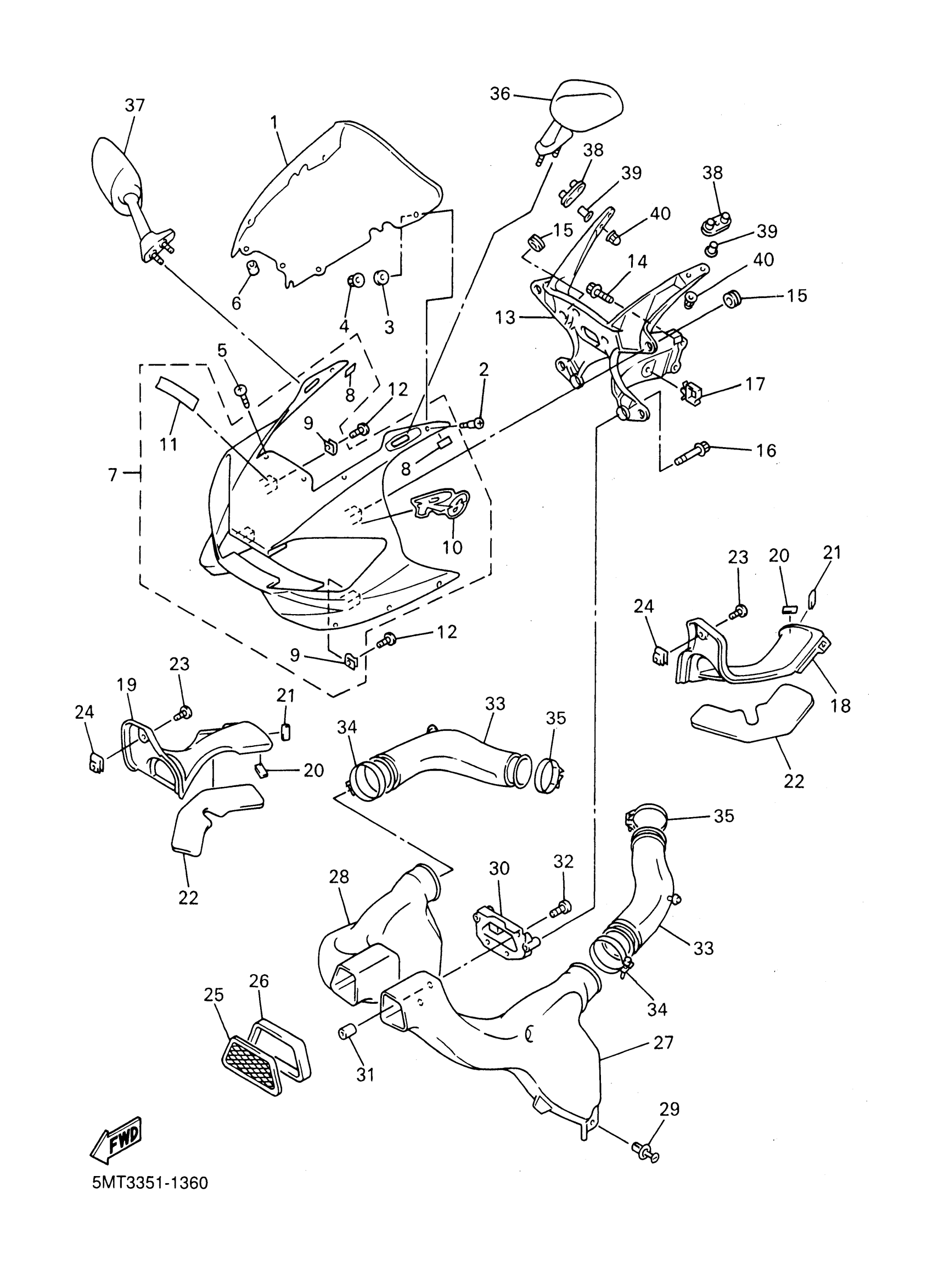

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 COWLING 1 Diagram
#
1
WINDSHIELD
5EB-28381-11-00
Unavailable
7
BODY, FRONT UPPER 1
5EB-W283G-50-4X
Unavailable
7
BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-Y283G-B0-P0
Unavailable
8
LABEL
3TU-2178A-00-00
Unavailable
9
NUT, SPRING(3YX)
90183-05074-00
Unavailable
10
. EMBLEM (VIVID RED COCKTAIL 1)
5EB-28315-40-00
Unavailable
10
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5EB-28315-80-00
Unavailable
13
STAY 1
5EB-28356-01-00
Unavailable
14
BOLT, FLANGE(4PU)
95814-08025-00
Unavailable
15
DAMPER
4XV-83513-00-00
Unavailable
16
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
17
CLAMP (1J7)
90464-16025-00
Unavailable
18
PANEL, CONSOLE 1
5EB-2837L-00-00
Unavailable
19
PANEL, CONSOLE 2
5EB-2837M-00-00
Unavailable
20
DAMPER 2
51Y-21639-00-00
Unavailable
21
DAMPER
34M-2139X-00-00
Unavailable
22
DAMPER 5
5EB-2837J-00-00
Unavailable
23
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
24
NUT, SPRING
90183-051A0-00
Unavailable
25
GRILL, AIR INTAKE 1
5EB-2837N-00-00
Unavailable
26
DAMPER
5EB-28371-00-00
Unavailable
27
DUCT 2
5EB-2838R-00-00
Unavailable
28
DUCT 3
5EB-2838T-00-00
Unavailable
29
RIVET(4JH)
90269-07076-00
Unavailable
30
JOINT
5EB-28342-01-00
Unavailable
32
SCREW, PAN HEAD
98507-05014-00
Unavailable
33
JOINT, SURGE TANK 1
5EB-1446F-00-00
Unavailable
34
HOSE CLAMP ASSY
90450-64004-00
Unavailable
35
HOSE CLAMP ASSY
90450-62006-00
Unavailable
36
REAR VIEW MIRROR ASSY(LEFT)
5MT-26280-00-00
Unavailable
37
REAR VIEW MIRROR ASSY(RIGHT)
5MT-26290-00-00
Unavailable
38
PLATE, MIRROR FITTING 1
5EB-26298-01-00
Unavailable
39
COLLAR(4JW)
90387-0602X-00
Unavailable
40
NUT, CROWN(1FN)
90176-06055-00
Unavailable
