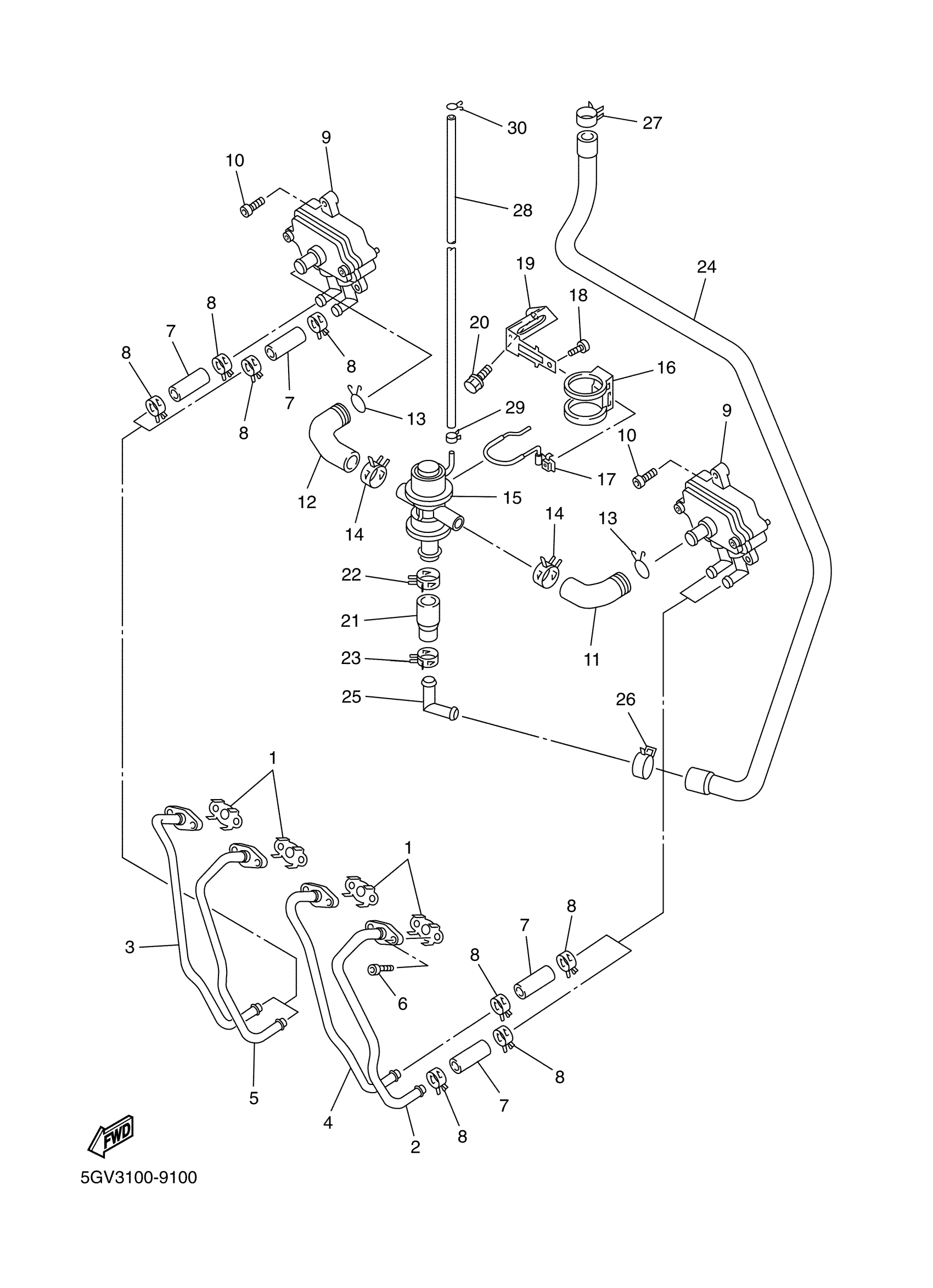

Yamaha YZFR6PC (YZFR6 CA) 5MTG 2002 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

GASKET, MUFFLER

5GV-14815-00-00

Unavailable

2

PIPE 1

5GV-14871-00-00

Unavailable

3

PIPE 3

5GV-14873-00-00

Unavailable

4

PIPE 4

5GV-14874-00-00

Unavailable

5

PIPE 5

5GV-14875-00-00

Unavailable

6

BOLT,SOCKET

91380-06016-00

Unavailable

7

HOSE, BEND 1

5GV-14881-00-00

Unavailable

8

CLIP (4X7)

90467-15054-00

$8.49

9

REED VALVE ASSY

5GV-14808-00-00

Unavailable

10

BOLT,SOCKET

91317-06020-00

Unavailable

11

HOSE, BEND 2

5GV-14882-00-00

Unavailable

12

HOSE, BEND 3

5GV-14883-00-00

Unavailable

13

CLIP(62Y)

90467-15M14-00

Unavailable

14

CLIP

90467-21068-00

$7.49

15

AIR CUT VALVE ASS'Y

5GV-14840-00-00

Unavailable

16

DAMPER

5GV-14844-00-00

Unavailable

17

BRACKET

5GV-14849-00-00

Unavailable

18

SCREW, PAN

98507-06010-00

Unavailable

19

STAY

5GV-14834-00-00

Unavailable

20

BOLT, FLANGE

95817-08014-00

Unavailable

21

HOSE, BEND 5

4MM-14885-00-00

Unavailable

22

CLIP (10V)

90467-23067-00

Unavailable

23

CLIP (4V3)

90467-19051-00

Unavailable

24

HOSE, BEND 4

5GV-14884-00-00

Unavailable

25

PIPE 2

5GV-14872-00-00

Unavailable

26

CLIP (4V3)

90467-19051-00

Unavailable

27

CLIP(3TB)

90467-17128-00

Unavailable

28

HOSE (L770)

90445-090G9-00

Unavailable

29

CLIP(41W)

90467-08092-00

Unavailable

30

CLIP (8L2)

90467-08017-00

Unavailable
