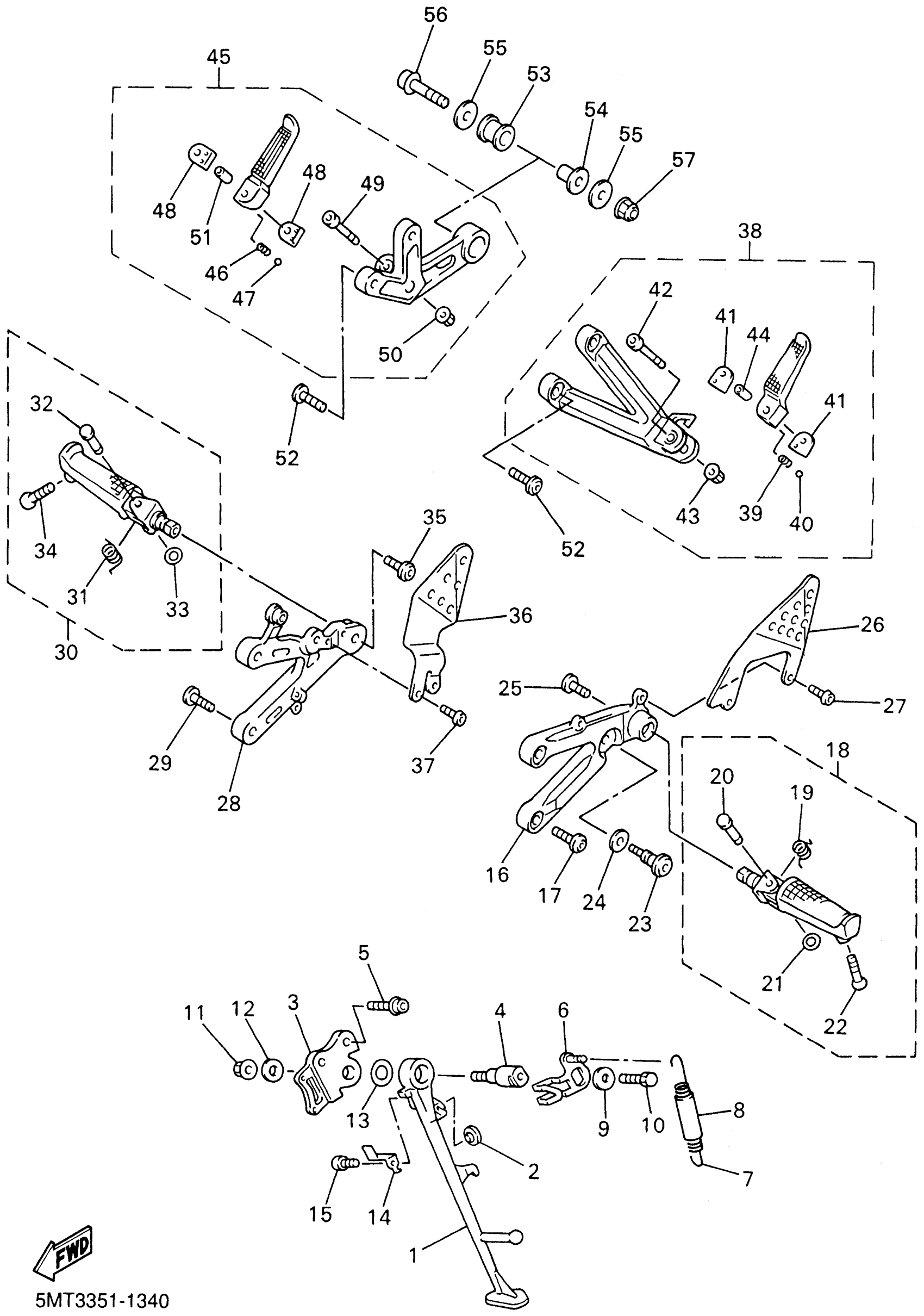

Yamaha YZFR6NC (YZFR6 CA) 5MT6 2001 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5EB-27311-00-00

Unavailable

2

STOPPER, MAIN STAND

128-27114-00-00

$7.99

3

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

4

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-10012-00

$26.99

6

HOOK, SIDE STAND

5GV-27352-00-00

Unavailable

7

SPRING, TENSION

90506-18003-00

Unavailable

8

HOSE (L60)

90445-19002-00

$7.49

9

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

10

BOLT, HEXAGON

97017-08020-00

$9.49

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

12

WASHER, PLATE(47X)

90201-101J1-00

$8.49

13

WASHER, PLATE (22F)

90201-146F9-00

$7.49

14

LINK, SIDE STAND

5JJ-27315-00-00

$9.99

15

BOLT,SOCKET

91317-06012-00

$8.49

16

BRACKET 2

5EB-27442-00-00

Unavailable

17

BOLT

90109-085G6-00

Unavailable

18

FRONT FOOTREST ASSY (LEFT)

5MT-27410-01-00

Unavailable

19

SPRING, TORSION

90508-183B9-00

Unavailable

20

PIN(2AL)

90243-08029-00

Unavailable

21

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

22

BOLT

90109-08177-00

Unavailable

23

BOLT

4BP-27434-11-00

Unavailable

24

WASHER (853)

90201-08326-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

26

PLATE 1

5EB-27445-01-00

Unavailable

27

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

28

BRACKET 3

5EB-27443-00-00

Unavailable

29

BOLT

90109-085G6-00

Unavailable

30

FRONT FOOTREST ASSY (RIGHT)

5MT-27420-01-00

Unavailable

31

SPRING, TORSION

90508-184B0-00

Unavailable

32

PIN(2AL)

90243-08029-00

Unavailable

33

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

34

BOLT

90109-08177-00

Unavailable

35

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

36

PLATE 2

5EB-27446-01-00

Unavailable

37

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

38

REAR FOOTREST ASSY 1

5EB-27430-00-00

Unavailable

39

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

40

BALL

93501-04011-00

Unavailable

41

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

42

BOLT, SOCKET

91314-06045-00

Unavailable

43

NUT, U FLANGE

95604-06200-00

Unavailable

44

COLLAR (24R)

90387-064H8-00

Unavailable

45

REAR FOOTREST ASSY 2

5EB-27440-00-00

Unavailable

46

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

47

BALL

93501-04011-00

Unavailable

48

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

49

BOLT, SOCKET

91314-06045-00

Unavailable

50

NUT, U FLANGE

95604-06200-00

Unavailable

51

COLLAR (24R)

90387-064H8-00

Unavailable

52

BOLT

90109-085G6-00

Unavailable

53

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

54

COLLAR (2H7)

90387-10636-00

Unavailable

55

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

56

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

57

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19
