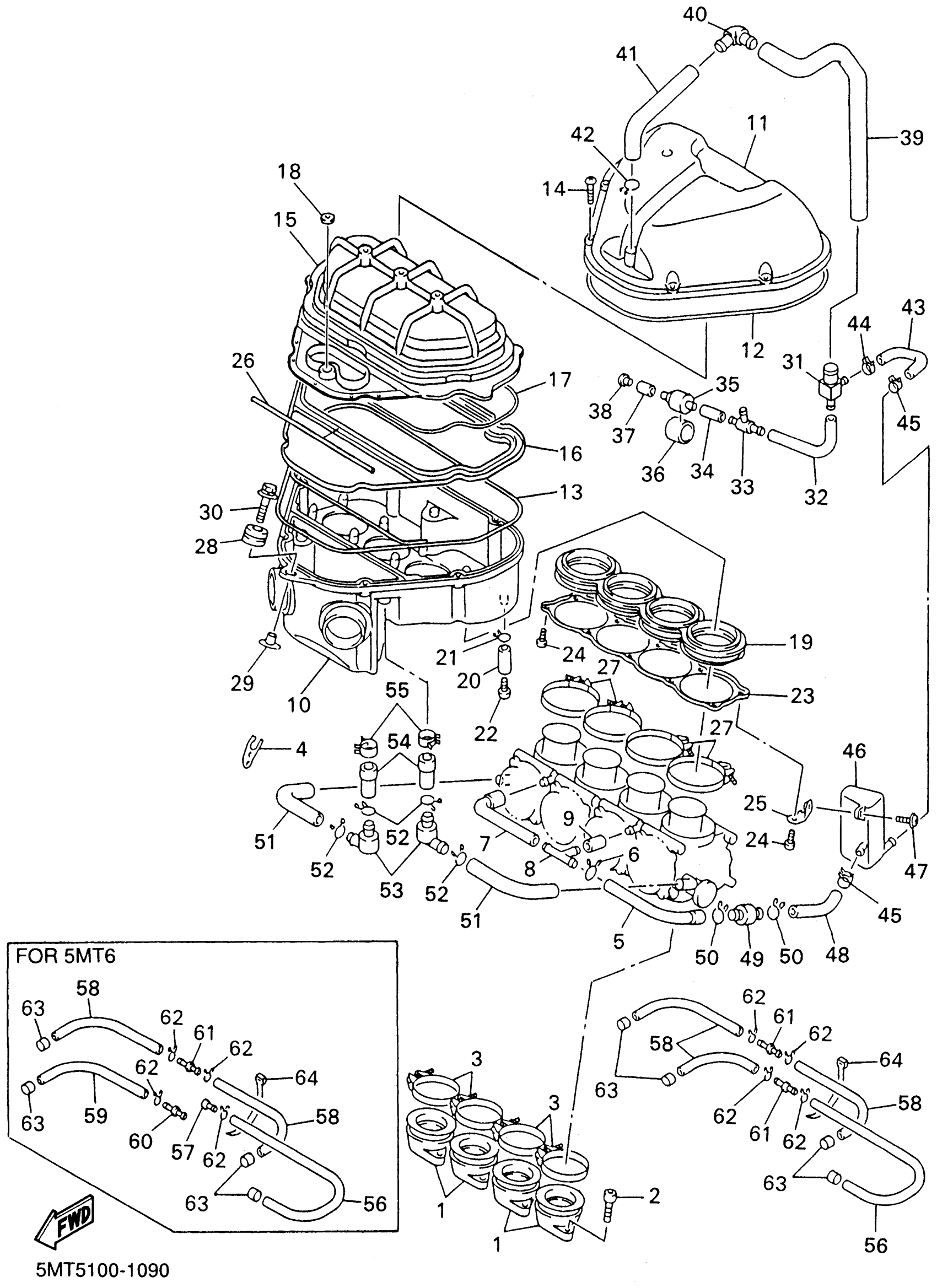

Yamaha YZFR6NC (YZFR6 CA) 5MT6 2001 INTAKE Diagram
#
2
BOLT,SOCKET
91317-06020-00
Unavailable
4
STAY
5EB-14413-00-00
Unavailable
5
PIPE
5EB-14349-00-00
Unavailable
7
PIPE 1
5EB-14348-00-00
Unavailable
8
WAY 3(47X)
90413-10016-00
Unavailable
9
HOSE (L30)
90445-11795-00
Unavailable
10
CASE, AIR CLEANER 1
5EB-14411-01-00
Unavailable
11
CASE, AIR CLEANER 2
5EB-14421-00-00
Unavailable
13
SEAL
5EB-14462-00-00
Unavailable
15
ELEMENT ASSY, AIR CLEANER
5EB-14450-02-00
Unavailable
16
PARTITION, AIR CLEANER CASE
5EB-1441F-01-00
Unavailable
18
SEAL
5EB-1446R-10-00
Unavailable
19
JOINT, AIR CLEANER 1
5EB-14453-00-00
Unavailable
20
HOSE (L30)
90445-11795-00
Unavailable
21
CLIP
90467-100A1-00
Unavailable
22
PLUG (1HX)
90338-08174-00
Unavailable
23
PLATE
5EB-14477-00-00
Unavailable
24
SCREW, PAN TAP.2 SLIT
97707-50620-00
Unavailable
25
PANEL 1
5EB-1441L-00-00
Unavailable
26
SEAL
5EB-14467-00-00
Unavailable
27
HOSE CLAMP ASSY
90450-68094-00
Unavailable
28
GROMMET(3AA)
90480-12497-00
Unavailable
29
COLLAR
90387-06159-00
Unavailable
30
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
31
WAY 3
90413-18033-00
Unavailable
32
PIPE
4TV-14349-00-00
Unavailable
33
WAY 3
90413-09032-00
Unavailable
34
HOSE (L70)
90445-112E0-00
Unavailable
35
CUP, DRAIN
4TV-14226-00-00
Unavailable
36
HOSE (L35)
90445-307K7-00
Unavailable
37
HOSE (L30)
90445-11795-00
Unavailable
38
PLUG (1HX)
90338-08174-00
Unavailable
39
PIPE
5EB-14197-01-00
Unavailable
40
PIPE, JOINT
5EB-14485-00-00
Unavailable
41
PIPE
5EB-14466-00-00
Unavailable
42
CLIP
90467-20M15-00
Unavailable
43
PIPE
5EB-14419-01-00
Unavailable
44
CLIP(42G)
90467-16098-00
Unavailable
45
CLIP (4X7)
90467-15054-00
Unavailable
46
CHAMBER, AIR
5EB-13581-01-00
Unavailable
47
SCREW, WITH WASHER(52W)
90159-05121-00
Unavailable
48
PIPE
5EB-1444J-01-00
Unavailable
49
SEAL
4X7-14467-01-00
Unavailable
51
PIPE
5EB-1443J-00-00
Unavailable
53
NET, FILTER 2
3LN-24515-00-00
Unavailable
54
PIPE
5EB-14148-00-00
Unavailable
55
CLIP(3TB)
90467-17128-00
Unavailable
56
HOSE (L770)
90445-090G9-00
Unavailable
56
HOSE (L770)
90445-090G9-00
Unavailable
57
PLUG
90338-05240-00
Unavailable
58
HOSE (L770)
90445-090G9-00
Unavailable
58
HOSE (L770)
90445-090G9-00
Unavailable
59
HOSE (L770)
90445-090G9-00
Unavailable
60
PIPE
4MM-13582-00-00
Unavailable
61
PLUG
90338-05271-00
Unavailable
61
CLIP
90467-09120-00
Unavailable
62
CLIP (8L2)
90467-08017-00
Unavailable
63
CLIP
90467-09120-00
Unavailable
64
CLAMP(4FM)
90464-15195-00
Unavailable
