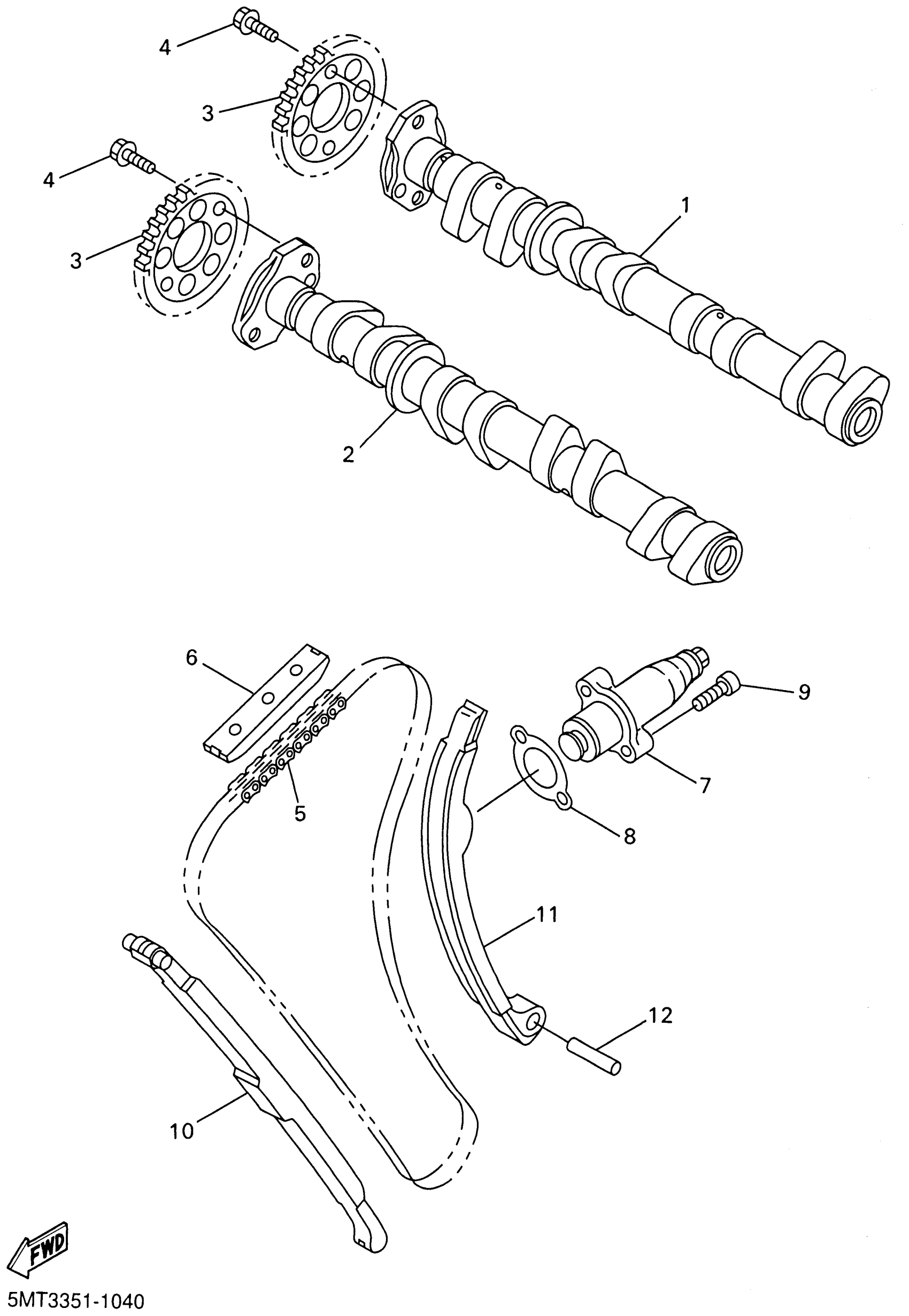

Yamaha YZFR6NC (YZFR6 CA) 5MT6 2001 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5EB-12171-00-00

Unavailable

1

CAMSHAFT 1

5GV-12171-00-00

Unavailable

2

CAMSHAFT 2

5EB-12181-00-00

Unavailable

2

CAMSHAFT 2

5GV-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

5EB-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-49120-00

$32.59

6

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

7

TENSIONER ASSY.

5SL-12210-11-00

Unavailable

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

9

BOLT,SOCKET

91317-06025-00

$1.91

10

DAMPER, CHAIN 1

5EB-12251-01-00

Unavailable

11

DAMPER, CHAIN 2

5EB-12252-11-00

Unavailable

12

PIN, DOWEL (8V8)

93607-44190-00

$13.30
