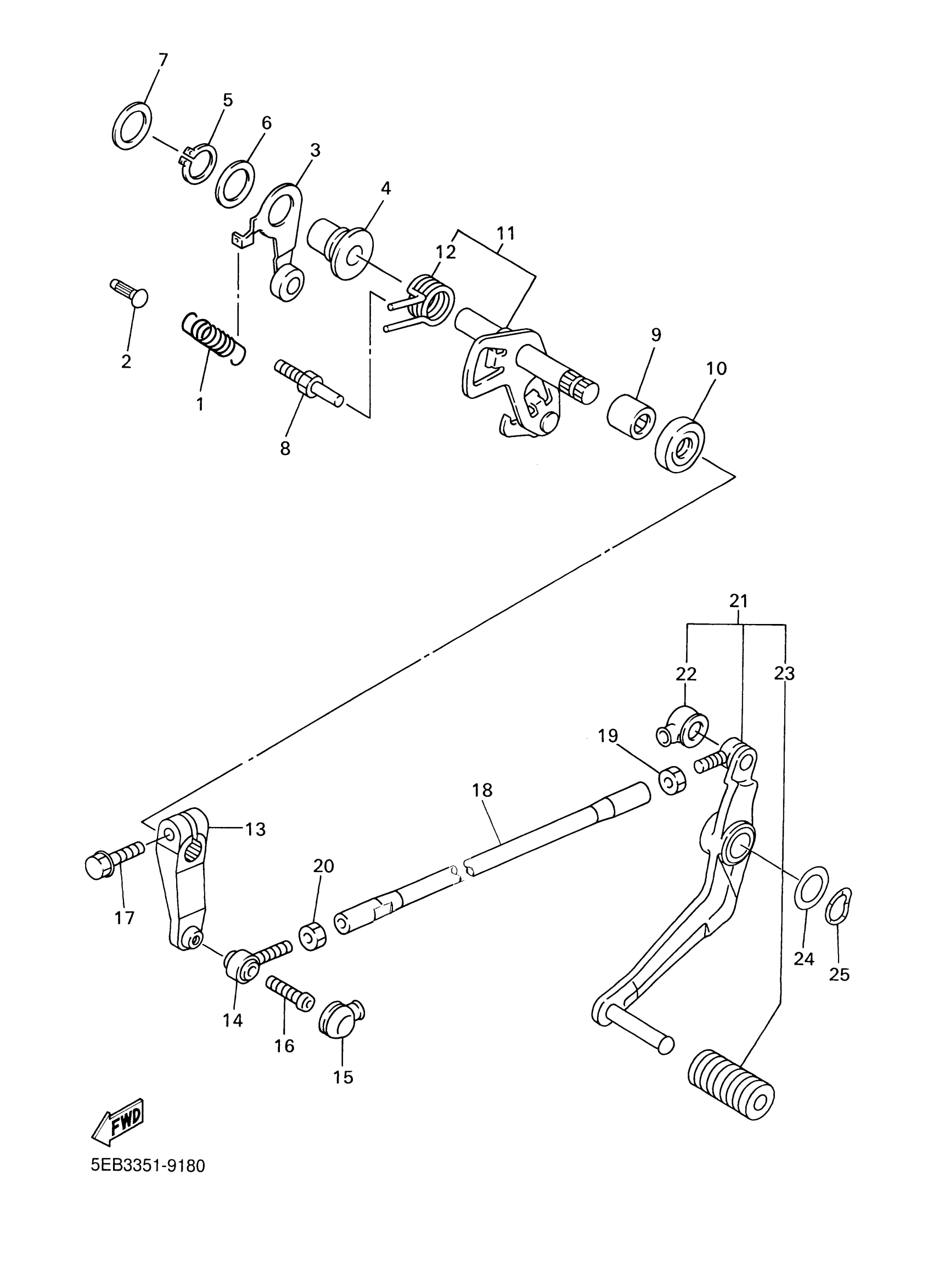

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-14003-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

. STOPPER LEVER ASSY

4XV-18140-00-00

Unavailable

4

COLLAR(3MA)

90387-127V3-00

Unavailable

5

CIRCLIP(1EY)

99009-17400-00

$4.73

6

WASHER, PLATE (30X)

90201-177G4-00

$9.49

7

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

8

STOPPER, SCREW

5VK-18127-00-00

Unavailable

9

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

$36.99

10

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

11

SHIFT SHAFT ASSY

5EB-18101-10-00

Unavailable

12

SPRING, TORSION

90508-295B2-00

$9.49

13

ARM, SHIFT

5EB-18112-01-00

$103.99

14

JOINT, ROD 1

5JJ-18116-00-00

Unavailable

15

COVER, DUST

4XV-18154-00-00

$7.99

16

BOLT, BUTTON

92017-06020-00

Unavailable

17

BOLT, FLANGE

95814-06020-00

Unavailable

18

ROD, SHIFT

5EB-18115-00-00

Unavailable

19

NUT(1KT)

90170-08358-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

SHIFT PEDAL ASSY

5EB-18110-10-00

Unavailable

22

COVER, DUST

2H9-18154-00-00

Unavailable

23

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

24

WASHER, PLATE

90201-12013-00

Unavailable

25

WASHER, WAVE (17W)

90206-12074-00

Unavailable
