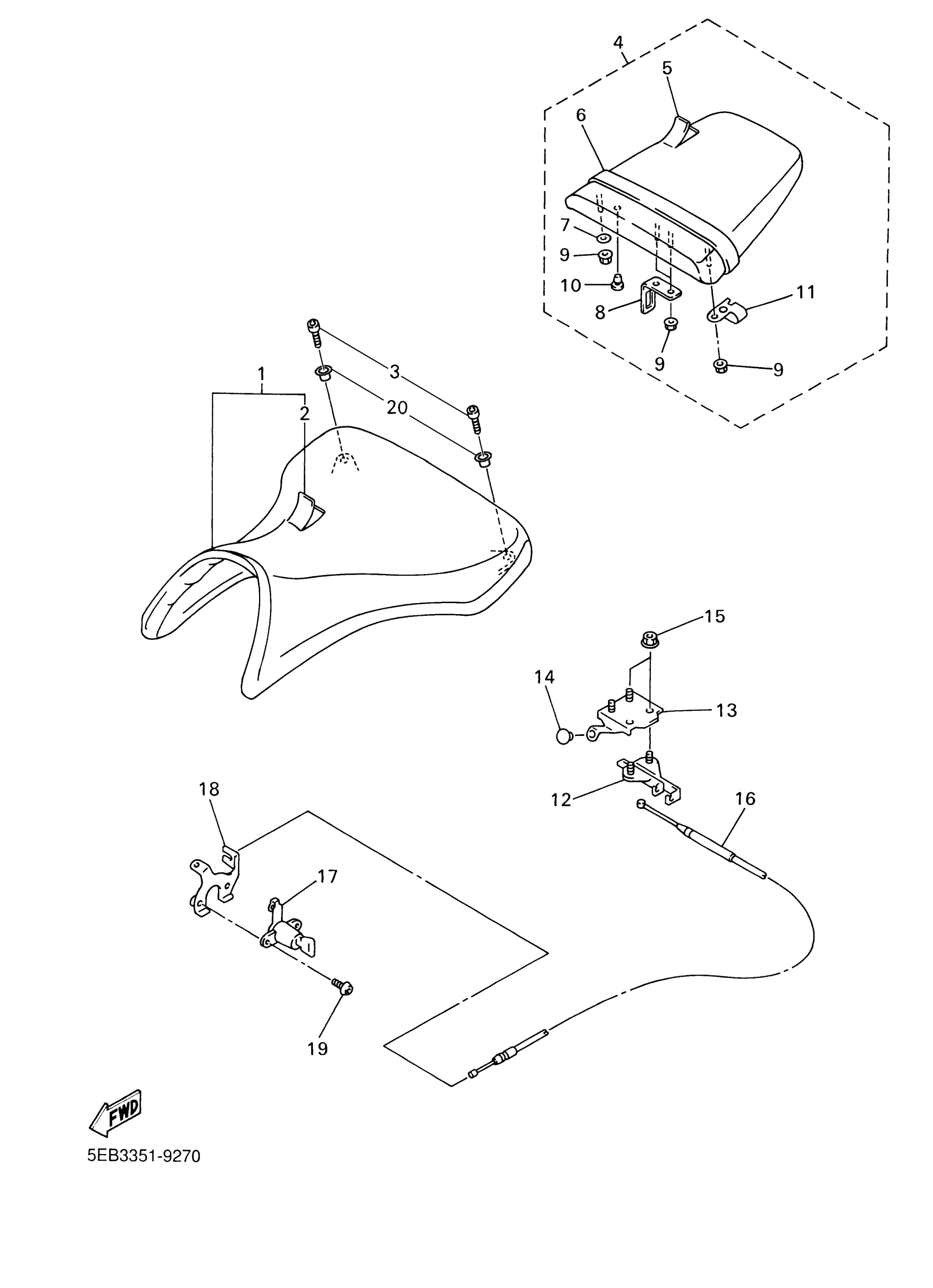

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 SEAT Diagram

SINGLE SEAT ASSY

5EB-24710-00-00

Unavailable

. COVER, SEAT

5EB-2470F-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

TANDEM SEAT ASSY

5EB-24750-01-00

Unavailable

COVER, TANDEM SEAT

5EB-24751-00-00

Unavailable

. BAND, SEAT

5EB-24734-00-00

Unavailable

WASHER, PLATE

90201-06M02-00

Unavailable

BRACKET, SEAT

4HM-24728-00-00

$11.99

NUT, FLANGE(7NB)

95780-06500-00

$2.60

PLUG(1NL)

90338-07180-00

$7.49

. BRACKET, SEAT

5EB-24728-00-00

Unavailable

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

PLATE

4XV-24792-00-00

Unavailable

PLUG 288833190000

90338-07043-00

$8.49

NUT, FLANGE(4MV)

95707-06500-00

$1.23

CABLE, SEAT LOCK

5EB-2478E-00-00

Unavailable

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

STAY, LOCK

4XV-2117K-00-00

Unavailable

SCREW(4HM)

90149-06308-00

Unavailable

COLLAR

90387-06066-00

Unavailable
