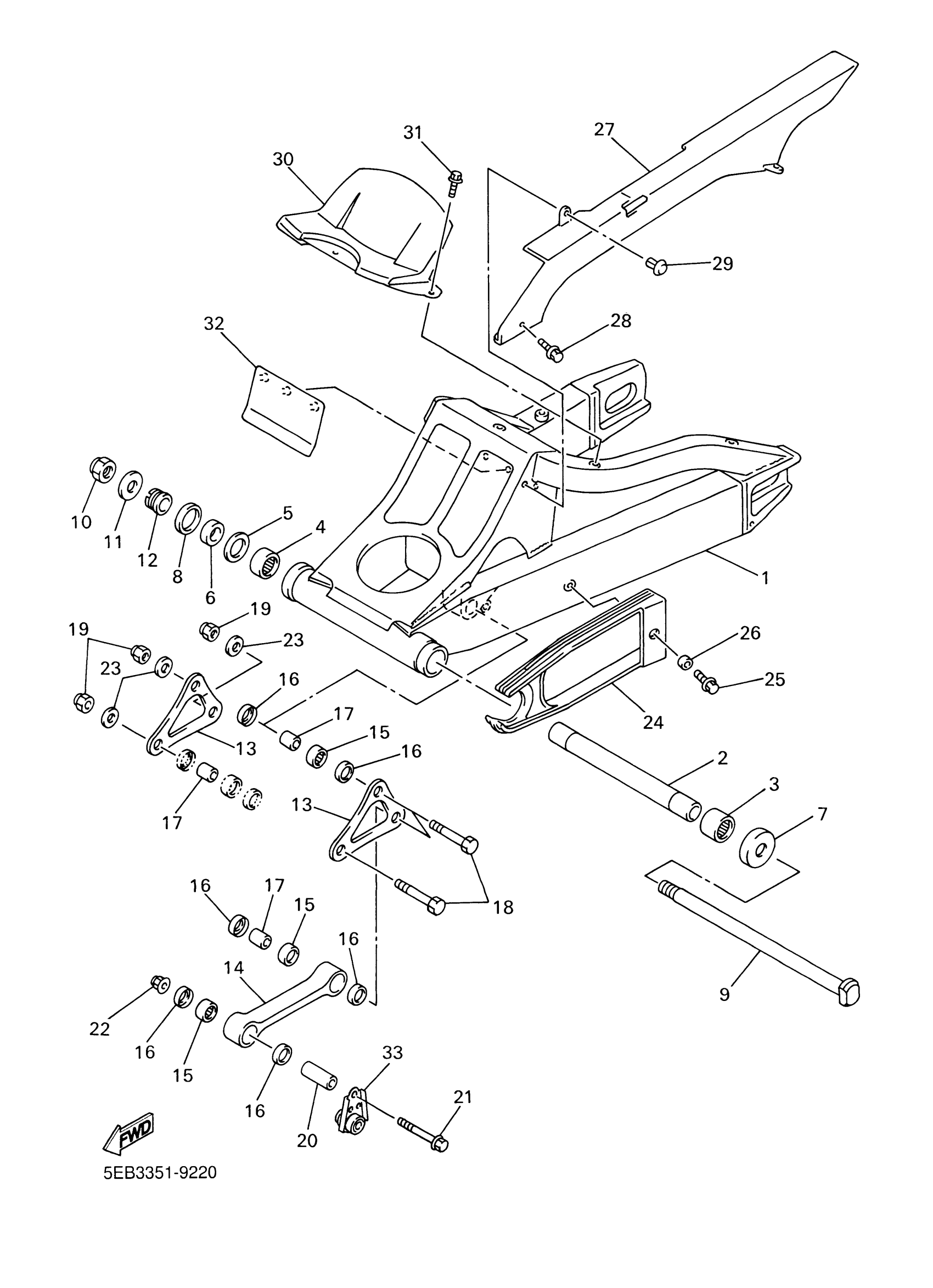

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
5EB-22110-01-00
Unavailable
6
BUSH 1
5EB-22123-00-00
Unavailable
7
COVER, THRUST 1
3FV-22128-00-00
Unavailable
12
BOLT
5EB-22125-00-00
Unavailable
13
ARM, RELAY
5EB-2217A-00-00
Unavailable
14
ARM 1
5EB-2217M-00-00
Unavailable
16
OIL SEAL
93109-17071-00
Unavailable
17
COLLAR(3TJ)
90387-127W0-00
Unavailable
18
BOLT
90101-10709-00
Unavailable
19
NUT, U
95617-10100-00
Unavailable
20
COLLAR
90387-1012B-00
Unavailable
21
B0LT,FLANGE (1KT)
90105-10323-00
Unavailable
22
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
23
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
24
SEAL, GUARD
5EB-22151-00-00
Unavailable
25
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
26
COLLAR
90387-06106-00
Unavailable
27
CASE, CHAIN
5EB-22311-01-00
Unavailable
28
BOLT, WITH WASHER
90119-06226-00
Unavailable
29
RIVET(4JH)
90269-07076-00
Unavailable
30
REAR FENDER COMP.
5EB-21650-00-00
Unavailable
31
BOLT, WITH WASHER
90119-06226-00
Unavailable
32
FLAP
30X-21621-00-00
Unavailable
33
STAY, MUFFLER 2
5EB-21446-00-00
Unavailable
