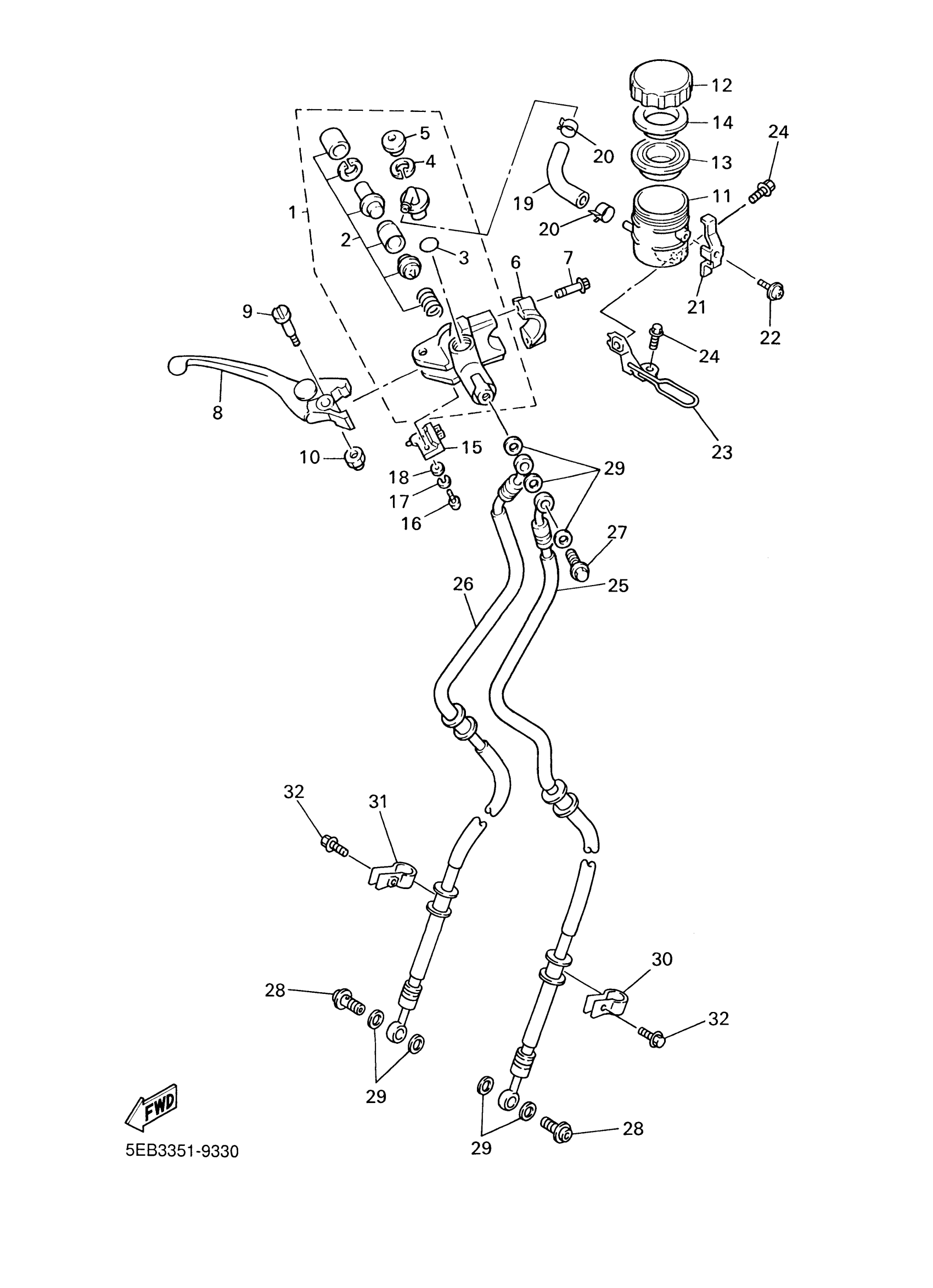

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4SV-W2587-10-00

$227.99

2

CYLINDER KIT, MASTER

4SV-W0041-00-00

Unavailable

3

O-RING (22U)

93210-15566-00

$7.49

4

CIRCLIP

2VN-25866-00-00

$6.99

5

COVER, DUST

3FV-2589A-00-00

$20.99

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT

5EB-26332-00-00

$7.99

8

LEVER 2

5EB-83922-01-00

$81.99

9

BOLT, LEVER

3FV-2589F-00-00

$16.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

TANK, RESERVOIR

3FV-25894-00-00

$60.99

12

CAP, RESERVOIR

3GM-25852-50-00

$29.99

13

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

14

BUSHING, DIAPHRAGM

2J2-25855-50-00

$5.49

15

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

16

SCREW, PAN HEAD

98511-04012-00

Unavailable

17

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

HOSE

5EB-2582F-00-00

Unavailable

20

CLIP(3FV)

90467-12085-00

Unavailable

21

HOLDER

3FV-2589G-00-00

Unavailable

22

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

23

STAY

5EB-26292-01-00

Unavailable

24

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

25

HOSE, BRAKE 1

5EB-25872-00-00

Unavailable

26

HOSE, BRAKE 2

5EB-25873-00-00

Unavailable

27

BOLT, UNION

90401-10038-00

Unavailable

28

BOLT, UNION

90401-10172-00

Unavailable

29

WASHER, PLATE(481)

90201-10118-00

Unavailable

30

HOLDER, BRAKE HOSE 1

3EN-25875-20-00

Unavailable

31

HOLDER, BRAKE HOSE 2

2R8-25876-20-00

Unavailable

32

. BOLT, FLANGE

95027-06020-00

Unavailable
