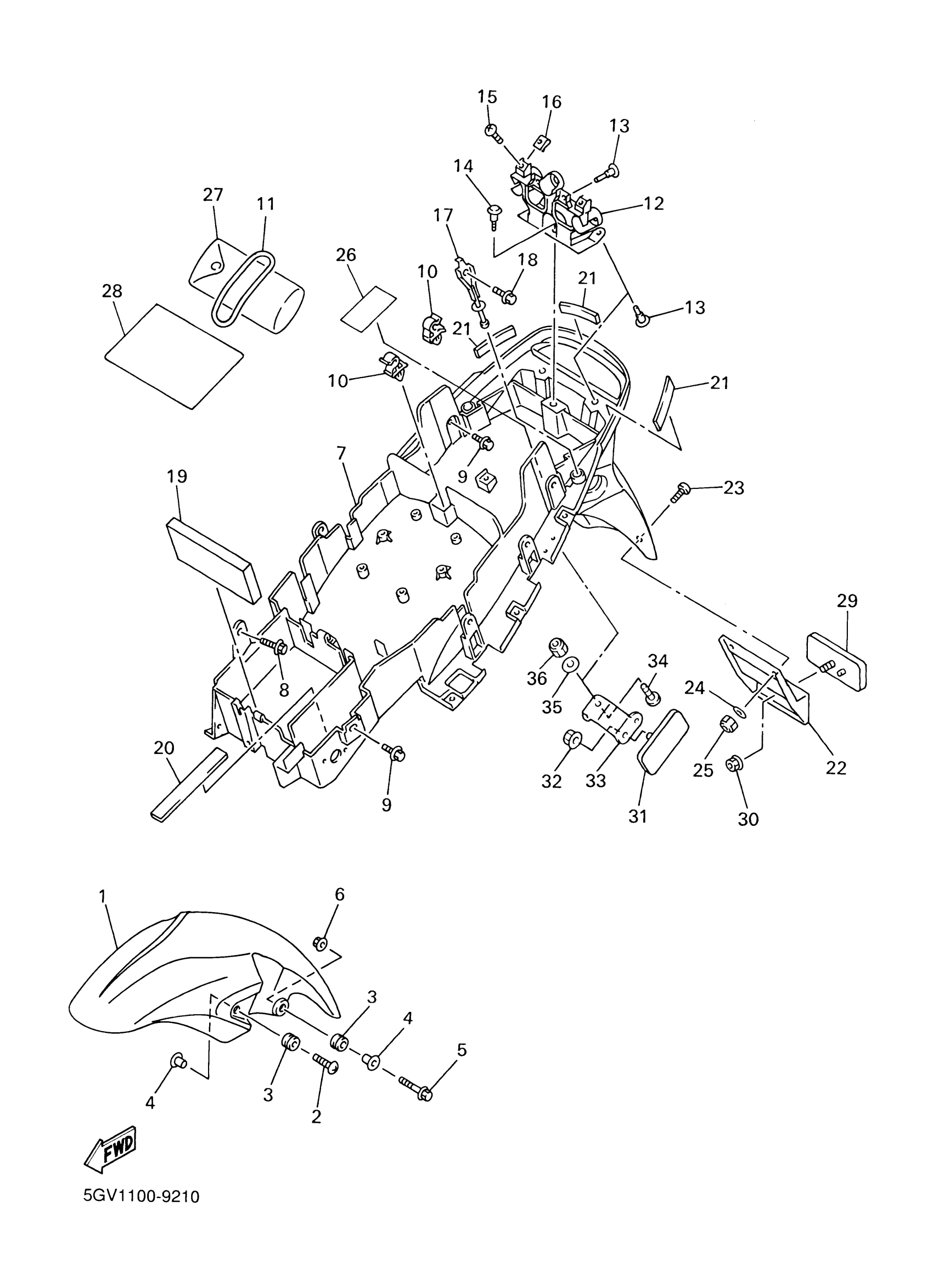

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 FENDER Diagram
#
1
FENDER, FRONT (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
5EB-21511-00-P0
Unavailable
1
FENDER, FRONT (DEEP PURPLISH BLUE METALLIC C)
5EB-21511-00-P1
Unavailable
7
FENDER, REAR
5EB-21611-00-00
Unavailable
11
BAND, TOOL
4XV-21376-00-00
Unavailable
12
BRACKET, TAILLIGHT
5EB-2117E-00-00
Unavailable
14
PLUG
90338-08220-00
Unavailable
15
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
16
NUT, SPRING(3GM)
90183-05061-00
Unavailable
17
WIRE
5EB-21654-00-00
Unavailable
18
BOLT, WASHER BASED HEXAGON 1L9
90105-06069-00
Unavailable
19
DAMPER 2
4XV-21639-00-00
Unavailable
20
DAMPER (L.H)
1AE-2834E-00-00
Unavailable
21
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
22
BRACKET, REFLECTOR 1
4XV-85132-00-00
Unavailable
23
SCREW(3HE)
90149-04278-00
Unavailable
24
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
25
NUT, U (7LY)
95617-04100-00
Unavailable
26
PLATE, EPA 2(CALIFORNIA)
5EB-2179R-10-00
Unavailable
26
PLATE, EPA 1(NON CALIFORNIA)
5EB-2179V-10-00
Unavailable
27
TOOL KIT
5EB-28100-00-00
Unavailable
28
MAT 1
5EB-14733-00-00
Unavailable
29
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
31
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
32
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
33
BRACKET, REAR STAY
4XV-21688-00-00
Unavailable
34
SCREW(3HE)
90149-04278-00
Unavailable
35
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
36
NUT, U (7LY)
95617-04100-00
Unavailable
