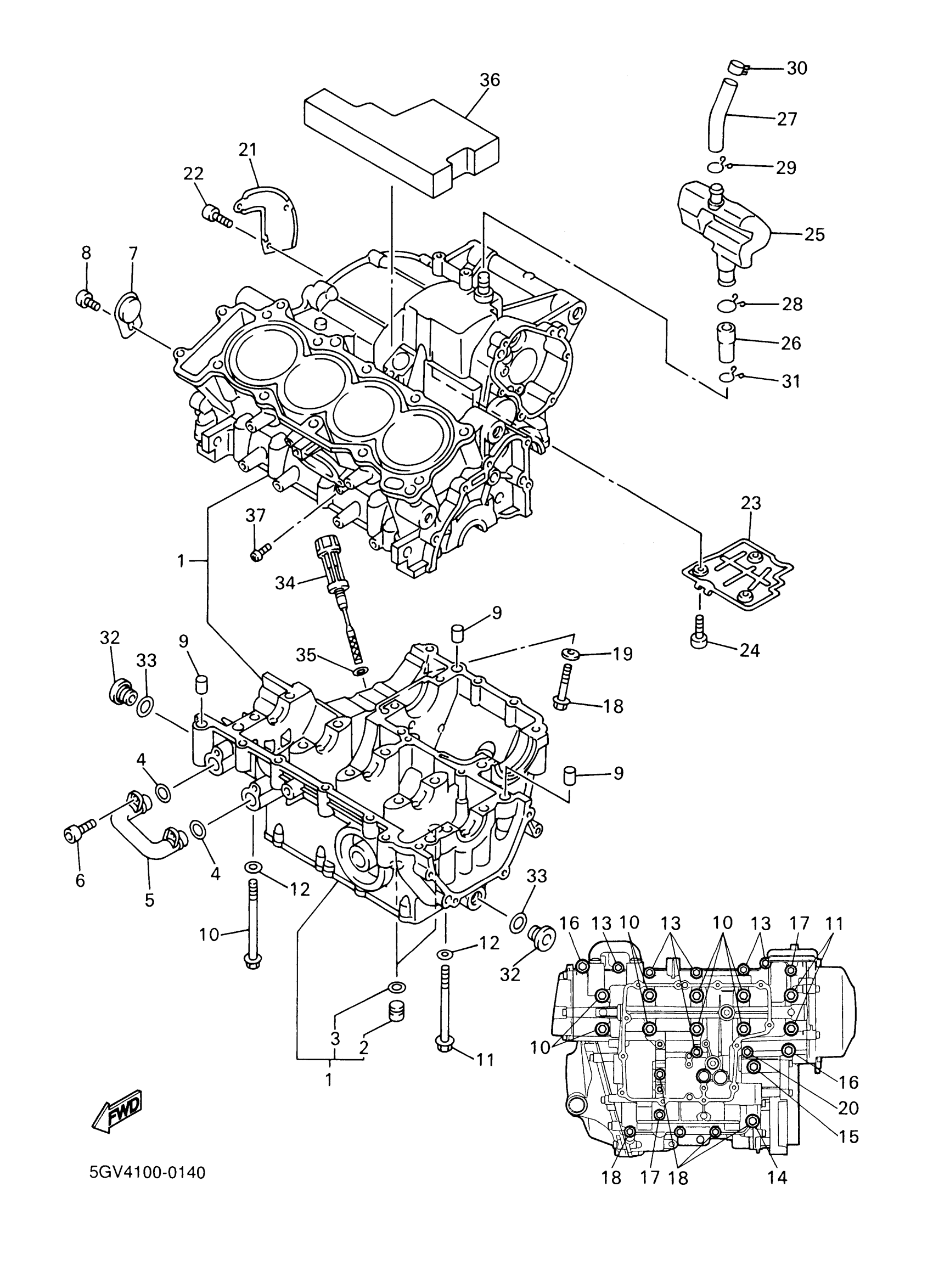

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
5EB-15100-01-00
Unavailable
7
PLUG
5EB-15189-00-00
Unavailable
11
BOLT, FLANGE
90105-086A9-00
Unavailable
16
BOLT
90109-065G3-00
Unavailable
17
BOLT, FLANGE
95817-06065-00
Unavailable
18
BOLT, FLANGE
95817-06045-00
Unavailable
19
GASKET 256113960000
90430-06014-00
Unavailable
20
BOLT, WASHER BASED
90105-06006-00
Unavailable
21
PLATE, BREATHER
5EB-11165-01-00
Unavailable
22
SCREW(1KT)
90149-06228-00
Unavailable
23
PLATE, BREATHER 2
5EB-11145-00-00
Unavailable
24
BOLT,SOCKET
91317-06012-00
Unavailable
25
BREATHER
5EB-15371-00-00
Unavailable
26
PIPE, BREATHER 2
5EB-15393-00-00
Unavailable
27
PIPE, BREATHER
5EB-15373-00-00
Unavailable
28
CLIP
90467-18196-00
Unavailable
29
CLIP(62Y)
90467-15M14-00
Unavailable
30
CLIP (4X7)
90467-15054-00
Unavailable
31
CLIP (371)
90467-14015-00
Unavailable
32
PLUG
36Y-15189-01-00
Unavailable
33
O-RING(1L9)
93210-16325-00
Unavailable
34
PLUG, OIL LEVEL
5EB-15362-10-00
Unavailable
35
O-RING (1J7)
93210-09350-00
Unavailable
36
DAMPER, ENGINE MOUNT 1
5EB-15316-00-00
Unavailable
37
SCREW, BINDING
98907-06012-00
Unavailable
