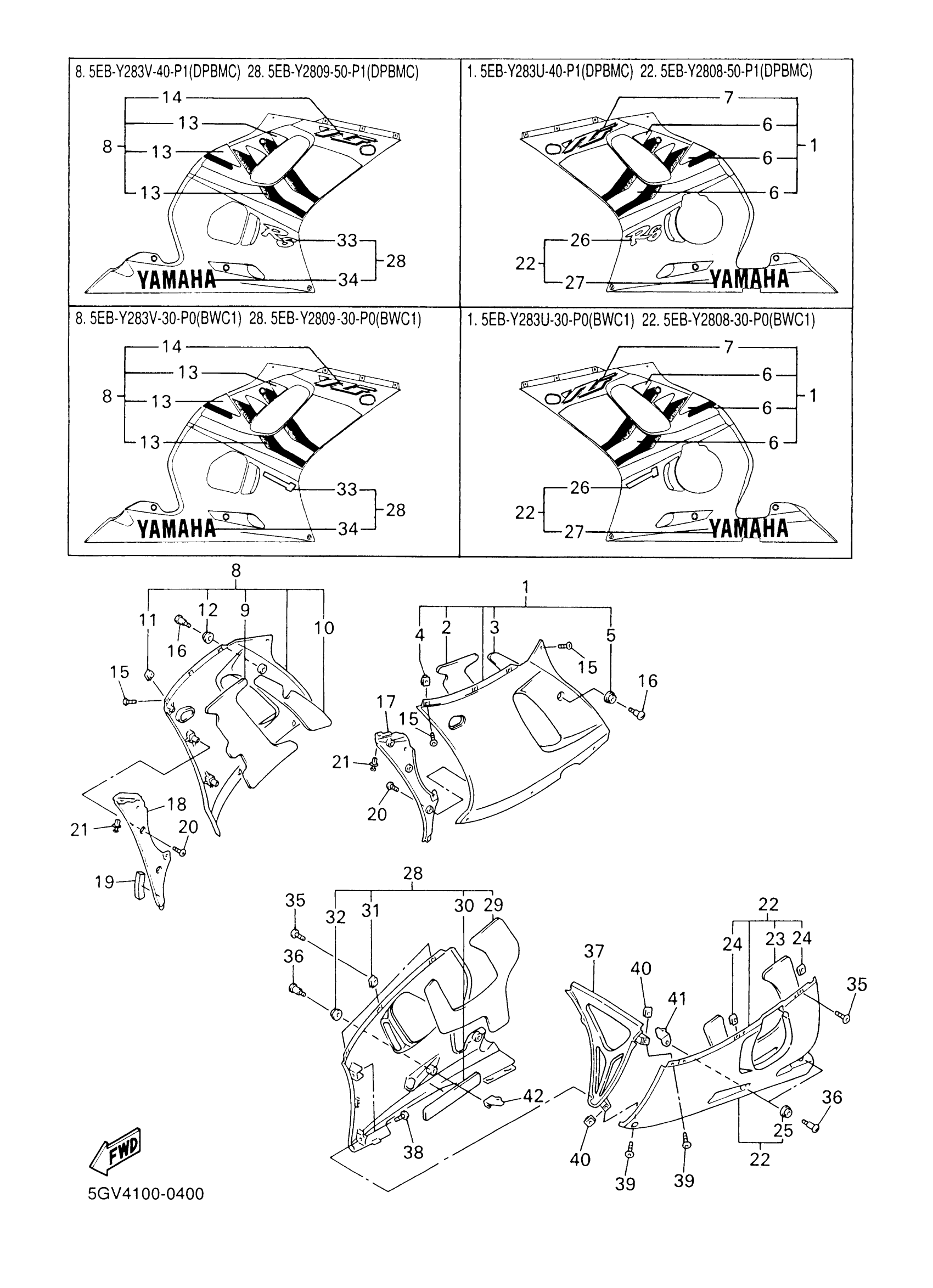

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (BLUISH WHITE COCKTAIL 1)
5EB-Y283U-30-P0
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-Y283U-40-P1
Unavailable
2
. DAMPER 1
5EB-28415-00-00
Unavailable
3
. DAMPER 2
5EB-28416-00-00
Unavailable
6
. GRAPHIC SET, LOWER COVER 1 (BLUISH WHITE COCKTAIL 1)
5EB-28301-20-00
Unavailable
6
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-28301-30-00
Unavailable
7
. EMBLEM 1 (BLUISH WHITE COCKTAIL 1)
5EB-2839H-30-00
Unavailable
7
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-2839H-40-00
Unavailable
8
PANEL ASSEMBLY 2 (BLUISH WHITE COCKTAIL 1)
5EB-Y283V-30-P0
Unavailable
8
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5EB-Y283V-40-P1
Unavailable
9
. DAMPER 1
5EB-28415-10-00
Unavailable
10
. DAMPER 2
5EB-28416-10-00
Unavailable
13
. GRAPHIC SET, LOWER COVER 2 (BLUISH WHITE COCKTAIL 1)
5EB-28303-20-00
Unavailable
13
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5EB-28303-30-00
Unavailable
14
. EMBLEM 1 (BLUISH WHITE COCKTAIL 1)
5EB-2839H-30-00
Unavailable
14
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5EB-2839H-40-00
Unavailable
15
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
16
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
17
PANEL, INNER 1
5EB-2836K-00-00
Unavailable
18
PANEL, INNER 2
5EB-2836L-00-00
Unavailable
19
LINING, SHROUD 8
8U9-77268-00-00
Unavailable
20
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
21
RIVET(4JH)
90269-07076-00
Unavailable
22
COVER ASSY, UNDER
5EB-W2808-30-P0
Unavailable
22
COVER ASSY, UNDER
5EB-W2808-50-P1
Unavailable
23
. DAMPER
5EB-2834E-00-00
Unavailable
26
. EMBLEM (BLUISH WHITE COCKTAIL 1)
5EB-28328-20-00
Unavailable
26
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5EB-28328-40-00
Unavailable
27
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
28
COVER ASSY 2, UNDER
5EB-W2809-30-P0
Unavailable
28
COVER ASSY 2, UNDER
5EB-Y2809-50-P1
Unavailable
29
. DAMPER
5EB-2834F-00-00
Unavailable
30
. SEAT 1
5EB-2838G-00-00
Unavailable
33
. EMBLEM (BLUISH WHITE COCKTAIL 1)
5EB-28328-20-00
Unavailable
33
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5EB-28328-40-00
Unavailable
34
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
35
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
36
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
37
PANEL, INNER 3
5EB-2836M-00-00
Unavailable
38
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
39
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
41
BRACKET 1
5EB-2836A-00-00
Unavailable
42
BRACKET 2
5EB-2836E-00-00
Unavailable
