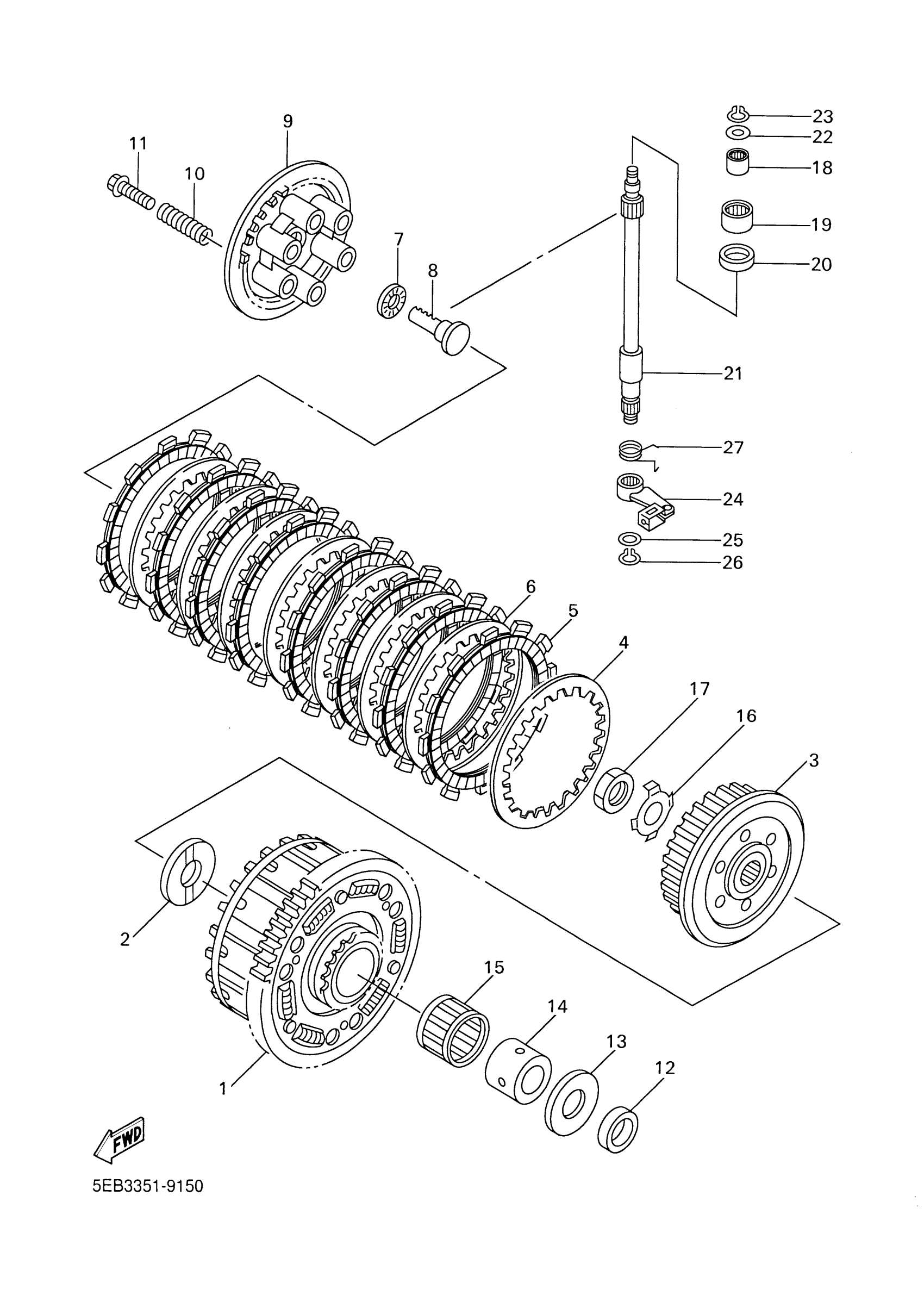

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

5SL-16150-10-00

Unavailable

2

PLATE, THRUST 1

5EB-16154-00-00

$24.99

3

BOSS, CLUTCH

5EB-16371-00-00

Unavailable

4

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

5

PLATE, FRICTION

4FN-16321-00-00

Unavailable

6

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

7

BEARING(2JN)

93306-00315-00

$33.99

8

ROD, PUSH 1

5EB-16356-01-00

Unavailable

9

PLATE, PRESSURE 1

5EB-16351-01-00

Unavailable

10

SPRING, COMPRESSION(1FN)

90501-225A9-00

$8.49

11

SCREW, WITH WASHER

90159-06002-00

Unavailable

12

WASHER, PLATE (4X7)

90201-255A6-00

$12.49

13

PLATE, THRUST 2

1AE-16164-00-00

$16.49

14

COLLAR

90387-25024-00

Unavailable

15

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

16

WASHER, LOCK (34L)

90215-20231-00

Unavailable

17

NUT (34L)

90170-20327-00

Unavailable

18

BEARING

93317-11096-00

Unavailable

19

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

20

OIL SEAL (3X3)

93102-15212-00

Unavailable

21

AXLE, PUSH LEVER

5EB-16382-00-00

Unavailable

22

WASHER(6TA)

92907-08600-00

Unavailable

23

CIRCLIP

99080-07600-00

Unavailable

24

PUSH LEVER ASSY

5EB-16340-00-00

Unavailable

25

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

26

CIRCLIP(J51)

99080-09600-00

Unavailable

27

SPRING, TORSION

90508-165B1-00

Unavailable
