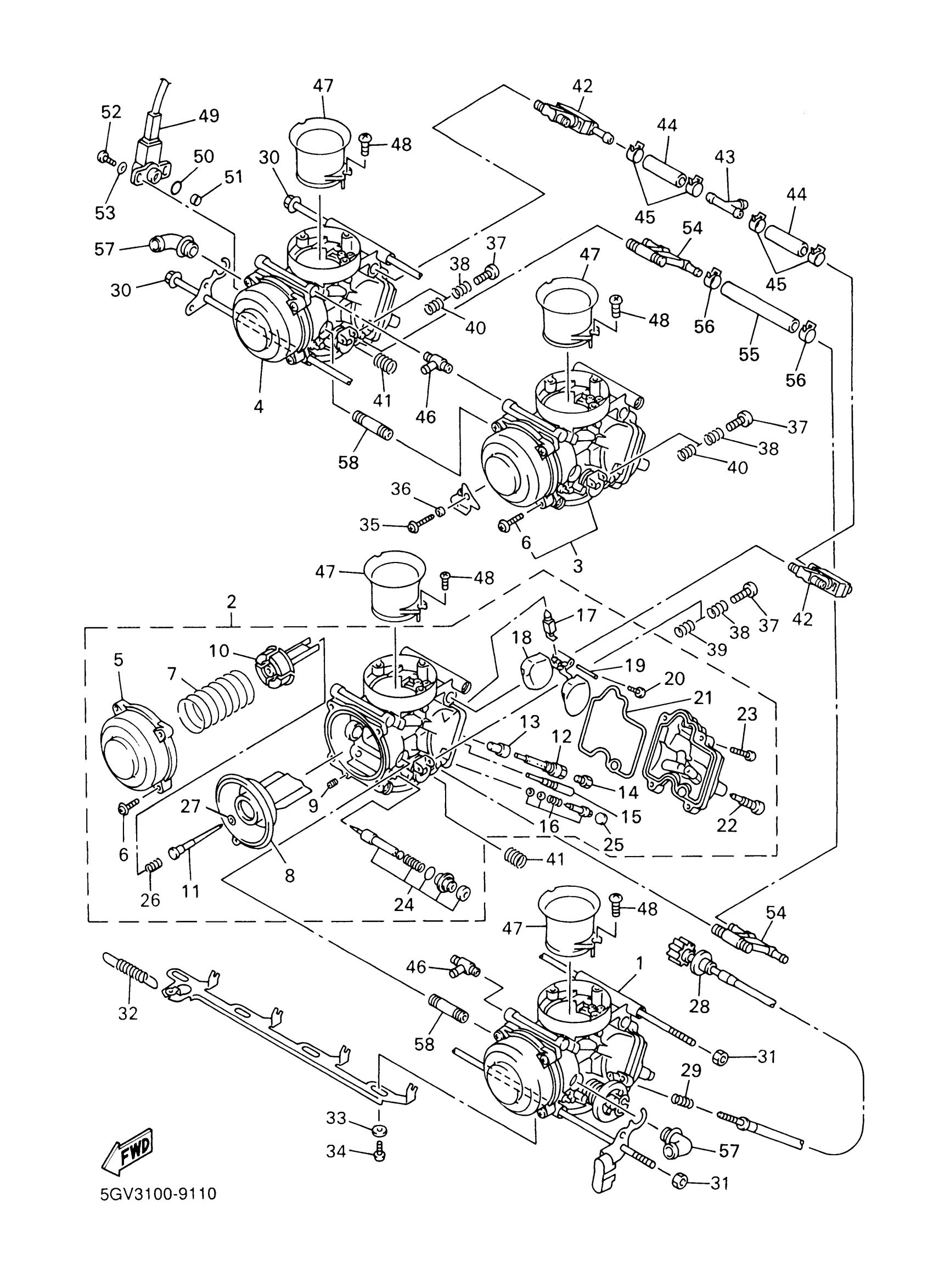

Yamaha YZFR6MC (YZFR6 CA) 5GV5 2000 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5GV-14901-01-00
Unavailable
1
CARBURETOR ASSY 1
5GV-14901-10-00
Unavailable
2
CARBURETOR ASSY 2
5GV-14902-01-00
Unavailable
2
CARBURETOR ASSY 2
5GV-14902-10-00
Unavailable
3
CARBURETOR ASSY 3
5GV-14903-01-00
Unavailable
3
CARBURETOR ASSY 3
5GV-14903-10-00
Unavailable
4
CARBURETOR ASSY 4
5GV-14904-01-00
Unavailable
4
CARBURETOR ASSY 4
5GV-14904-10-00
Unavailable
5
COVER, DIAPHRAGM
5EB-14958-00-00
Unavailable
8
DIAPHRAGM ASSY
5EB-14940-09-00
Unavailable
8
. DIAPHRAGM ASSY
5GV-14940-00-00
Unavailable
10
. SEAT, SPRING
5EB-14936-00-00
Unavailable
10
. SEAT, SPRING
5GV-14936-00-00
Unavailable
11
. NEEDLE (N7SA)
5EB-14916-10-00
Unavailable
11
. NEEDLE (N7SB)
5GV-14916-00-00
Unavailable
11
. NEEDLE (N7SD)
5GV-14916-10-00
Unavailable
11
. NEEDLE (N7SE)
5GV-14916-20-00
Unavailable
12
PIPE, MAIN BREED
5EB-1414G-00-00
Unavailable
13
HOLDER, NOZZLE
5EB-14244-00-00
Unavailable
14
JET, MAIN
3TJ-14943-87-00
Unavailable
14
JET, MAIN
3TJ-14943-87-00
Unavailable
14
JET, MAIN (#152)
3TJ-14943-88-00
Unavailable
15
JET (#35)
5EB-14948-01-00
Unavailable
15
JET (#38)
5EB-14948-02-00
Unavailable
16
PILOT SCREW SET
5EB-14105-00-00
Unavailable
16
PILOT SCREW SET
5GV-14105-00-00
Unavailable
17
NEEDLE VALVE SET
5EB-14107-00-00
Unavailable
18
. FLOAT
5EB-14985-00-00
Unavailable
19
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
20
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
21
GASKET, FLOAT CHAMBER
5EB-14984-00-00
Unavailable
22
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
23
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
24
. STARTER SET
4YR-1410A-00-00
Unavailable
25
CAP
4MM-14118-00-00
Unavailable
26
. SPRING
5GV-14556-00-00
Unavailable
27
. WASHER
5GV-14557-00-00
Unavailable
28
SCREW, THROTTLE
5EB-14922-00-00
Unavailable
29
SPRING, THROTTLE STOP
4JH-14934-00-00
Unavailable
30
BOLT, HOLDING
5EB-14162-00-00
Unavailable
31
NUT, FLANGE
95704-05500-00
Unavailable
32
SPRING
5EB-14935-00-00
Unavailable
33
WASHER, PLATE(3TJ)
90202-06056-00
Unavailable
34
SCREW, GUIDE
3TJ-14245-40-00
Unavailable
35
SCREW
4JH-14565-00-00
Unavailable
36
COLLAR
4JH-14264-00-00
Unavailable
37
SCREW, THROTTLE STOP
5EB-14121-00-00
Unavailable
38
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
39
SPRING, THROTTLE STOP
4YR-14133-00-00
Unavailable
40
SPRING, THROTTLE STOP
4JH-14133-00-00
Unavailable
41
SPRING
4JH-14487-00-00
Unavailable
42
PIPE ADAPTOR ASSY
4JH-14350-00-00
Unavailable
43
PIPE T
4JH-13918-00-00
Unavailable
44
PIPE
5EB-14298-00-00
Unavailable
45
CLIP
4JH-14137-00-00
Unavailable
46
PIPE
5EB-14197-01-00
Unavailable
47
JOINT, AIR FILTER 1
5EB-1440F-00-00
Unavailable
48
SCREW
3TJ-14216-40-00
Unavailable
49
THROTTLE POSITION SENSOR ASSY
4TV-85885-00-00
Unavailable
50
O-RING
4TV-14562-00-00
Unavailable
51
COLLAR
4TV-14534-00-00
Unavailable
52
SCREW
4TV-14216-00-00
Unavailable
53
WASHER
4TV-14557-00-00
Unavailable
54
JOINT
5EB-12446-00-00
Unavailable
55
HOSE 1
5EB-12576-00-00
Unavailable
56
. CLIP
4TV-12486-00-00
Unavailable
57
NIPPLE
5EB-14251-00-00
Unavailable
58
JOINT
5EB-14454-00-00
Unavailable
