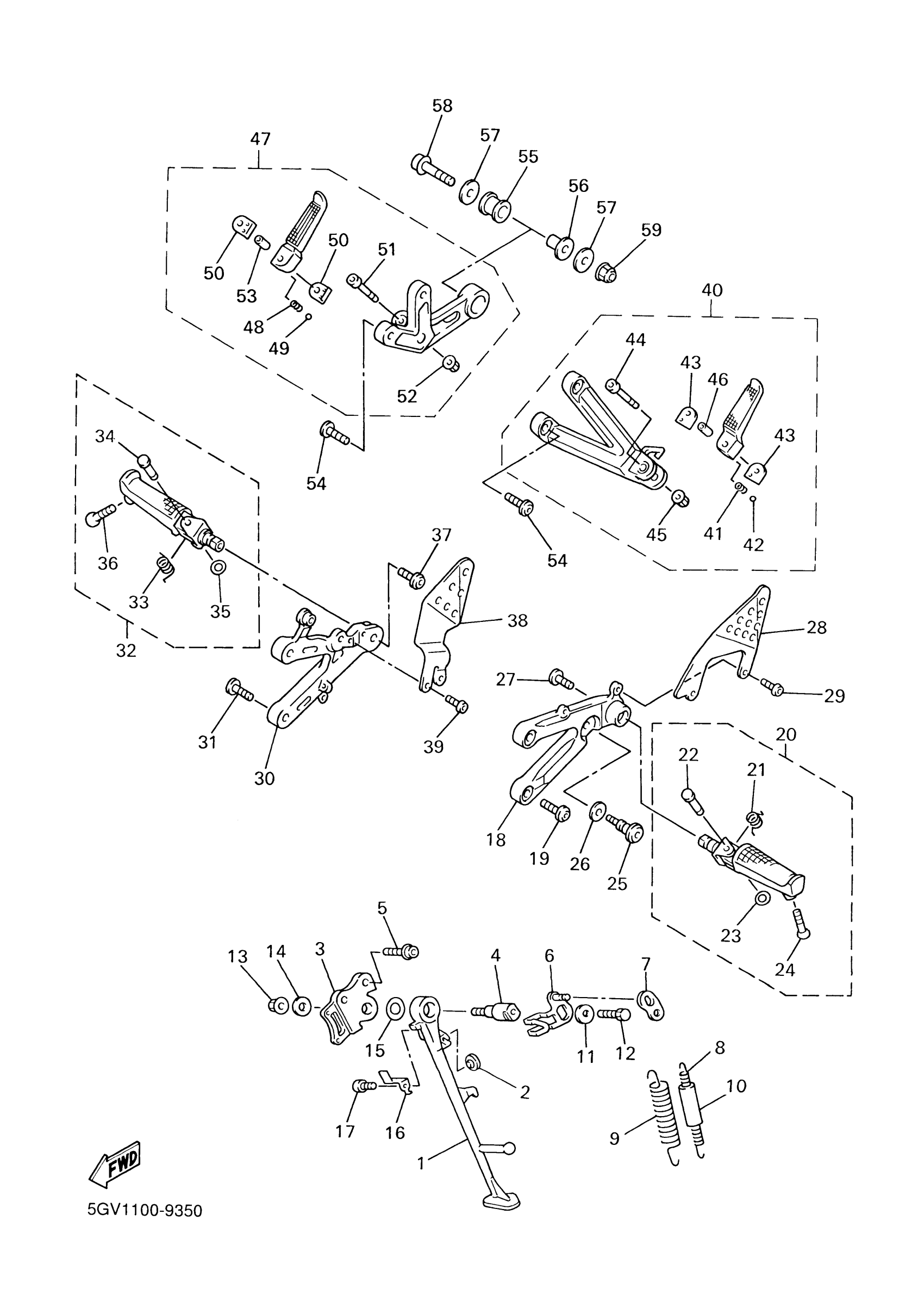

Yamaha YZFR6LC (YZFR6 CA) 5GV12 1999 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5EB-27311-00-00

Unavailable

2

STOPPER, MAIN STAND

128-27114-00-00

$7.99

3

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

4

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-10012-00

$26.99

6

HOOK, SIDE STAND

5GV-27352-00-00

Unavailable

7

LINK, SIDE STAND

36Y-27315-00-00

Unavailable

8

SPRING, TENSION (4K0)

90506-18224-00

$5.60

9

SPRING, TENSION (4K0)

90506-26225-00

$11.49

10

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

11

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

12

BOLT, HEXAGON

97017-08020-00

$9.49

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

14

WASHER, PLATE(47X)

90201-101J1-00

$8.49

15

WASHER, PLATE (22F)

90201-146F9-00

$7.49

16

LINK, SIDE STAND

4NX-27315-00-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

BRACKET 2

5EB-27442-00-00

Unavailable

19

BOLT

90109-085G6-00

Unavailable

20

FRONT FOOTREST ASSY (LEFT)

5MT-27410-01-00

Unavailable

21

SPRING, TORSION

90508-183B9-00

Unavailable

22

PIN(2AL)

90243-08029-00

Unavailable

23

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

24

BOLT

90109-08177-00

Unavailable

25

BOLT

4BP-27434-11-00

Unavailable

26

WASHER (853)

90201-08326-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

28

PLATE 1

5EB-27445-01-00

Unavailable

29

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

30

BRACKET 3

5EB-27443-00-00

Unavailable

31

BOLT

90109-085G6-00

Unavailable

32

FRONT FOOTREST ASSY (RIGHT)

5MT-27420-01-00

Unavailable

33

SPRING, TORSION

90508-184B0-00

Unavailable

34

PIN(2AL)

90243-08029-00

Unavailable

35

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

36

BOLT

90109-08177-00

Unavailable

37

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

38

PLATE 2

5EB-27446-01-00

Unavailable

39

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

40

REAR FOOTREST ASSY 1

5EB-27430-00-00

Unavailable

41

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

42

BALL

93501-04011-00

Unavailable

43

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

44

BOLT, SOCKET

91314-06045-00

Unavailable

45

NUT, U FLANGE

95604-06200-00

Unavailable

46

COLLAR (24R)

90387-064H8-00

Unavailable

47

REAR FOOTREST ASSY 2

5EB-27440-00-00

Unavailable

48

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

49

BALL

93501-04011-00

Unavailable

50

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

51

BOLT, SOCKET

91314-06045-00

Unavailable

52

NUT, U FLANGE

95604-06200-00

Unavailable

53

COLLAR (24R)

90387-064H8-00

Unavailable

54

BOLT

90109-085G6-00

Unavailable

55

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

56

COLLAR (2H7)

90387-10636-00

Unavailable

57

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

58

BOLT, WASHER BASED (26H)

90105-10271-00

Unavailable

59

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19
