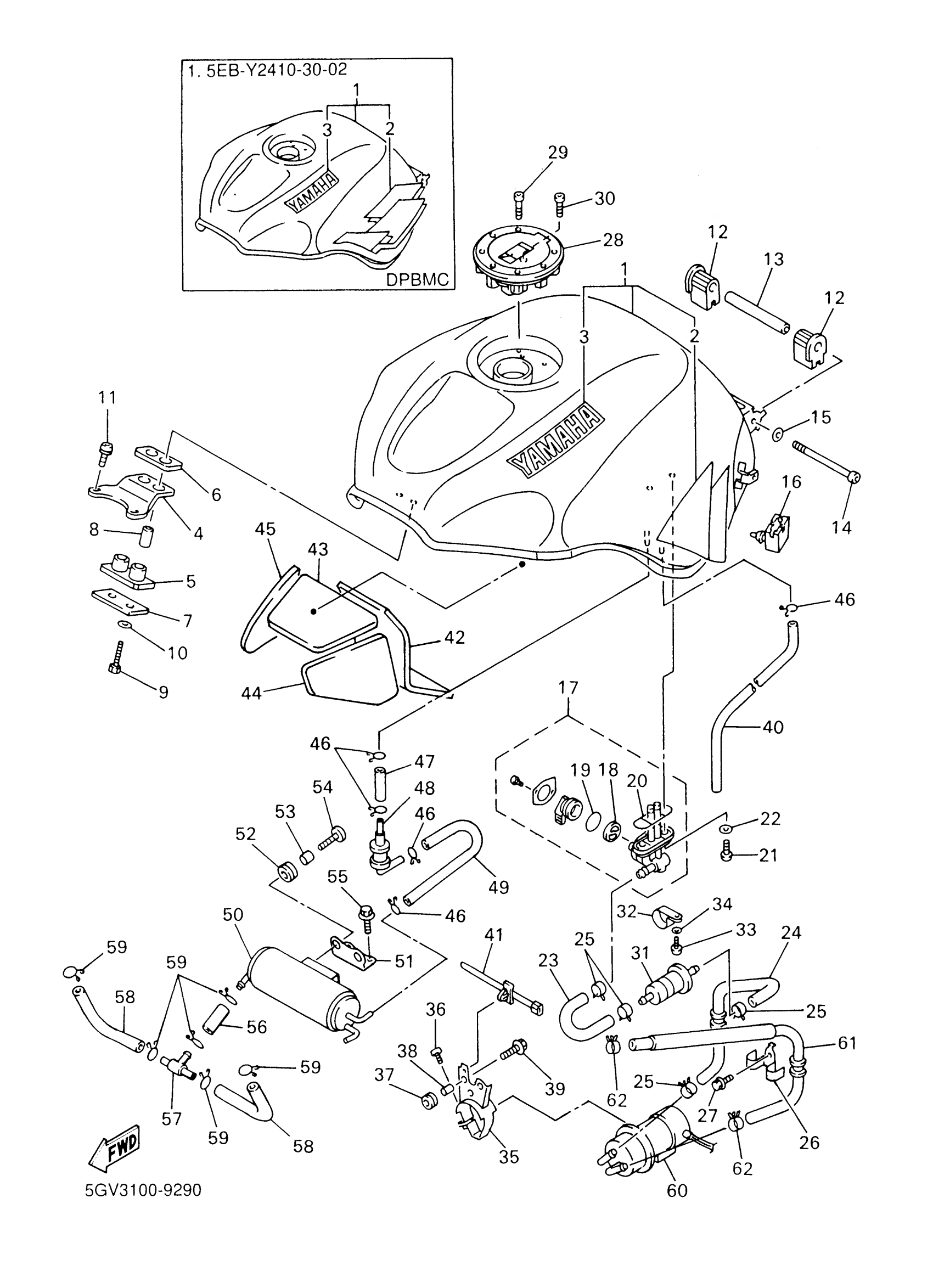

Yamaha YZFR6LC (YZFR6 CA) 5GV12 1999 FUEL TANK CA Diagram

#

Description
Price

1

FUEL TANK COMP. (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)

5EB-Y2410-30-01

Unavailable

1

FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)

5EB-Y2410-30-02

Unavailable

2

. GRAPHIC SET (BLUISH WHITE COCKTAIL 1)

5EB-24240-00-00

Unavailable

2

. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)

5EB-24250-00-00

Unavailable

3

EMBLEM, YAMAHA

4TV-2153A-00-00

$31.99

3

. EMBLEM, YAMAHA (VIVID RED COCKTAIL 1)

4TV-2153A-20-00

Unavailable

4

BRACKET, FUEL TANK 1

5EB-24191-00-00

Unavailable

5

DAMPER, LOCATING 1

5EB-24181-00-00

Unavailable

6

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

7

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

8

COLLAR 849833160000

90387-06027-00

$8.49

9

BOLT, HEXAGON

97017-06030-00

$3.61

10

WASHER(6TA)

92907-06600-00

$2.72

11

SCREW, WITH WASHER

90159-06005-00

$8.49

12

DAMPER, LOCATING 3

5EB-24183-00-00

Unavailable

13

COLLAR(JF3)

90387-061W6-00

Unavailable

14

BOLT, SOCKET

91317-06090-00

Unavailable

15

. WASHER, PLATE

90201-06050-00

Unavailable

16

DAMPER, LOCATING 2

5EB-24182-00-00

Unavailable

17

FUEL COCK ASSY 1

4TV-24500-00-00

Unavailable

18

VALVE

3XV-24523-00-00

Unavailable

19

SEAL, COCK

3XV-24534-00-00

Unavailable

20

O-RING

4X8-24512-00-00

Unavailable

21

SCREW 366241430000

90149-06008-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

PIPE, FUEL 1

5EB-24311-00-00

Unavailable

24

PIPE 2

5EB-24312-00-00

Unavailable

25

CLIP (5K4)

90467-14057-00

Unavailable

26

CLAMP 1

5EB-2417H-00-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

28

CAP ASSY

4HM-24602-01-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

30

BOLT, SOCKET

91317-05010-00

Unavailable

31

FILTER ASSY

4TV-24560-00-00

Unavailable

32

CLAMP, FUEL PIPE 1

4BR-24366-00-00

Unavailable

33

SCREW, PAN

98517-06012-00

Unavailable

34

WASHER(6TA)

92907-06600-00

$2.72

35

BRACKET, FUEL PUMP

5EB-24491-00-00

Unavailable

36

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

37

GROMMET (1E5)

90480-13163-00

Unavailable

38

COLLAR(47X)

90387-060G7-00

Unavailable

39

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable

40

HOSE (L730)

90445-105K7-00

Unavailable

41

CLAMP(2TV)

90464-10112-00

Unavailable

42

DAMPER, PLATE 3

5EB-2414K-00-00

Unavailable

43

DAMPER, PLATE 1

5EB-2414H-00-00

Unavailable

44

DAMPER, SIDE COVER

5EB-2411J-00-00

Unavailable

45

DAMPER, PLATE 2

5EB-2414J-00-00

Unavailable

46

CLIP

90467-100A1-00

Unavailable

47

PIPE 10

4DU-24321-00-00

Unavailable

48

ROLL OVER VALVE ASSY

3UH-24180-00-00

Unavailable

49

PIPE 4

5GV-24314-00-00

Unavailable

50

CANISTER ASSY

5GV-24170-00-00

Unavailable

51

BRACKET, CANISTOR

5GV-2419F-00-00

Unavailable

52

GROMMET (462)

90480-13018-00

Unavailable

53

COLLAR(42G)

90387-062L2-00

Unavailable

54

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

55

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

56

HOSE (L45)

90445-113K0-00

Unavailable

57

PIPE, JOINT

3H3-24376-00-00

Unavailable

58

PIPE

5GV-14465-00-00

Unavailable

59

CLIP

90467-100A1-00

Unavailable

60

FUEL PUMP COMP.

5EB-13907-02-00

Unavailable

61

HOSE

5EB-14294-00-00

Unavailable

62

CLIP (7K7)

90467-11044-00

Unavailable
