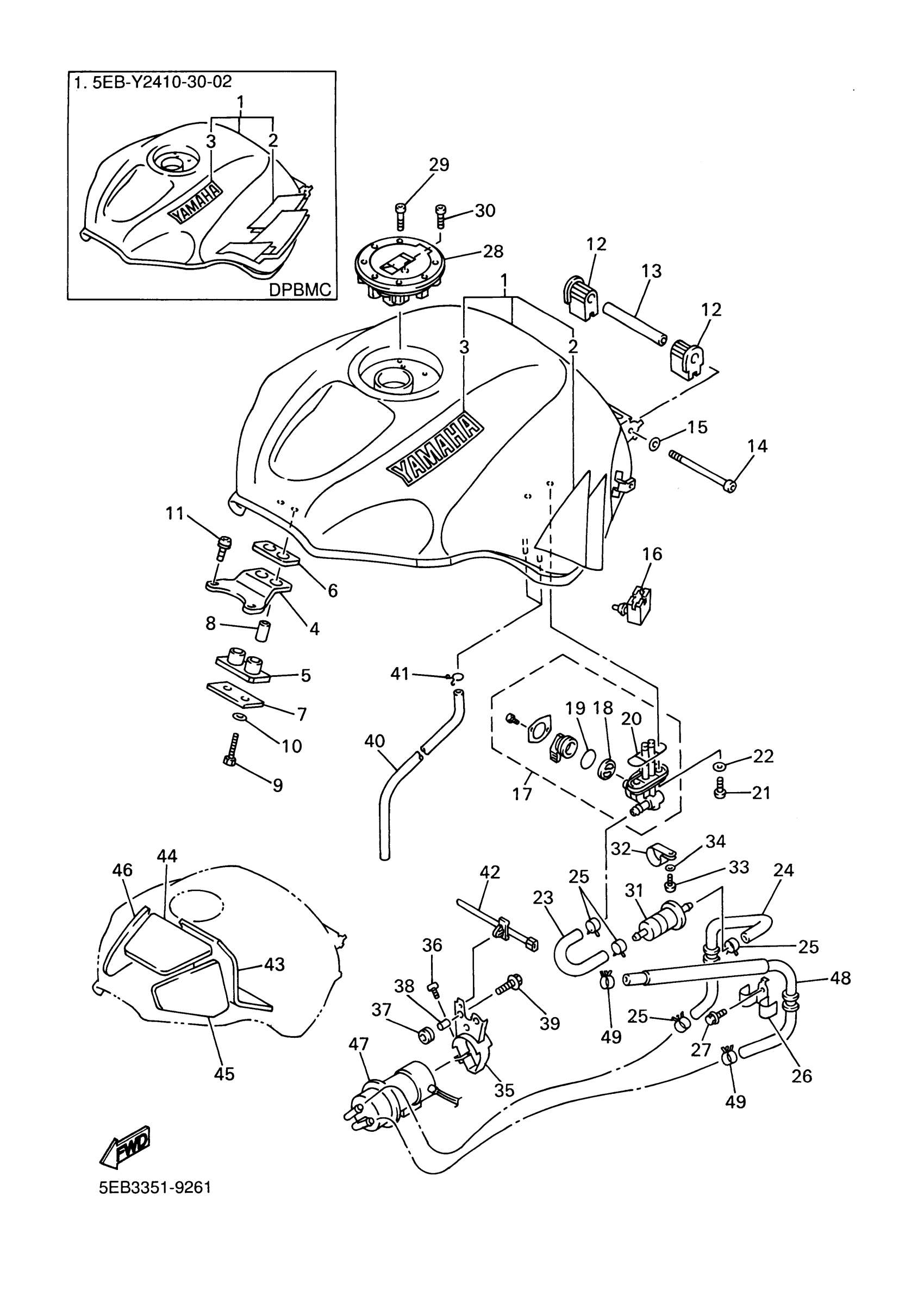

Yamaha YZFR6LC (YZFR6 CA) 5GV12 1999 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
5EB-Y2410-30-01
Unavailable
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
5EB-Y2410-30-02
Unavailable
2
. GRAPHIC SET (BLUISH WHITE COCKTAIL 1)
5EB-24240-00-00
Unavailable
2
. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)
5EB-24250-00-00
Unavailable
3
. EMBLEM, YAMAHA (VIVID RED COCKTAIL 1)
4TV-2153A-20-00
Unavailable
4
BRACKET, FUEL TANK 1
5EB-24191-00-00
Unavailable
5
DAMPER, LOCATING 1
5EB-24181-00-00
Unavailable
6
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
7
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
12
DAMPER, LOCATING 3
5EB-24183-00-00
Unavailable
13
COLLAR(JF3)
90387-061W6-00
Unavailable
14
BOLT, SOCKET
91317-06090-00
Unavailable
15
. WASHER, PLATE
90201-06050-00
Unavailable
16
DAMPER, LOCATING 2
5EB-24182-00-00
Unavailable
17
FUEL COCK ASSY 1
4TV-24500-00-00
Unavailable
18
VALVE
3XV-24523-00-00
Unavailable
19
SEAL, COCK
3XV-24534-00-00
Unavailable
20
O-RING
4X8-24512-00-00
Unavailable
21
SCREW 366241430000
90149-06008-00
Unavailable
22
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
23
PIPE, FUEL 1
5EB-24311-00-00
Unavailable
24
PIPE 2
5EB-24312-00-00
Unavailable
25
CLIP (5K4)
90467-14057-00
Unavailable
26
CLAMP 1
5EB-2417H-00-00
Unavailable
27
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
28
CAP ASSY
4HM-24602-01-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
30
BOLT, SOCKET
91317-05010-00
Unavailable
31
FILTER ASSY
4TV-24560-00-00
Unavailable
32
CLAMP, FUEL PIPE 1
4BR-24366-00-00
Unavailable
33
SCREW, PAN
98517-06012-00
Unavailable
35
BRACKET, FUEL PUMP
5EB-24491-00-00
Unavailable
36
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
37
GROMMET (1E5)
90480-13163-00
Unavailable
38
COLLAR(47X)
90387-060G7-00
Unavailable
39
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
40
HOSE (L730)
90445-105K7-00
Unavailable
41
CLIP
90467-100A1-00
Unavailable
42
CLAMP(2TV)
90464-10112-00
Unavailable
43
DAMPER, PLATE 3
5EB-2414K-00-00
Unavailable
44
DAMPER, PLATE 1
5EB-2414H-00-00
Unavailable
45
DAMPER, SIDE COVER
5EB-2411J-00-00
Unavailable
46
DAMPER, PLATE 2
5EB-2414J-00-00
Unavailable
47
FUEL PUMP COMP.
5EB-13907-02-00
Unavailable
48
HOSE
5EB-14294-00-00
Unavailable
49
CLIP (7K7)
90467-11044-00
Unavailable
