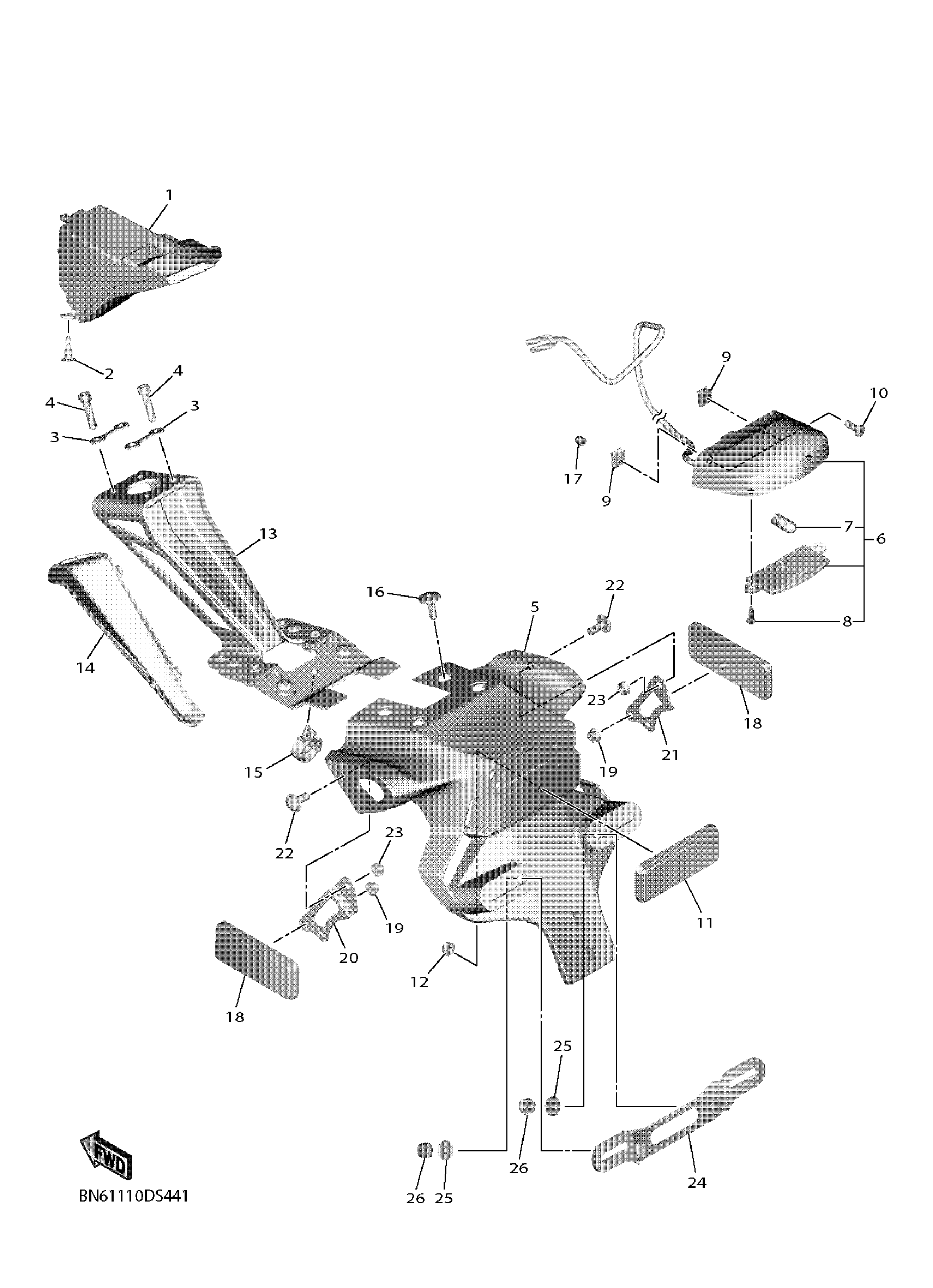

Yamaha YZFR6L1O (YZFR6) BN6L1 2020 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

2CR-84710-01-00

$161.87

2

RIVET

90269-06008-00

$5.55

3

WASHER, SPECIAL 1

BN6-21615-00-00

$5.17

4

BOLT,SOCKET HEAD

91314-06025-00

$6.22

5

GUARD, MUD

2C0-21629-11-00

Unavailable

6

LICENCE LIGHT UNIT ASSY

5VX-84745-01-00

$81.31

7

BULB

4SV-84347-00-00

$5.99

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

NUT, SPRING(3GM)

90183-05061-00

$3.71

10

SCREW, BIND

98902-05014-00

$1.13

11

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

12

NUT, S/L FLANGE

95607-05200-00

$6.39

13

REAR STAY COMP.

BN6-21640-00-00

Unavailable

14

COVER, REAR FENDER 2

BN6-2163E-00-00

Unavailable

15

CLAMP(4NX)

90464-14228-00

$4.23

16

BOLT

90109-06182-00

Unavailable

17

PLUG, BLIND

5VX-13569-01-00

Unavailable

18

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

19

NUT, FLANGE

95702-05500-00

Unavailable

20

BRACKET, REAR STAY

2C0-21688-00-00

Unavailable

21

BRACKET, REAR STAY 2

2C0-21689-00-00

Unavailable

22

SCREW, WITH WASHER

90159-06011-00

Unavailable

23

NUT, SELF-LOCKING

95617-06100-00

Unavailable

24

BRACKET, LICENSE

5MT-84751-00-00

Unavailable

25

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

26

NUT, SELF-LOCKING

95617-06100-00

Unavailable
