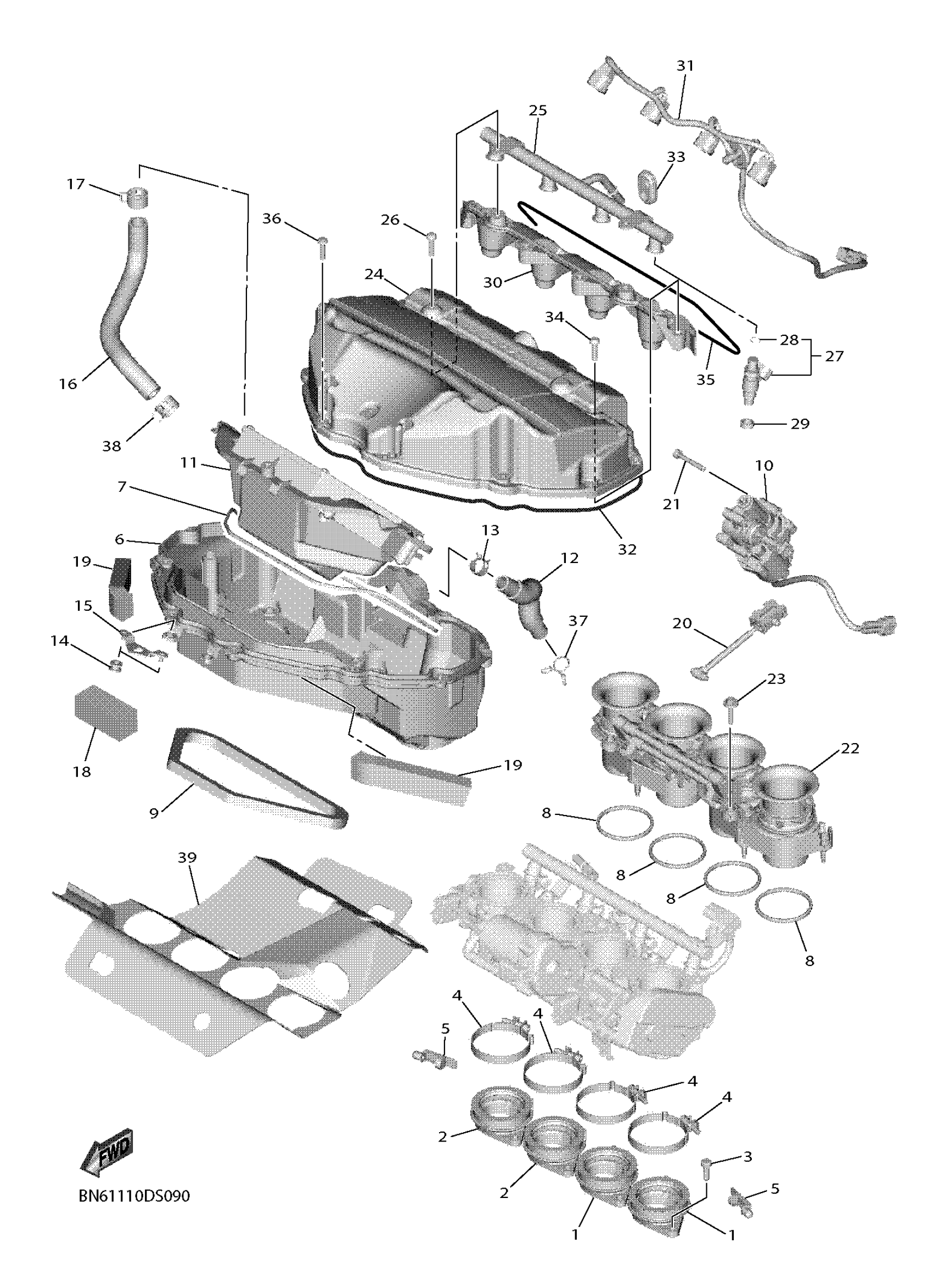

Yamaha YZFR6L1O (YZFR6) BN6L1 2020 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
2C0-13586-00-00
Unavailable
7
SEAL
13S-14462-00-00
Unavailable
10
GEARED MOTOR COMP. 2
13S-85870-01-00
Unavailable
15
STAY 1
13S-14498-00-00
Unavailable
16
HOSE, BEND 2
BN6-14882-00-00
Unavailable
17
CLIP
90467-180A3-00
Unavailable
18
DAMPER
2C0-14409-00-00
Unavailable
19
DAMPER 1
2C0-14425-00-00
Unavailable
20
SHAFT ASSY
13S-14490-10-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-05045-00
Unavailable
22
JOINT ASSY
13S-1440B-11-00
Unavailable
23
SCREW, WITH WASHER
90159-05035-00
Unavailable
24
CASE, AIR CLEANER 2
13S-14421-11-00
Unavailable
25
PIPE
13S-13938-00-00
Unavailable
26
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
27
INJECTOR
13S-13761-00-00
Unavailable
28
O-RING
5PS-14147-00-00
Unavailable
29
GASKET
90430-09002-00
Unavailable
30
CAP, INJECTOR
13S-13767-01-00
Unavailable
31
WIRE, SUB-LEAD
13S-82318-00-00
Unavailable
32
SEAL
1VJ-14462-00-00
Unavailable
33
GROMMET
13S-14445-01-00
Unavailable
34
BOLT, BUTTON HEAD
92012-06020-00
Unavailable
35
SEAL
13S-1446R-00-00
Unavailable
36
SCREW, BIND
98902-05020-00
Unavailable
37
CLIP (371)
90467-14015-00
Unavailable
38
CLIP
90467-180A3-00
Unavailable
39
PROTECTOR, HEAT
BN6-12682-00-00
Unavailable
