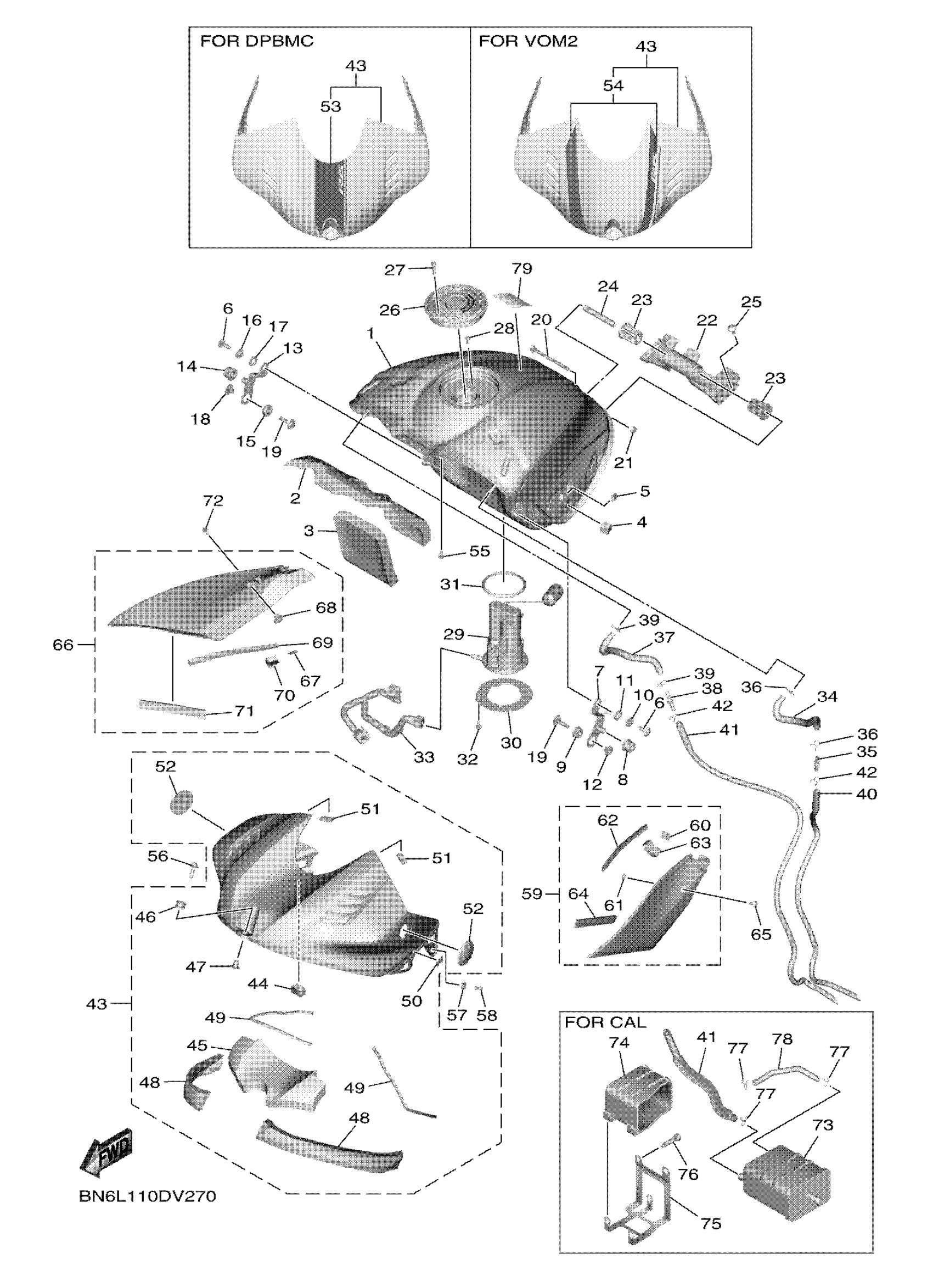

Yamaha YZFR6L1O (YZFR6) BN6L1 2020 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BN6-YK241-00-P5

$1,017.99

2

DAMPER, PLATE 2

BN6-2414J-00-00

Unavailable

3

DAMPER, PLATE

90520-15014-00

$2.82

4

DAMPER, LOCATING 2

14B-2836U-00-00

$6.99

5

DAMPER, SIDE COVER

5PW-2411J-01-00

$7.99

6

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

7

BRACKET, FUEL TANK 1

BN6-24191-00-00

$29.99

8

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

9

GROMMET (4H7)

90480-16278-00

$3.50

10

COLLAR

90387-06171-00

$8.49

11

DAMPER, LOCATING 3

BN6-24183-00-00

Unavailable

12

COLLAR(4BH)

90387-066Y6-00

$9.49

13

BRACKET, FUEL TANK 1

BN6-24191-10-00

$29.99

14

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

15

GROMMET (4H7)

90480-16278-00

$3.50

16

COLLAR

90387-06171-00

$8.49

17

DAMPER, LOCATING 3

BN6-24183-00-00

Unavailable

18

COLLAR(4BH)

90387-066Y6-00

$9.49

19

BOLT, WITH WASHER

90119-06262-00

Unavailable

20

BOLT, FLANGE

95812-06090-00

Unavailable

21

NUT, FLANGE

95702-06500-00

Unavailable

22

BRACKET, TANK FITTING

BN6-2413Y-00-00

Unavailable

23

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

24

COLLAR

90387-06055-00

Unavailable

25

BOLT

90111-06038-00

Unavailable

26

CAP ASSY

39P-24602-00-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

28

BOLT

91312-05010-00

Unavailable

29

FUEL PUMP COMP.

BN6-13907-10-00

Unavailable

30

BRACKET, FUEL PUMP

2CR-24491-00-00

Unavailable

31

O-RING

1RC-24486-00-00

Unavailable

32

BOLT, WITH WASHER

90119-05015-00

Unavailable

33

PIPE, FUEL 1

13S-13971-01-00

Unavailable

34

PIPE 3

BN6-24313-00-00

Unavailable

35

JOINT

4XY-14568-00-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable

38

JOINT

4XY-14568-00-00

Unavailable

39

CLIP

90467-090A2-00

Unavailable

40

PIPE 4

BN6-24314-00-00

Unavailable

41

PIPE 7

BN6-24317-00-00

Unavailable

42

CLIP

90467-090A2-00

Unavailable

43

COVER, TOP (FUEL TANK)

BN6-Y217F-00-P5

Unavailable

44

DAMPER, PLATE

90520-08006-00

Unavailable

45

DAMPER

BN6-12232-00-00

Unavailable

46

GROMMET

90480-12023-00

Unavailable

47

COLLAR

90387-06203-00

Unavailable

48

DAMPER, PLATE 4

2S3-2414N-00-00

Unavailable

49

DAMPER, PLATE 1

5PW-2414H-00-00

Unavailable

50

SEAL

5SL-21268-00-00

Unavailable

51

DAMPER, PLATE

90520-05024-00

Unavailable

52

EMBLEM

1RC-2413B-02-00

Unavailable

55

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

56

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

57

COLLAR

90387-05058-00

Unavailable

58

BOLT

97012-05010-00

Unavailable

59

TANK SIDE COVER ASSY 1

BN6-24106-00-00

Unavailable

60

SEAL

5SL-21268-00-00

Unavailable

61

COLLAR

90387-05035-00

Unavailable

62

SEAL 3

7TA-22875-00-00

Unavailable

63

MOLE

7CF-22869-00-00

Unavailable

64

DAMPER, PLATE

90520-05023-00

Unavailable

65

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

66

TANK SIDE COVER ASSY 2

BN6-24108-00-00

Unavailable

67

SEAL

5SL-21268-00-00

Unavailable

68

COLLAR

90387-05035-00

Unavailable

69

SEAL 3

7TA-22875-00-00

Unavailable

70

MOLE

7CF-22869-00-00

Unavailable

71

DAMPER, PLATE

90520-05023-00

Unavailable

72

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

79

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
