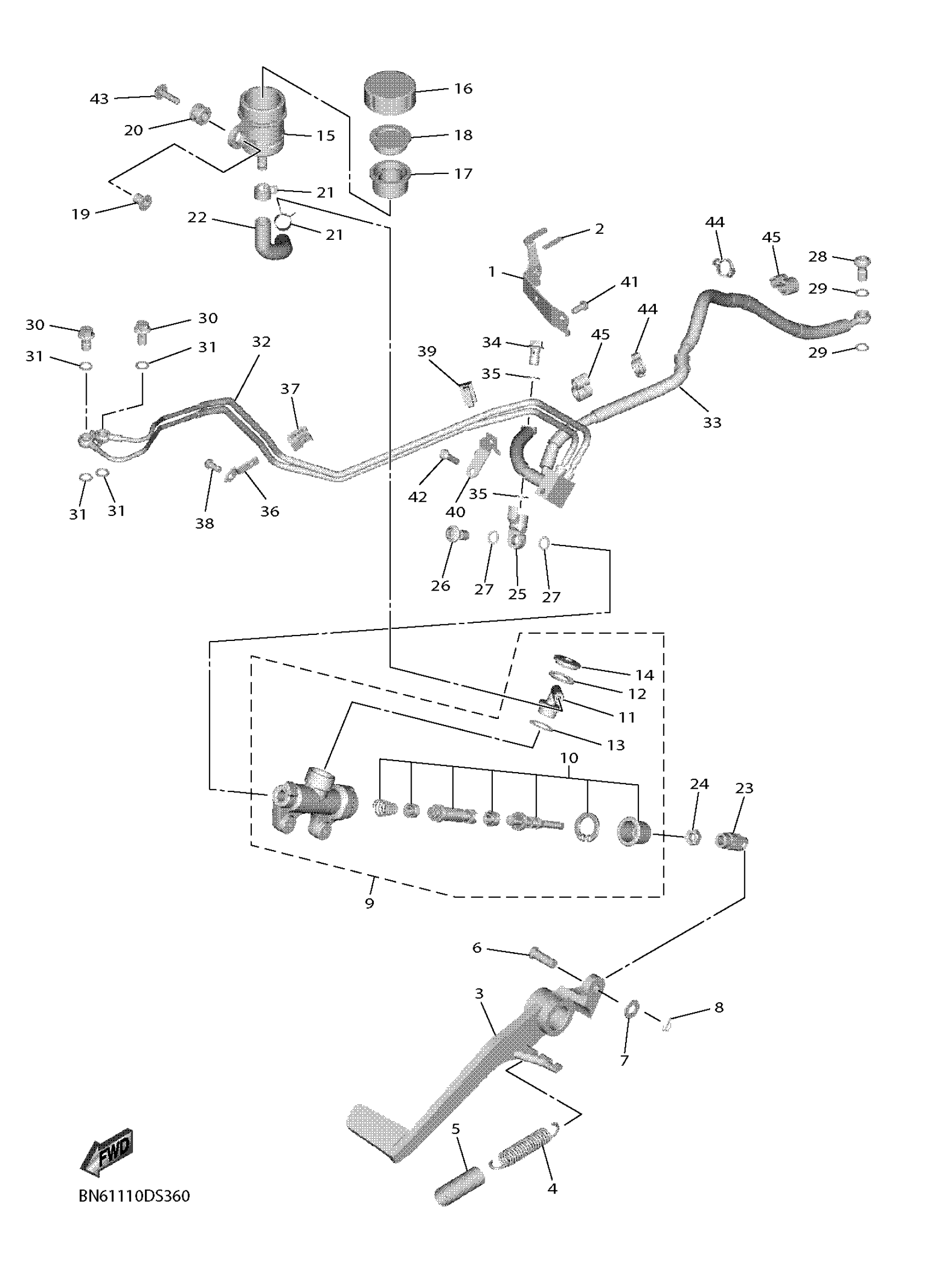

Yamaha YZFR6JW (YZFR6) BN671 2018 REAR MASTER CYLINDER Diagram

#

Description
Price

1

BRACKET, RESERVE TANK

BN6-21228-00-00

Unavailable

2

DAMPER 5

3C3-2837J-00-00

$2.34

3

PEDAL, BRAKE

2C0-27211-00-00

$125.99

4

SPRING, TENSION (2X3)

90506-20193-00

$14.99

5

HOSE

90446-15386-00

$7.49

6

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

7

WASHER(6TA)

92907-06200-00

$8.49

8

PIN, COTTER

91490-16020-00

Unavailable

9

RR. MASTER CYLINDER ASSY.

BN6-2583V-00-00

$168.99

10

CYLINDER KIT, MASTER

BN6-25808-00-00

Unavailable

11

JOINT

4ML-2582A-50-00

$14.49

12

CIRCLIP

2VN-25866-00-00

$6.99

13

O-RING (22U)

93210-15566-00

$7.49

14

COVER, DUST

3FV-2589A-00-00

$20.99

15

TANK, RESERVOIR

2C0-25894-00-00

$29.99

16

CAP, RESERVOIR

2C0-25852-00-00

Unavailable

17

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

18

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

19

COLLAR

90387-05028-00

Unavailable

20

GROMMET

2C0-26326-00-00

Unavailable

21

CLIP(3FV)

90467-12085-00

Unavailable

22

HOSE, RESERVOIR

BN6-25895-50-00

Unavailable

23

JOINT

4XV-27222-01-00

Unavailable

24

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

25

JOINT

BN6-25885-00-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

GASKET

90430-10005-00

Unavailable

28

BOLT, UNION

90401-10172-00

Unavailable

29

GASKET

90430-10005-00

Unavailable

30

BOLT, UNION

90401-10052-00

Unavailable

31

GASKET

90430-10005-00

Unavailable

32

HOSE, BRAKE

BN6-2584C-01-00

Unavailable

33

HOSE, BRAKE

BN6-2584D-01-00

Unavailable

34

BOLT, UNION

90401-10049-00

Unavailable

35

GASKET

90430-10005-00

Unavailable

36

BRACKET 1

BN6-2787A-00-00

Unavailable

37

CLAMP

90464-07014-00

Unavailable

38

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

39

CLAMP

90464-07014-00

Unavailable

40

BRACKET 3

BN6-2787F-00-00

Unavailable

41

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

42

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

43

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

44

CLAMP

90464-14003-00

Unavailable

45

CLAMP(4GL)

90464-10233-00

Unavailable
