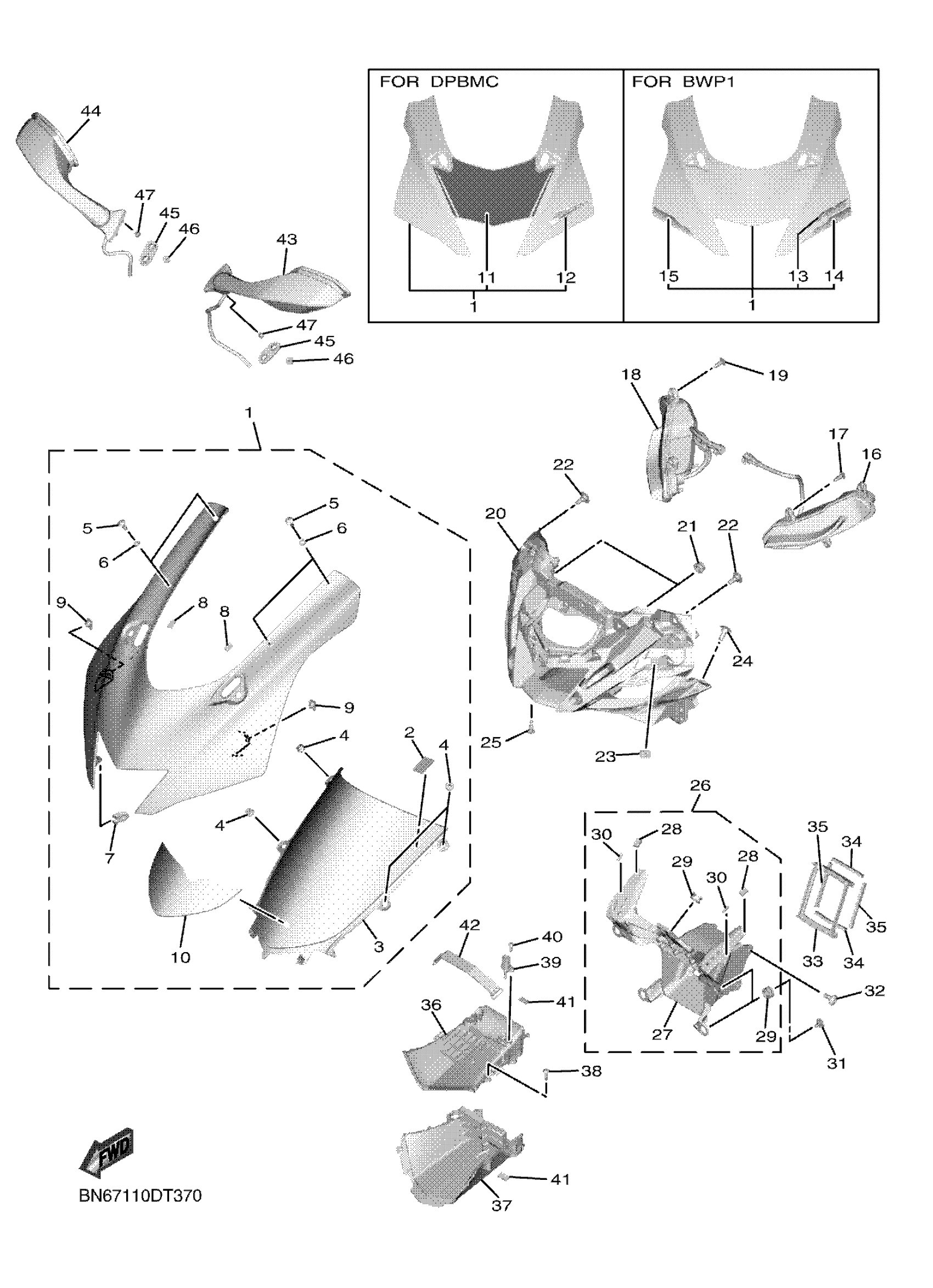

Yamaha YZFR6JW (YZFR6) BN671 2018 COWLING 1 Diagram

BODY, FRONT UPPER 1

BN6-Y283G-C0-P3

Unavailable

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

WINDSHIELD

BN6-28381-00-00

$111.99

NUT(1KT)

90179-05523-00

$8.49

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

. WASHER, PLATE

90202-05088-00

Unavailable

CLAMP

90464-07018-00

$0.65

HOOK 1

20S-2814H-11-00

$3.17

NUT, SPRING

90183-060A6-00

$5.49

GRAPHIC, 18

BN6-2832P-00-00

$72.99

PILOT LIGHT ASSY 1

BN6-84301-00-00

$405.99

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

PILOT LIGHT ASSY 2

BN6-84302-00-00

$405.99

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

BODY, COWLING

BN6-2830A-00-00

Unavailable

GROMMET

90480-10003-00

Unavailable

BOLT

90109-06061-00

Unavailable

NUT, SPRING

90183-050A6-00

Unavailable

BOLT

90109-06061-00

Unavailable

RIVET

90269-06008-00

Unavailable

LEG SHIELD STAY SET

BN6-28320-00-00

Unavailable

STAY 1

BN6-28356-00-00

Unavailable

HOOK 1

20S-2814H-11-00

$3.17

DAMPER

4XV-83513-00-00

Unavailable

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

SCREW, ROUND TAPPING

90160-05006-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

JOINT

2C0-28342-02-00

Unavailable

DAMPER 1

2C0-28217-00-00

Unavailable

DAMPER 2

2C0-28227-00-00

Unavailable

DUCT 2

BN6-2838R-01-00

Unavailable

DUCT 3

BN6-2838T-01-00

Unavailable

SCREW, TRUSS TAP.

97707-40016-00

Unavailable

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

DAMPER 2

51Y-21639-00-00

Unavailable

BAND, BATTERY

133-82131-00-00

Unavailable

REAR VIEW MIRROR ASSY (LEFT)

BN6-26280-11-00

Unavailable

REAR VIEW MIRROR ASSY (RIGHT)

BN6-26290-11-00

Unavailable

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable

COLLAR(J45)

90387-064T3-00

Unavailable
