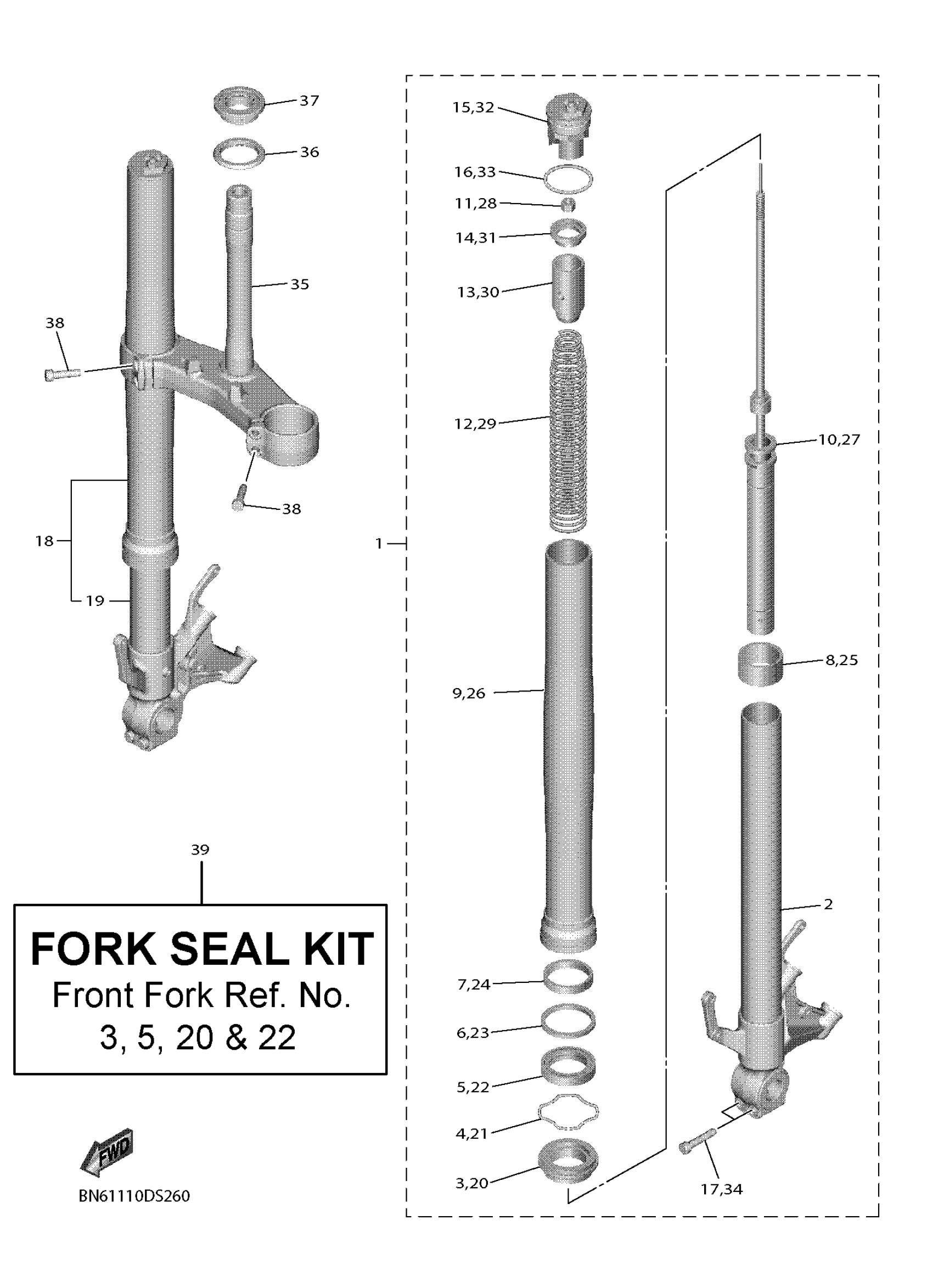

Yamaha YZFR6HW (YZFR6) BN6100 2017 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

BN6-23102-00-00

Unavailable

2

INNER TUBE COMP.1

2CR-23110-00-00

$384.99

3

SEAL, DUST

4PU-23144-00-00

$24.99

4

RING, SNAP

4V4-23153-L0-00

$9.99

5

OIL SEAL

4PU-23145-01-00

$25.99

6

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

7

METAL, SLIDE 1

2CR-23125-00-00

$11.99

8

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

9

TUBE, OUTER

2CR-23136-00-00

$345.99

10

CYLINDER COMP., FRONT FORK

BN6-23170-00-00

$316.99

11

NUT

3LC-23357-00-00

$6.99

12

SPRING, FRONT FORK

BN6-23141-00-00

$32.99

13

SPACER

2CR-23118-00-00

Unavailable

14

GUIDE, SPRING

2CR-23117-00-00

Unavailable

15

BOLT, CAP

2CR-23111-10-00

$298.99

16

O-RING

39P-23147-00-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

FRONT FORK ASSY (R.H)

BN6-23103-00-00

Unavailable

19

INNER TUBE COMP.2

2CR-23120-00-00

Unavailable

20

SEAL, DUST

4PU-23144-00-00

$24.99

21

RING, SNAP

4V4-23153-L0-00

$9.99

22

OIL SEAL

4PU-23145-01-00

$25.99

23

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

24

METAL, SLIDE 1

2CR-23125-00-00

$11.99

25

PISTON, FRONT FORK

2CR-23171-00-00

$27.99

26

TUBE, OUTER

2CR-23136-00-00

$345.99

27

CYLINDER COMP., FRONT FORK

BN6-23170-00-00

$316.99

28

NUT

3LC-23357-00-00

$6.99

29

SPRING, FRONT FORK

BN6-23141-00-00

$32.99

30

SPACER

2CR-23118-00-00

Unavailable

31

GUIDE, SPRING

2CR-23117-00-00

Unavailable

32

BOLT, CAP

2CR-23111-10-00

$298.99

33

O-RING

39P-23147-00-00

Unavailable

34

BOLT,SOCKET

91314-08040-00

Unavailable

35

UNDER BRACKET COMP.

BN6-23340-00-00

Unavailable

36

SEAL, STEERING

3FV-23462-00-00

Unavailable

37

BEARING

93399-99957-00

Unavailable

38

BOLT,SOCKET

91314-08030-00

Unavailable

39

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
