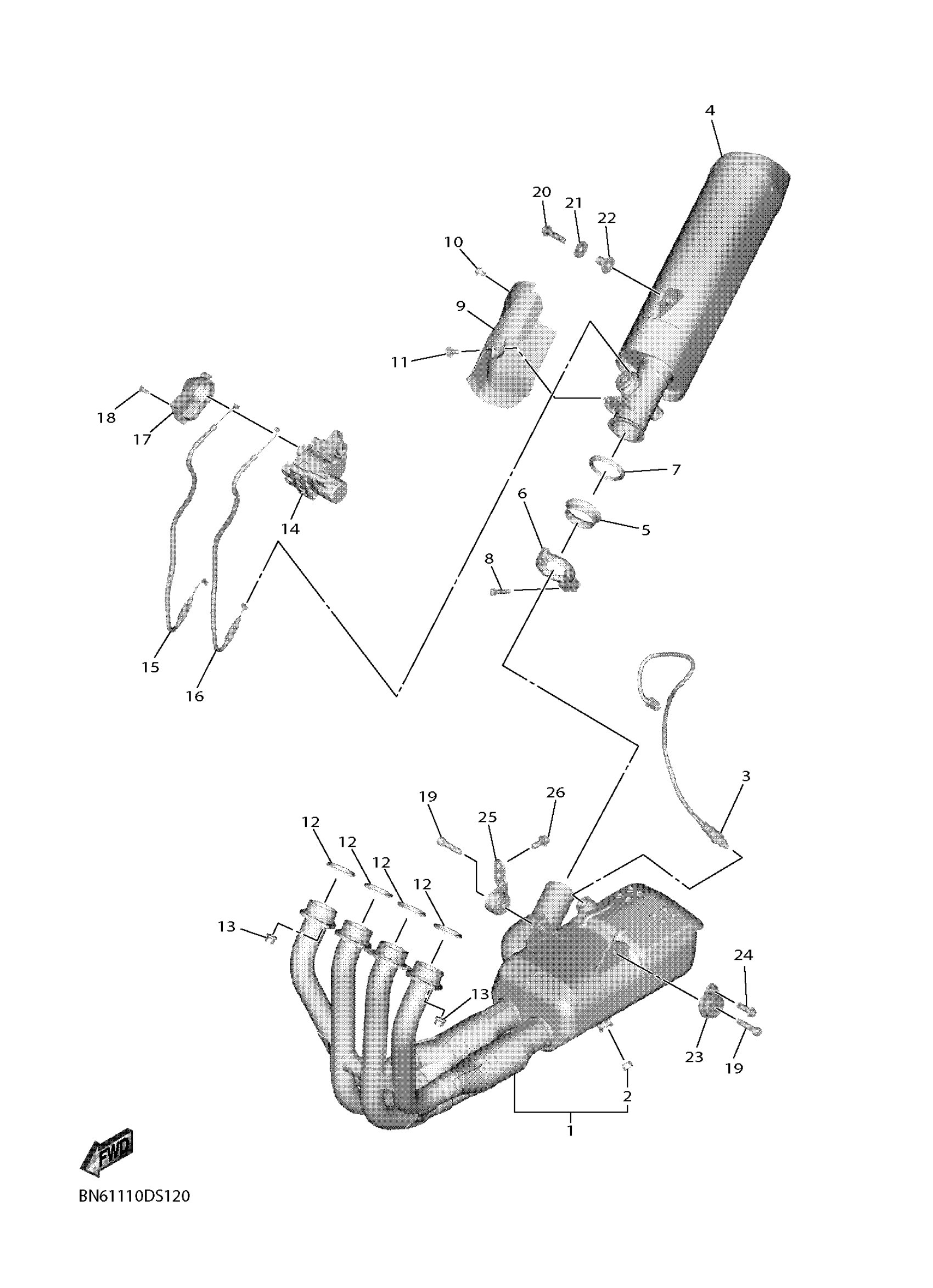

Yamaha YZFR6HW (YZFR6) BN6100 2017 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

13S-14610-30-00

Unavailable

2

DAMPER, LOCATING 1

4FM-24181-00-00

Unavailable

3

SENSOR, OXYGEN

13S-8592A-00-00

$435.99

4

SILENCER, EXHAUST

13S-14753-30-00

$1,439.99

5

RING, STOPPER

2C0-14618-00-00

$40.99

6

BAND, MUFFLER

2C0-14725-00-00

$80.99

7

GASKET, EXHAUST PIPE

2C0-14623-00-00

$19.99

8

BOLT, SOCKET

91314-06030-00

$8.49

9

PROTECTOR, MUFFLER 1

13S-14718-00-00

$100.99

10

BOLT,HEX. SOCKET BUTTON

90111-06100-00

$7.49

11

BOLT

90111-06038-00

$4.29

12

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

13

NUT (22U)

90179-08410-00

$9.49

14

SERVO MOTOR ASSY

2CR-85820-00-00

Unavailable

15

CABLE, PULLEY 1

BN6-1133E-00-00

$63.99

16

CABLE, PULLEY 2

BN6-1133F-00-00

Unavailable

17

COVER, SERVO MOTOR

5VY-85829-01-00

Unavailable

18

SCREW, PANHEAD TAPPING (682)

97780-50514-00

Unavailable

19

BOLT, SOCKET

91314-08035-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

Unavailable

21

WASHER, PLATE(3DM)

90201-087G2-00

Unavailable

22

COLLAR

90387-08021-00

Unavailable

23

STAY, MUFFLER 2

13S-21446-00-00

Unavailable

24

BOLT, FLANGE

90105-08054-00

Unavailable

25

STAY, MUFFLER 1

13S-21445-00-00

Unavailable

26

BOLT, FLANGE

95812-08020-00

Unavailable
