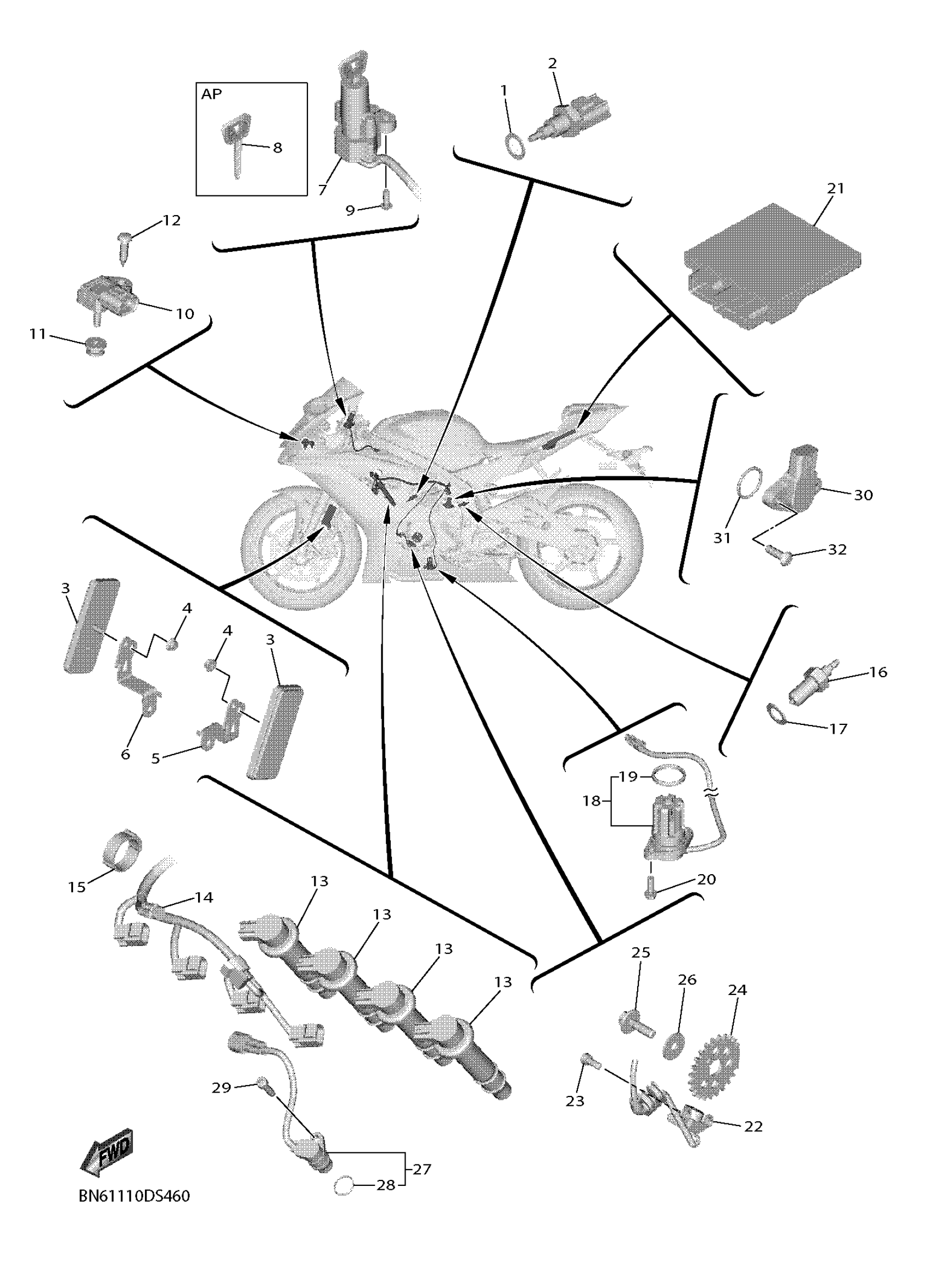

Yamaha YZFR6HW (YZFR6) BN6100 2017 ELECTRICAL 1 Diagram

#

Description
Price

1

WASHER, PLATE

90201-12790-00

$9.49

2

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

3

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

4

NUT, FLANGE

95702-05500-00

$0.38

5

BRACKET, REFLECTOR 1

BN6-85112-00-00

Unavailable

6

BRACKET, REFLECTOR 2

BN6-85122-00-00

Unavailable

7

MAIN SWITCH STEERING LOCK

BN6-82501-11-00

$206.99

8

BLANK KEY

4BH-82511-09-00

$30.99

9

BOLT

90109-08196-00

$8.49

10

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

11

GROMMET

90480-08006-00

$3.40

12

SCREW, TAPPING

97780-50620-00

Unavailable

13

IGNITION COIL ASSY

BN6-82310-00-00

$124.99

14

WIRE, SUB LEAD

BN6-82309-00-00

Unavailable

15

CLAMP

90464-28003-00

$4.46

16

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

17

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

18

OIL LEVEL GAUGE ASSY

5VX-85720-01-00

Unavailable

19

O-RING

5VY-8A8E0-00-00

Unavailable

20

BOLT, FLANGE

95022-06016-00

Unavailable

21

ENGINE CONTROL UNIT ASSY

BN6-8591A-12-00

Unavailable

22

PICK-UP ASSY

BN6-81670-03-00

Unavailable

23

BOLT (33M)

91312-06014-00

Unavailable

24

ROTOR

2C0-81673-01-00

Unavailable

25

BOLT, WASHER BASED

90105-08113-00

Unavailable

26

WASHER, PLATE

90201-08054-00

Unavailable

27

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

28

O-RING

4D9-81168-00-00

Unavailable

29

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

30

SENSOR, GEAR POSITION

2CR-85899-10-00

Unavailable

31

O-RING

93210-17008-00

Unavailable

32

SCREW

90149-05038-00

Unavailable
