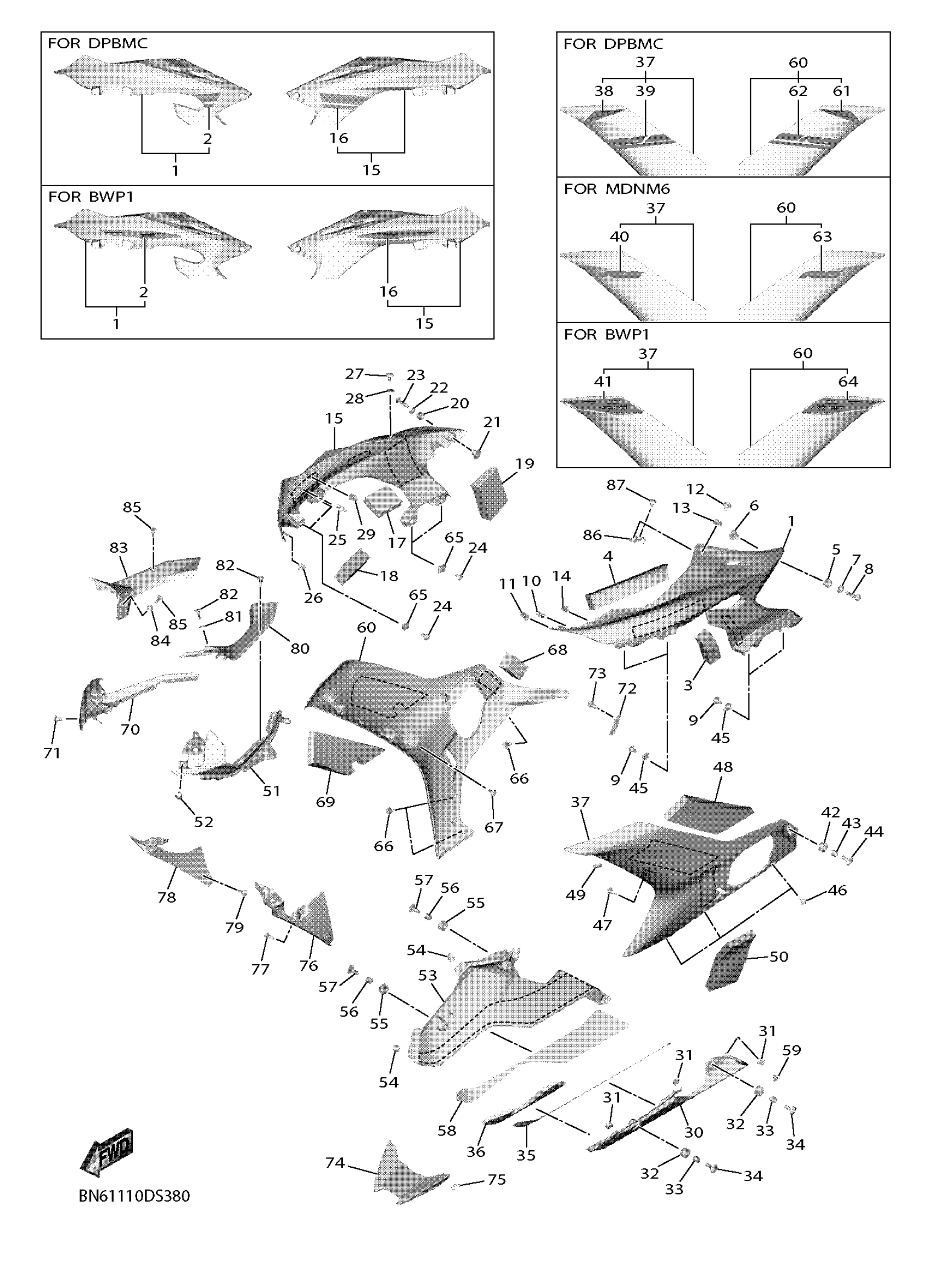

Yamaha YZFR6HW (YZFR6) BN6100 2017 COWLING 2 Diagram

#

Description
Price

1

COVER 7

BN6-2117V-00-P1

$344.99

3

DAMPER, PLATE

90520-30002-00

$1.91

4

SEAL 12

7CH-22889-00-00

$1.87

5

GROMMET

90480-12613-00

$24.99

6

COLLAR(36Y)

90387-067K8-00

$7.49

7

WASHER, PLATE 8087752500

90201-07081-00

$10.49

8

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

9

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

10

NUT, SPRING

90183-060A6-00

$5.49

11

CLAMP

90464-07018-00

$0.65

12

SCREW(3XV)

90149-06298-00

$5.60

13

WASHER, PLATE (35R)

90201-060H9-00

$4.72

14

CLIP

90468-04001-00

$0.69

15

COVER 8

BN6-2117W-00-P1

Unavailable

17

DAMPER, PLATE

90520-60001-00

$1.91

18

DAMPER, PLATE

90520-30008-00

Unavailable

19

SEAL 26

7CH-2289T-00-00

Unavailable

20

GROMMET

90480-12613-00

$24.99

21

COLLAR(36Y)

90387-067K8-00

$7.49

22

WASHER, PLATE 8087752500

90201-07081-00

$10.49

23

BOLT,HEX. SOCKET BUTTON

90111-06063-00

$8.49

24

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

25

NUT, SPRING

90183-060A6-00

$5.49

26

CLAMP

90464-07018-00

$0.65

27

SCREW(3XV)

90149-06298-00

$5.60

28

WASHER, PLATE (35R)

90201-060H9-00

$4.72

29

CLIP

90468-04001-00

$0.69

30

COVER, UNDER

BN6-28385-00-P1

Unavailable

31

NUT, SPRING

90183-050A6-00

Unavailable

32

GROMMET

90480-14003-00

Unavailable

33

COLLAR

90387-06260-00

Unavailable

34

BOLT

90111-06040-00

Unavailable

35

SEAT 1

BN6-2838G-00-00

Unavailable

36

DAMPER, LOCATING 1

BN6-2836T-00-00

Unavailable

37

PANEL ASSY 1

BN6-W283U-10-P1

Unavailable

40

EMBLEM

BN6-28328-10-00

Unavailable

42

GROMMET

90480-14003-00

Unavailable

43

COLLAR

90387-06260-00

Unavailable

44

BOLT

90111-06040-00

Unavailable

45

NUT, SPRING

90183-050A6-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

47

RIVET

90269-06001-00

Unavailable

48

DAMPER 2

BN6-28416-00-00

Unavailable

49

DAMPER

5YT-24665-00-00

Unavailable

50

DAMPER, PLATE

90520-20013-00

Unavailable

51

COVER 1

BN6-28219-00-00

Unavailable

52

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

53

COVER, UNDER 2

BN6-28395-00-P1

Unavailable

54

NUT, SPRING

90183-050A6-00

Unavailable

55

GROMMET

90480-14003-00

Unavailable

56

COLLAR

90387-06260-00

Unavailable

57

BOLT

90111-06040-00

Unavailable

58

SEAT 2

BN6-2848K-00-00

Unavailable

59

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

60

PANEL ASSY 2

BN6-W283V-10-P1

Unavailable

63

EMBLEM

BN6-28338-10-00

Unavailable

65

NUT, SPRING

90183-050A6-00

Unavailable

66

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

67

RIVET

90269-06001-00

Unavailable

68

DAMPER, PLATE

90520-30007-00

Unavailable

69

DAMPER 4

BN6-28435-00-00

Unavailable

70

COVER 2

BN6-28229-00-00

Unavailable

71

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

72

BRACKET 4

BN6-2836G-00-00

Unavailable

73

BOLT, FLANGE

95817-06014-00

Unavailable

74

PANEL, INNER 1

BN6-2836K-00-00

Unavailable

75

NUT, SPRING

90183-050A6-00

Unavailable

76

PANEL, INNER 2

BN6-2836L-00-00

Unavailable

77

RIVET

90269-06008-00

Unavailable

78

PANEL, INNER 3

BN6-2836M-00-00

Unavailable

79

RIVET

90269-06008-00

Unavailable

80

PANEL, CONSOLE 1

BN6-2837L-00-00

Unavailable

81

DAMPER

5SL-84753-00-00

Unavailable

82

RIVET

90269-06008-00

Unavailable

83

PANEL, CONSOLE 2

BN6-2837M-00-00

Unavailable

84

DAMPER

5SL-84753-00-00

Unavailable

85

RIVET

90269-06008-00

Unavailable

86

STAY 2

BN6-28357-00-00

Unavailable

87

BOLT

90111-05003-00

Unavailable
