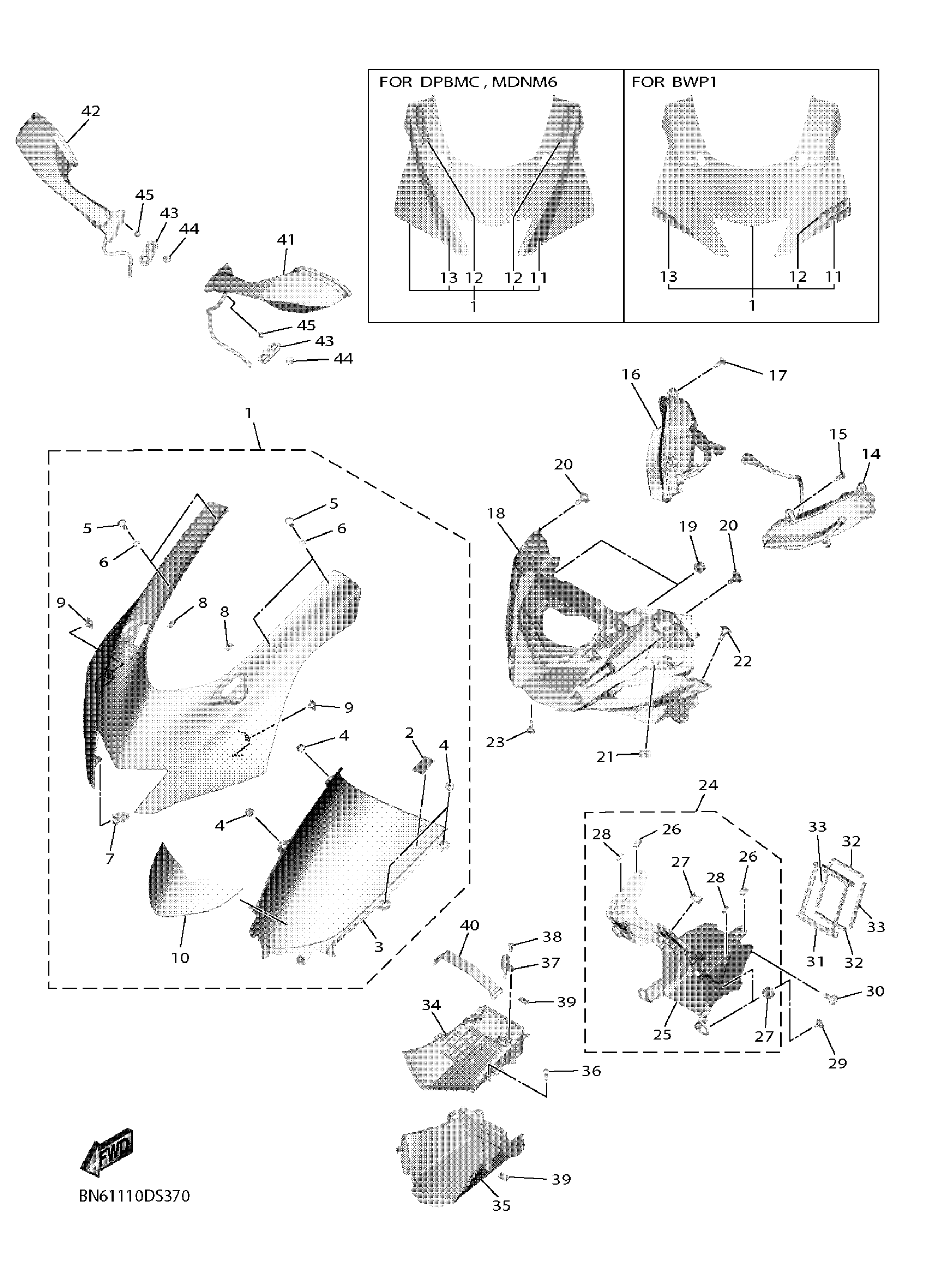

Yamaha YZFR6HW (YZFR6) BN6100 2017 COWLING 1 Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

BN6-Y283G-20-P1

Unavailable

2

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

3

WINDSHIELD

BN6-28381-00-00

$111.99

4

NUT(1KT)

90179-05523-00

$8.49

5

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

6

. WASHER, PLATE

90202-05088-00

Unavailable

7

CLAMP

90464-07018-00

$0.65

8

HOOK 1

20S-2814H-11-00

$3.17

9

NUT, SPRING

90183-060A6-00

$5.49

10

GRAPHIC, 18

BN6-2832P-00-00

$72.99

11

GRAPHIC, 12

BN6-2832K-10-00

Unavailable

12

EMBLEM, YAMAHA

99241-00100-00

$4.19

13

GRAPHIC, 13

BN6-2832L-10-00

Unavailable

14

PILOT LIGHT ASSY 1

BN6-84301-00-00

$405.99

15

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

16

PILOT LIGHT ASSY 2

BN6-84302-00-00

Unavailable

17

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

18

BODY, COWLING

BN6-2830A-00-00

Unavailable

19

GROMMET

90480-10003-00

Unavailable

20

BOLT

90109-06061-00

Unavailable

21

NUT, SPRING

90183-050A6-00

Unavailable

22

BOLT

90109-06061-00

Unavailable

23

RIVET

90269-06008-00

Unavailable

24

LEG SHIELD STAY SET

BN6-28320-00-00

Unavailable

25

STAY 1

BN6-28356-00-00

Unavailable

26

HOOK 1

20S-2814H-11-00

$3.17

27

DAMPER

4XV-83513-00-00

Unavailable

28

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

29

SCREW, ROUND TAPPING

90160-05006-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-06116-00

Unavailable

31

JOINT

2C0-28342-02-00

Unavailable

32

DAMPER 1

2C0-28217-00-00

Unavailable

33

DAMPER 2

2C0-28227-00-00

Unavailable

34

DUCT 2

BN6-2838R-01-00

Unavailable

35

DUCT 3

BN6-2838T-01-00

Unavailable

36

SCREW, TRUSS TAP.

97707-40016-00

Unavailable

37

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

38

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

39

DAMPER 2

51Y-21639-00-00

Unavailable

40

BAND, BATTERY

133-82131-00-00

Unavailable

41

REAR VIEW MIRROR ASSY (LEFT)

BN6-26280-11-00

Unavailable

42

REAR VIEW MIRROR ASSY (RIGHT)

BN6-26290-11-00

Unavailable

43

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

44

NUT, CROWN(1FN)

90176-06055-00

Unavailable

45

COLLAR(J45)

90387-064T3-00

Unavailable
