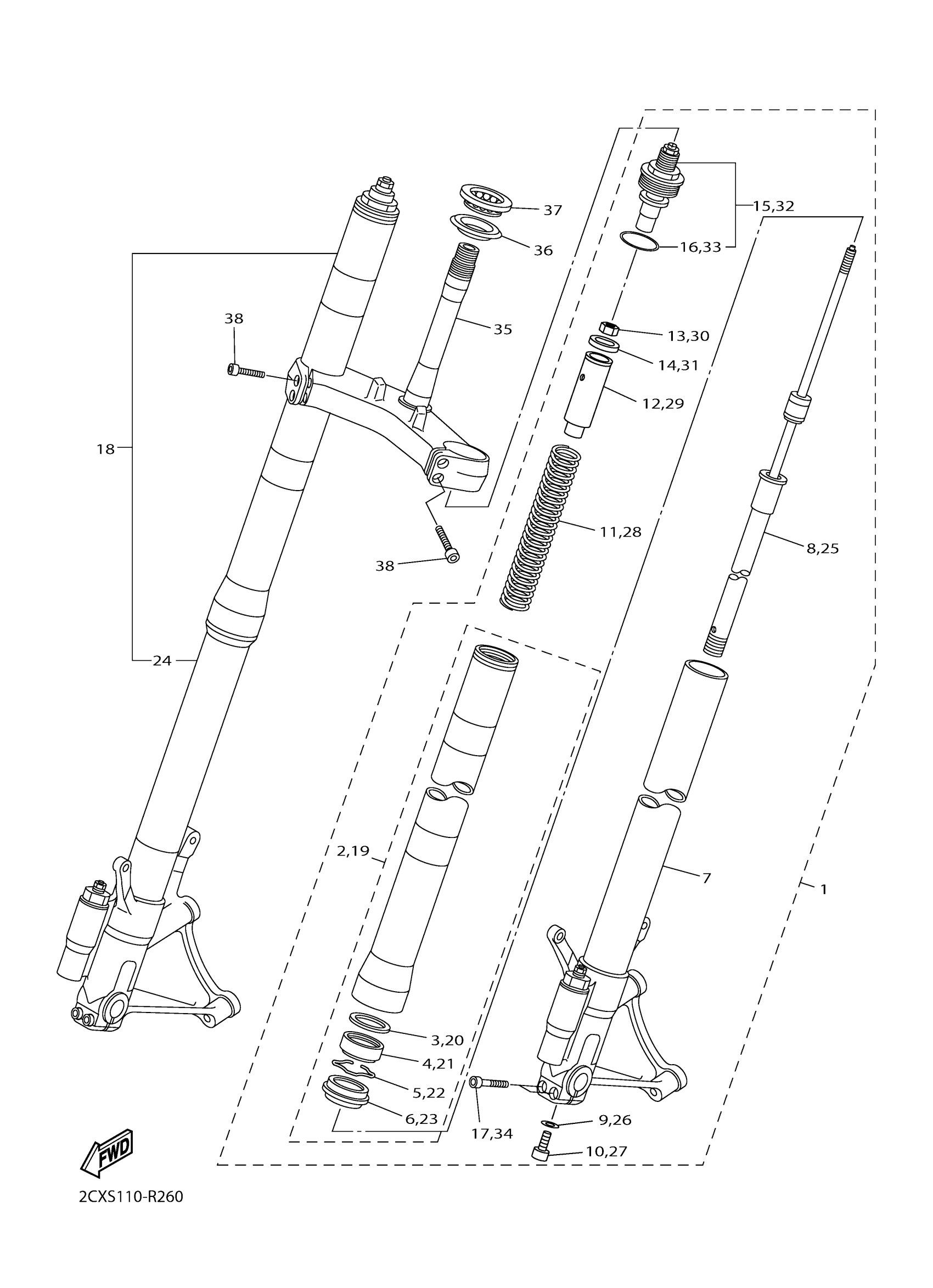

Yamaha YZFR6GY (YZFR6 60TH ANNIVERSARY) 2CXW 2016 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2CX-23102-00-00

Unavailable

2

TUBE, OUTER

2CX-23136-00-00

Unavailable

3

WASHER, OIL SEAL

5JJ-23146-00-00

$16.36

4

OIL SEAL

4EB-23145-01-00

$22.64

5

CLIP, OIL SEAL

26H-23156-00-00

$6.17

6

SEAL, DUST

4EB-23144-00-00

$18.18

7

INNER TUBE COMP.1

2CX-23110-00-00

Unavailable

8

CYLINDER COMP., FRONT FORK

2CX-23170-00-00

Unavailable

9

GASKET

509-23158-L0-00

$13.39

10

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

11

. SPRING, FRONT FORK

2CX-23141-00-00

Unavailable

12

SPACER

5VY-23118-00-00

Unavailable

13

NUT

3LC-23357-00-00

$6.33

14

WASHER

5VY-12277-00-00

$10.20

15

BOLT, CAP

5VY-23111-00-00

$322.89

16

O-RING

3XJ-23147-L0-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

FRONT FORK ASSY (R.H)

2CX-23103-00-00

Unavailable

19

TUBE, OUTER

2CX-23136-00-00

Unavailable

20

WASHER, OIL SEAL

5JJ-23146-00-00

$16.36

21

OIL SEAL

4EB-23145-01-00

$22.64

22

CLIP, OIL SEAL

26H-23156-00-00

$6.17

23

SEAL, DUST

4EB-23144-00-00

$18.18

24

INNER TUBE COMP.2

2CX-23120-00-00

Unavailable

25

CYLINDER COMP., FRONT FORK

2CX-23170-00-00

Unavailable

26

GASKET

509-23158-L0-00

$13.39

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

28

. SPRING, FRONT FORK

2CX-23141-00-00

Unavailable

29

SPACER

5VY-23118-00-00

Unavailable

30

NUT

3LC-23357-00-00

$6.33

31

WASHER

5VY-12277-00-00

$10.20

32

BOLT, CAP

5VY-23111-00-00

$322.89

33

O-RING

3XJ-23147-L0-00

Unavailable

34

BOLT,SOCKET

91314-08040-00

Unavailable

35

UNDER BRACKET COMP.

2CX-23340-00-00

Unavailable

36

SEAL, STEERING

3FV-23462-00-00

Unavailable

37

BEARING

93399-99957-00

Unavailable

38

BOLT,SOCKET

91314-08030-00

Unavailable

39

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
