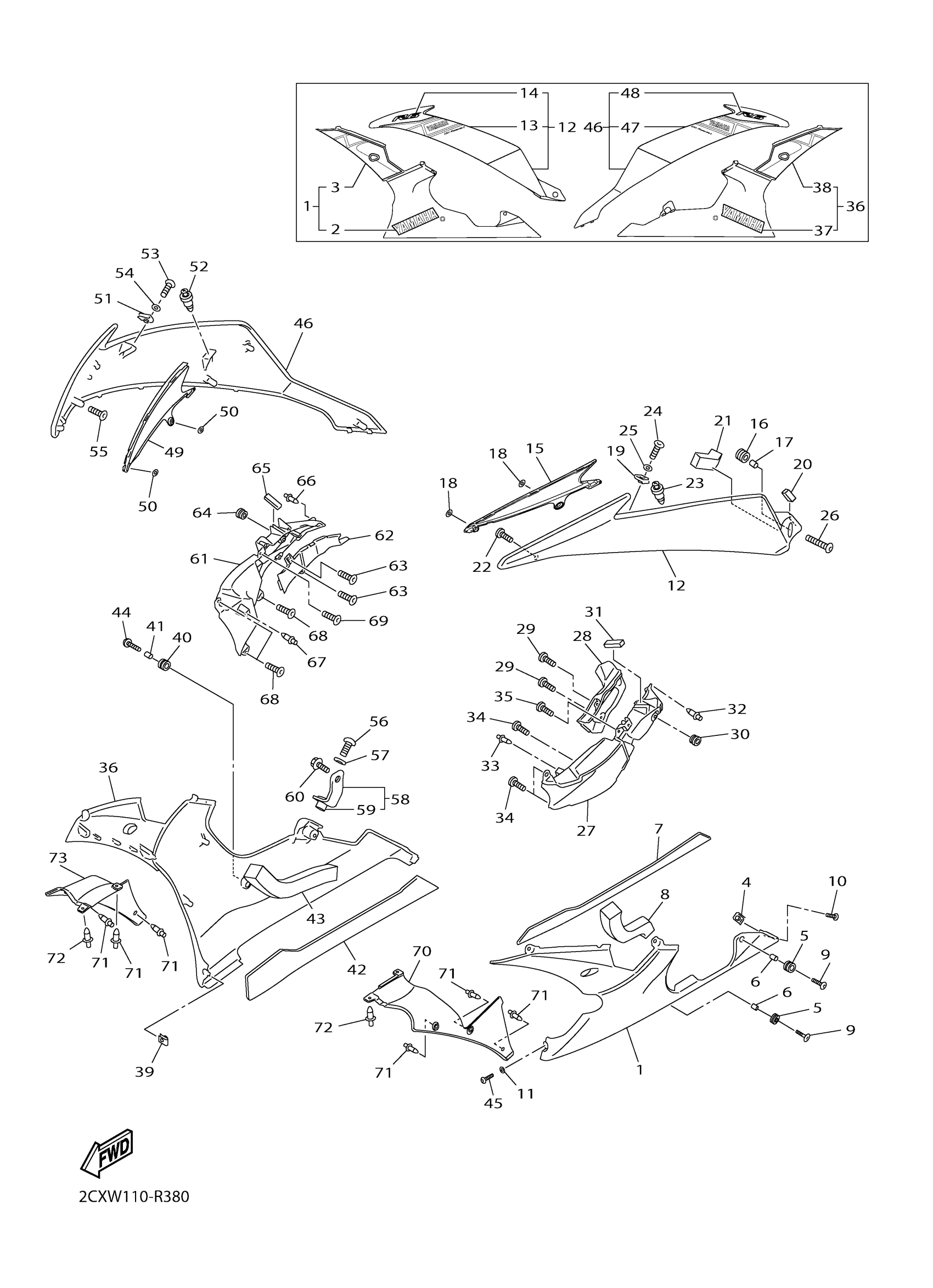

Yamaha YZFR6GY (YZFR6 60TH ANNIVERSARY) 2CXW 2016 COWLING 2 Diagram

#

Description
Price

1

UNDER COVER COMP. 1

13S-W2838-V0-33

Unavailable

2

EMBLEM, YAMAHA

99241-00240-00

Unavailable

3

GRAPHIC, UNDER COVER 1

2CX-283A1-50-00

$58.99

4

NUT, SPRING

90183-050A6-00

$8.49

5

GROMMET

90480-14003-00

$8.49

6

COLLAR

90387-06260-00

$8.49

7

SEAT 1

13S-2838G-00-00

Unavailable

8

DAMPER, PLATE

90520-50002-00

Unavailable

9

BOLT

90111-06040-00

$4.29

10

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

11

WASHER, PLATE(1KT)

90202-05180-00

$10.49

12

PANEL ASSY 1

13S-W283U-U0-0X

$652.99

13

GRAPHIC 1

2CX-28391-A0-00

$114.99

14

EMBLEM

2CX-28328-40-00

$7.99

15

COVER 1

13S-28219-00-00

Unavailable

16

GROMMET

90480-14003-00

$8.49

17

COLLAR

90387-06260-00

$8.49

18

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

19

NUT, SPRING

90183-050A6-00

$8.49

20

DAMPER 1

13S-28415-00-00

Unavailable

21

DAMPER, PLATE

90520-50001-00

Unavailable

22

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

23

RIVET

90269-07007-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

25

WASHER, PLATE(1KT)

90202-05180-00

$10.49

26

BOLT

90111-06040-00

$4.29

27

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

28

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

29

SCREW, TAPPING

97702-50016-00

Unavailable

30

GROMMET(4DN)

90480-01558-00

Unavailable

31

DAMPER 1

13S-28217-00-00

Unavailable

32

RIVET

90269-06008-00

Unavailable

33

RIVET

90269-06081-00

Unavailable

34

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

35

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

36

UNDER COVER COMP. 2

13S-W2839-V0-33

Unavailable

37

EMBLEM, YAMAHA

99241-00240-00

Unavailable

38

GRAPHIC, UNDER COVER 2

2CX-283A2-50-00

Unavailable

39

NUT, SPRING

90183-050A6-00

$8.49

40

GROMMET

90480-14003-00

$8.49

41

COLLAR

90387-06260-00

$8.49

42

SEAT 2

13S-2848K-00-00

Unavailable

43

DAMPER 10

13S-2847R-00-00

Unavailable

44

BOLT

90111-06040-00

$4.29

45

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

46

PANEL ASSY 2

13S-W283V-U0-0X

Unavailable

47

GRAPHIC 2

2CX-28392-A0-00

Unavailable

48

EMBLEM

2CX-28328-40-00

$7.99

49

COVER 2

13S-28229-00-00

Unavailable

50

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

51

NUT, SPRING

90183-050A6-00

$8.49

52

RIVET

90269-07007-00

Unavailable

53

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

54

WASHER, PLATE(1KT)

90202-05180-00

$10.49

55

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

56

BOLT

90109-06207-00

Unavailable

57

WASHER, PLATE

90202-10024-00

Unavailable

58

BRACKET 4

13S-2836G-00-00

Unavailable

59

NUT

90179-06059-00

Unavailable

60

BOLT, FLANGE

95817-06014-00

Unavailable

61

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

62

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

63

SCREW, TAPPING

97702-50016-00

Unavailable

64

GROMMET(4DN)

90480-01558-00

Unavailable

65

DAMPER 1

13S-28217-00-00

Unavailable

66

RIVET

90269-06008-00

Unavailable

67

RIVET

90269-06081-00

Unavailable

68

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

69

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

70

PANEL, INNER 2

13S-2836L-00-00

Unavailable

71

RIVET

90269-06008-00

Unavailable

72

RIVET

90269-06002-00

Unavailable

73

PANEL, INNER 3

13S-2836M-00-00

Unavailable
