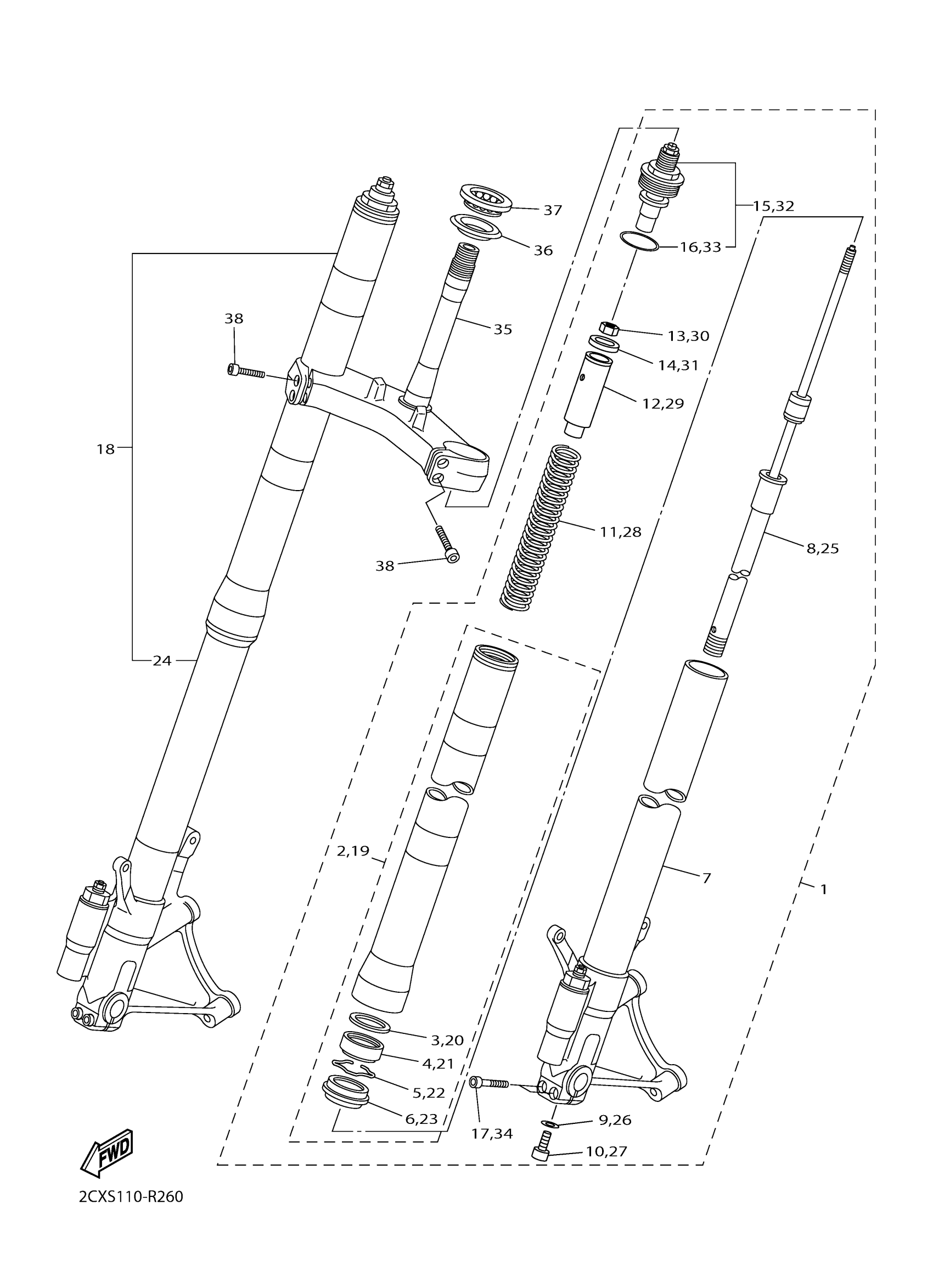

Yamaha YZFR6GL (YZFR6) 2CXS0 2016 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2CX-23102-10-00

Unavailable

2

TUBE, OUTER

2CX-23136-10-00

Unavailable

3

WASHER, OIL SEAL

5JJ-23146-00-00

$18.49

4

OIL SEAL

4EB-23145-01-00

$28.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

SEAL, DUST

4EB-23144-00-00

$22.99

7

INNER TUBE COMP.1

2CX-23110-00-00

Unavailable

8

CYLINDER COMP., FRONT FORK

2CX-23170-00-00

Unavailable

9

GASKET

509-23158-L0-00

$16.49

10

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

11

. SPRING, FRONT FORK

2CX-23141-00-00

Unavailable

12

SPACER

5VY-23118-00-00

Unavailable

13

NUT

3LC-23357-00-00

$6.99

14

WASHER

5VY-12277-00-00

$12.99

15

BOLT, CAP

5VY-23111-00-00

$462.99

16

O-RING

3XJ-23147-L0-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

FRONT FORK ASSY (R.H)

2CX-23103-10-00

Unavailable

19

TUBE, OUTER

2CX-23136-10-00

Unavailable

20

WASHER, OIL SEAL

5JJ-23146-00-00

$18.49

21

OIL SEAL

4EB-23145-01-00

$28.99

22

CLIP, OIL SEAL

26H-23156-00-00

$7.99

23

SEAL, DUST

4EB-23144-00-00

$22.99

24

INNER TUBE COMP.2

2CX-23120-00-00

Unavailable

25

CYLINDER COMP., FRONT FORK

2CX-23170-00-00

Unavailable

26

GASKET

509-23158-L0-00

$16.49

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

28

. SPRING, FRONT FORK

2CX-23141-00-00

Unavailable

29

SPACER

5VY-23118-00-00

Unavailable

30

NUT

3LC-23357-00-00

$6.99

31

WASHER

5VY-12277-00-00

$12.99

32

BOLT, CAP

5VY-23111-00-00

$462.99

33

O-RING

3XJ-23147-L0-00

Unavailable

34

BOLT,SOCKET

91314-08040-00

Unavailable

35

UNDER BRACKET COMP.

2CX-23340-00-00

Unavailable

36

SEAL, STEERING

3FV-23462-00-00

Unavailable

37

BEARING

93399-99957-00

Unavailable

38

BOLT,SOCKET

91314-08030-00

Unavailable

39

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
