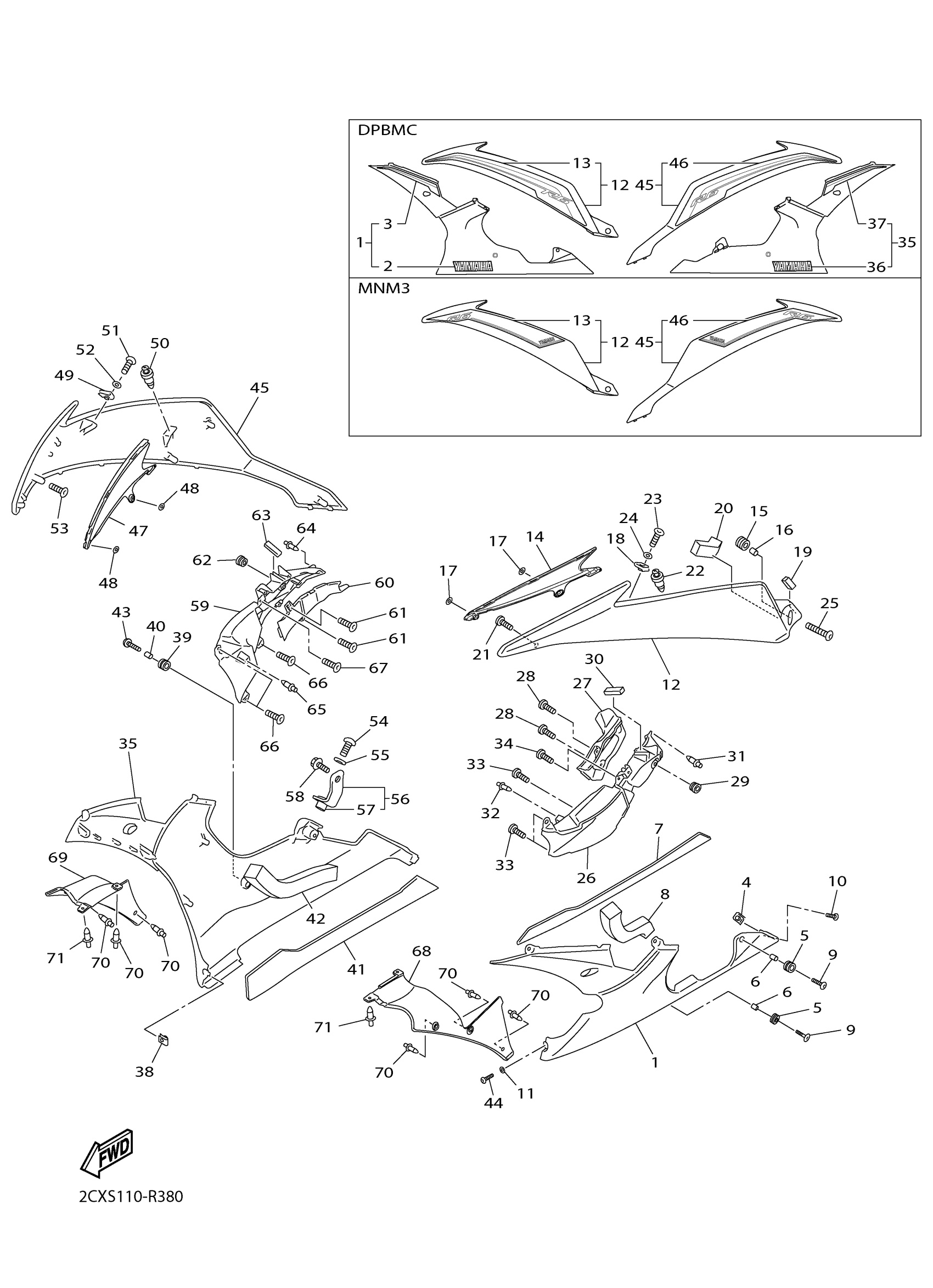

Yamaha YZFR6GL (YZFR6) 2CXS0 2016 COWLING 2 Diagram

#

Description
Price

1

COVER, UNDER

13S-28385-00-P6

$304.99

4

NUT, SPRING

90183-050A6-00

$8.49

5

GROMMET

90480-14003-00

$8.49

6

COLLAR

90387-06260-00

$8.49

7

SEAT 1

13S-2838G-00-00

Unavailable

8

DAMPER, PLATE

90520-50002-00

Unavailable

9

BOLT

90111-06040-00

$4.29

10

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

11

WASHER, PLATE(1KT)

90202-05180-00

$10.49

12

PANEL ASSY 1

13S-W283U-T0-PA

Unavailable

13

GRAPHIC 1

2CX-28391-90-00

Unavailable

14

COVER 1

13S-28219-00-00

Unavailable

15

GROMMET

90480-14003-00

$8.49

16

COLLAR

90387-06260-00

$8.49

17

NUT, SPRING (6E5)

90183-05M02-00

$0.33

18

NUT, SPRING

90183-050A6-00

$8.49

19

DAMPER 1

13S-28415-00-00

Unavailable

20

DAMPER, PLATE

90520-50001-00

Unavailable

21

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

22

RIVET

90269-07007-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

24

WASHER, PLATE(1KT)

90202-05180-00

$10.49

25

BOLT

90111-06040-00

$4.29

26

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

27

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

28

SCREW, TAPPING

97702-50016-00

Unavailable

29

GROMMET(4DN)

90480-01558-00

Unavailable

30

DAMPER 1

13S-28217-00-00

Unavailable

31

RIVET

90269-06008-00

Unavailable

32

RIVET

90269-06081-00

Unavailable

33

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

34

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

35

COVER, UNDER 2

13S-28395-00-P6

Unavailable

38

NUT, SPRING

90183-050A6-00

$8.49

39

GROMMET

90480-14003-00

$8.49

40

COLLAR

90387-06260-00

$8.49

41

SEAT 2

13S-2848K-00-00

Unavailable

42

DAMPER 10

13S-2847R-00-00

Unavailable

43

BOLT

90111-06040-00

$4.29

44

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

45

PANEL ASSY 2

13S-W283V-T0-PA

Unavailable

46

GRAPHIC 2

2CX-28392-90-00

Unavailable

47

COVER 2

13S-28229-00-00

Unavailable

48

NUT, SPRING (6E5)

90183-05M02-00

$0.33

49

NUT, SPRING

90183-050A6-00

$8.49

50

RIVET

90269-07007-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

52

WASHER, PLATE(1KT)

90202-05180-00

$10.49

53

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

54

BOLT

90109-06207-00

Unavailable

55

WASHER, PLATE

90202-10024-00

Unavailable

56

BRACKET 4

13S-2836G-00-00

Unavailable

57

NUT

90179-06059-00

Unavailable

58

BOLT, FLANGE

95817-06014-00

Unavailable

59

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

60

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

61

SCREW, TAPPING

97702-50016-00

Unavailable

62

GROMMET(4DN)

90480-01558-00

Unavailable

63

DAMPER 1

13S-28217-00-00

Unavailable

64

RIVET

90269-06008-00

Unavailable

65

RIVET

90269-06081-00

Unavailable

66

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

67

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

68

PANEL, INNER 2

13S-2836L-00-00

Unavailable

69

PANEL, INNER 3

13S-2836M-00-00

Unavailable

70

RIVET

90269-06008-00

Unavailable

71

RIVET

90269-06002-00

Unavailable
