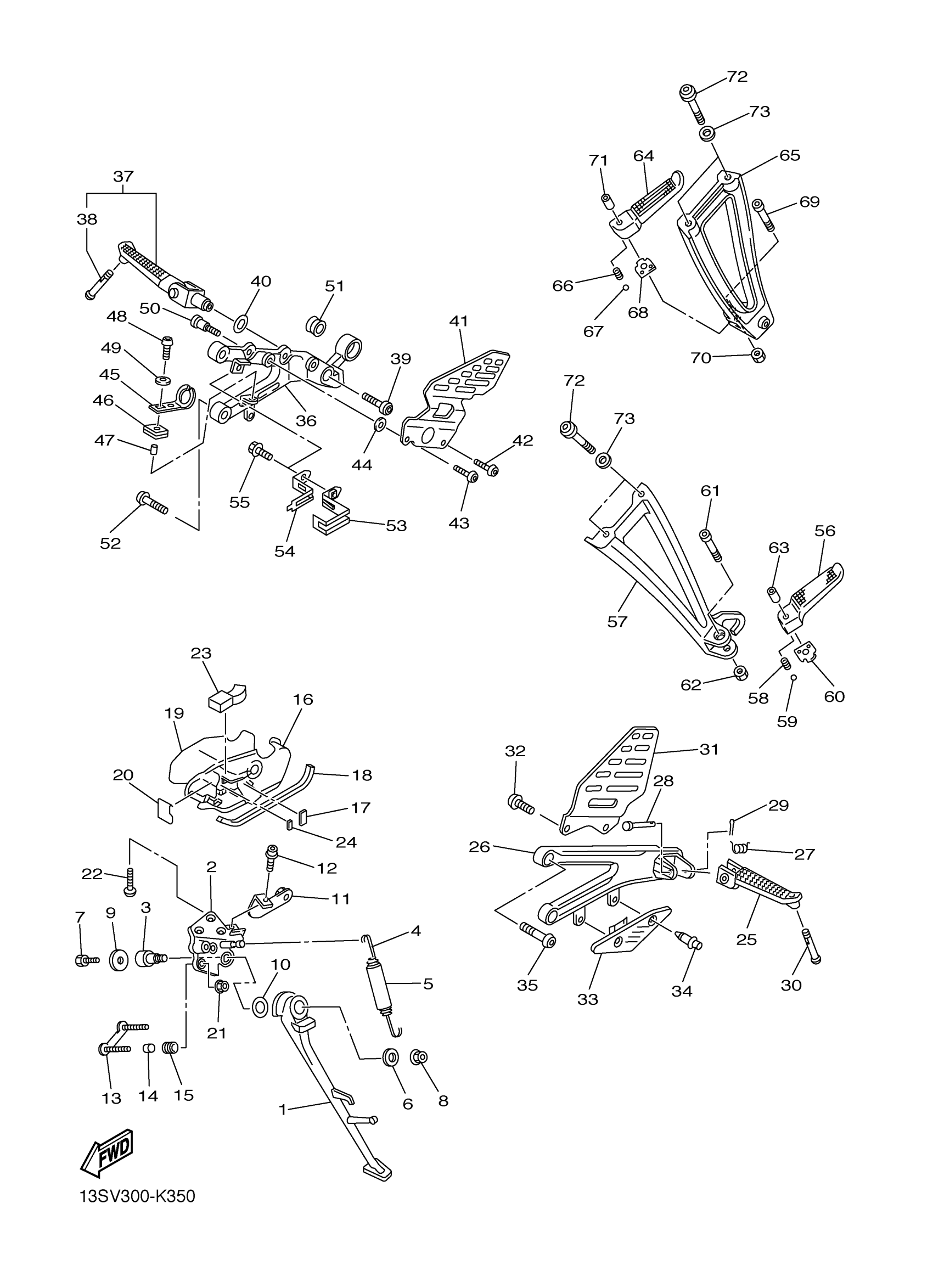

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2C0-27311-10-00

$294.99

2

BRACKET, SIDE STAND

2C0-27321-10-00

Unavailable

3

GUIDE, SIDE STAND

2C0-27351-00-00

$63.99

4

SPRING, TENSION

90506-18008-00

$15.99

5

HOSE (L60)

90445-19002-00

$7.49

6

WASHER, PLATE

90201-10035-00

$4.19

7

BOLT, HEXAGON

97017-08020-00

$9.49

8

NUT, S/L FLANGE

95602-10200-00

$4.82

9

WASHER, PLATE

90201-08050-00

$5.60

10

WASHER, PLATE (22F)

90201-146F9-00

$7.49

11

BRACKET 3

13S-2836F-00-00

Unavailable

12

BOLT, FLANGE

95817-06014-00

Unavailable

13

BRACKET 1

2C0-27263-00-00

$16.49

14

COLLAR

90387-05025-00

$7.49

15

GROMMET

90480-11006-00

$4.41

16

COVER 1

2C0-27453-00-00

Unavailable

17

DAMPER, FOOTREST

2C0-27414-00-00

Unavailable

18

PLATE, FOOTREST

2C0-27415-00-00

Unavailable

19

SEAL 1

2C0-28428-00-00

Unavailable

20

SEAL 2

2C0-28429-00-00

Unavailable

21

NUT, S/L FLANGE

95607-05200-00

Unavailable

22

BOLT, BUTTON HEAD

92012-08030-00

Unavailable

23

DAMPER 3

2C0-28425-00-00

Unavailable

24

DAMPER, RUBBER 1

2C0-21485-00-00

Unavailable

25

FOOTREST

2C0-27451-00-00

Unavailable

26

BRACKET 2

2C0-27442-10-00

Unavailable

27

SPRING, TORSION

90508-18134-00

Unavailable

28

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

BOLT

90109-08225-00

Unavailable

31

PLATE 1

2C0-27445-10-00

Unavailable

32

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

33

PROTECTOR

2C0-27491-00-00

Unavailable

34

RIVET

90269-06008-00

Unavailable

35

BOLT

90109-085G6-00

Unavailable

36

BRACKET 3

2C0-27443-10-00

Unavailable

37

FRONT FOOTREST ASSY (RIGHT)

2C0-27420-10-00

Unavailable

38

BOLT

90109-08225-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

40

WASHER, CLAW

90214-13002-00

Unavailable

41

PLATE 2

13S-27446-10-00

Unavailable

42

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

43

BOLT

90111-06046-00

Unavailable

44

COLLAR

90387-06215-00

Unavailable

45

STAY, STOP SWITCH

13S-2144G-00-00

Unavailable

46

GROMMET(4SV)

90480-12607-00

Unavailable

47

COLLAR 8121444900

90387-06023-00

Unavailable

48

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

49

WASHER, PLATE

90201-06380-00

Unavailable

50

BOLT(4BP)

90109-066F0-00

Unavailable

51

DAMPER, MUFFLER

2C0-14747-00-00

Unavailable

52

BOLT

90109-085G6-00

Unavailable

53

BRACKET 8

2C0-2116K-00-00

Unavailable

54

BRACKET 9

2C0-2116L-00-00

Unavailable

55

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

56

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

57

BRACKET 4

2C0-2741L-11-00

Unavailable

58

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

59

BALL

93501-04011-00

Unavailable

60

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

61

BOLT(J17)

91312-06035-00

Unavailable

62

NUT, U FLANGE

95604-06200-00

Unavailable

63

COLLAR (8H9)

90387-06697-00

Unavailable

64

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

65

BRACKET 5

2C0-2742L-11-00

Unavailable

66

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

67

BALL

93501-04011-00

Unavailable

68

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

69

BOLT(J17)

91312-06035-00

Unavailable

70

NUT, U FLANGE

95604-06200-00

Unavailable

71

COLLAR (8H9)

90387-06697-00

Unavailable

72

BOLT (3XF1)

90110-08220-00

Unavailable

73

WASHER, FOOTREST

13S-27417-00-00

Unavailable
