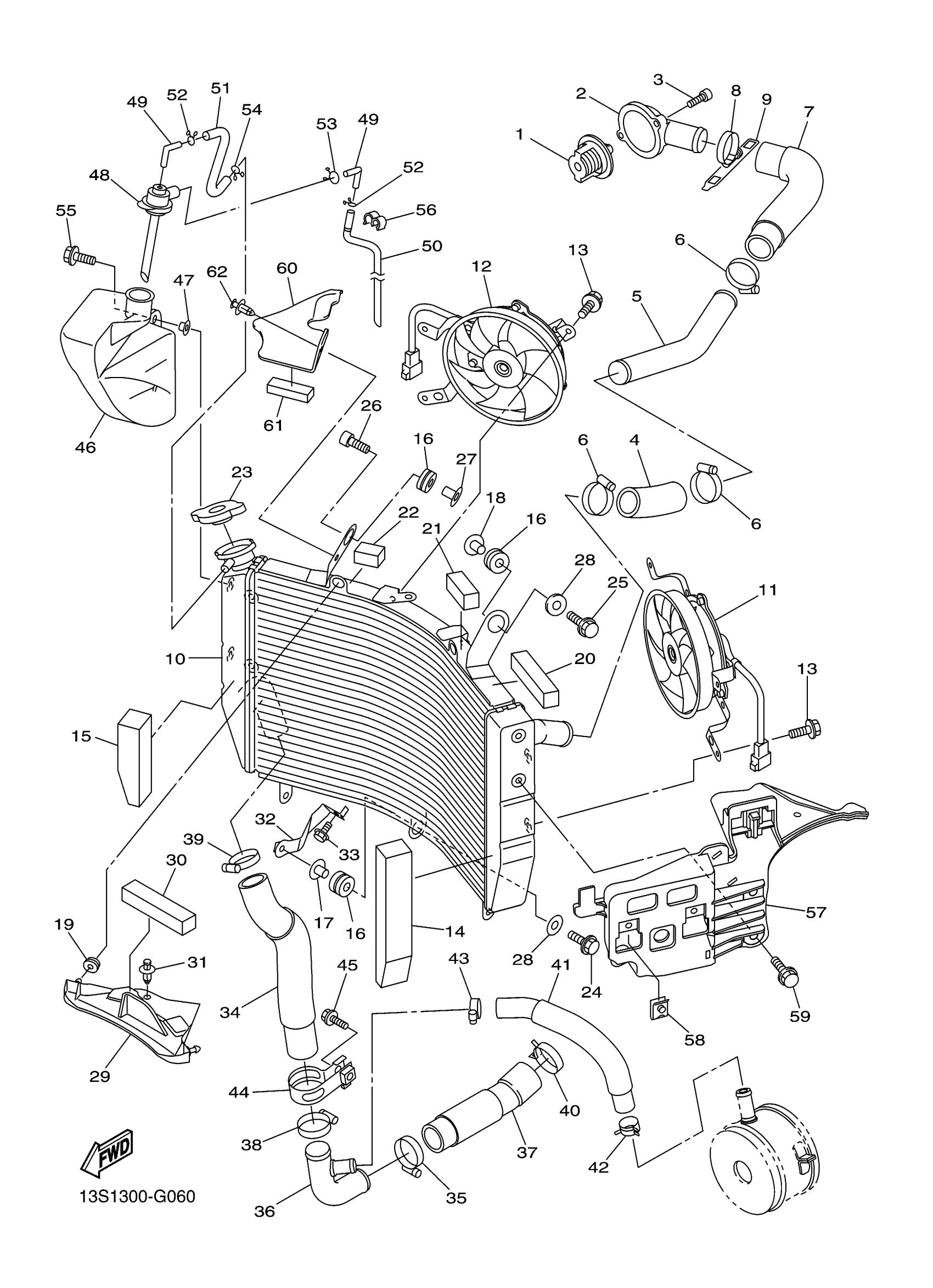

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5SL-12410-01-00

$55.99

2

COVER, THERMOSTAT

2C0-12413-00-00

$28.99

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE 3

2C0-12578-01-00

$4.42

5

PIPE 1

2C0-12481-00-00

$57.99

6

HOSE CLAMP ASSY

90450-35001-00

$5.60

7

HOSE 8

2C0-12552-00-00

$40.99

8

HOSE CLAMP ASSY

90450-35001-00

$5.60

9

COVER 2

5GV-1246E-00-00

$4.68

10

RADIATOR ASSY

13S-12461-00-00

Unavailable

11

BLOWER ASSY

2C0-12405-00-00

Unavailable

12

BLOWER ASSY

2C0-12405-10-00

Unavailable

13

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

14

DAMPER, AIR SHROUD 2

2C0-12659-00-00

$6.99

15

DAMPER, AIR SHROUD 3

2C0-12668-00-00

$6.99

16

GROMMET (29L)

90480-15363-00

Unavailable

17

COLLAR 437216330000

90387-07391-00

Unavailable

18

COLLAR

90387-0614M-00

Unavailable

19

GROMMET

90480-11005-00

Unavailable

20

DAMPER, AIR SHROUD 2

13S-12659-00-00

Unavailable

21

DAMPER, AIR SHROUD 5

13S-12678-00-00

Unavailable

22

DAMPER, SHROUD 7

13S-12688-00-00

Unavailable

23

CAP, RADIATOR

5SL-12462-01-00

Unavailable

24

BOLT, FLANGE

90105-06040-00

Unavailable

25

BOLT, FLANGE

95817-06035-00

Unavailable

26

BOLT,SOCKET

91317-06035-00

Unavailable

27

COLLAR

90387-0614M-00

Unavailable

28

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

29

PLATE

2C0-12535-00-00

Unavailable

30

DAMPER, AIR SHROUD 4

13S-12669-00-00

Unavailable

31

RIVET

90269-07007-00

Unavailable

32

BRACKET 1

2C0-1244E-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable

34

HOSE 4

2C0-12579-00-00

Unavailable

35

HOSE CLAMP ASSY

90450-35001-00

$5.60

36

JOINT, HOSE 2

2C0-12582-00-00

Unavailable

37

HOSE 7

2C0-12551-00-00

Unavailable

38

HOSE CLAMP ASSY

90450-35001-00

$5.60

39

HOSE CLAMP ASSY

90450-35001-00

$5.60

40

CLIP

90467-310A0-00

Unavailable

41

HOSE 6

2C0-12589-00-00

Unavailable

42

CLIP

90467-200A0-00

Unavailable

43

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

44

CLAMP 1

2C0-12491-00-00

Unavailable

45

BOLT, FLANGE

95027-10020-00

Unavailable

46

TANK, RECOVERY

2C0-21871-00-00

Unavailable

47

COLLAR (8G8)

90387-06681-00

Unavailable

48

CAP

2C0-21875-00-00

Unavailable

49

ELBOW

26H-21828-00-00

Unavailable

50

PIPE 1

2C0-21816-01-00

Unavailable

51

HOSE,3

2C0-1243F-00-00

Unavailable

52

CLIP 101235600

90467-08003-00

Unavailable

53

CLIP

90467-10M04-00

Unavailable

54

CLIP 101235600

90467-08003-00

Unavailable

55

BOLT, FLANGE

95817-06014-00

Unavailable

56

CLAMP(6R8)

90464-10M38-00

Unavailable

57

BRACKET 5

13S-2836H-00-00

Unavailable

58

NUT, SPRING(4ES)

90183-06069-00

Unavailable

59

BOLT, FLANGE

95817-06014-00

Unavailable

60

COVER 5

2C0-1246H-00-00

Unavailable

61

DAMPER, AIR SHROUD 3

13S-12668-00-00

Unavailable

62

RIVET

90269-06001-00

Unavailable
