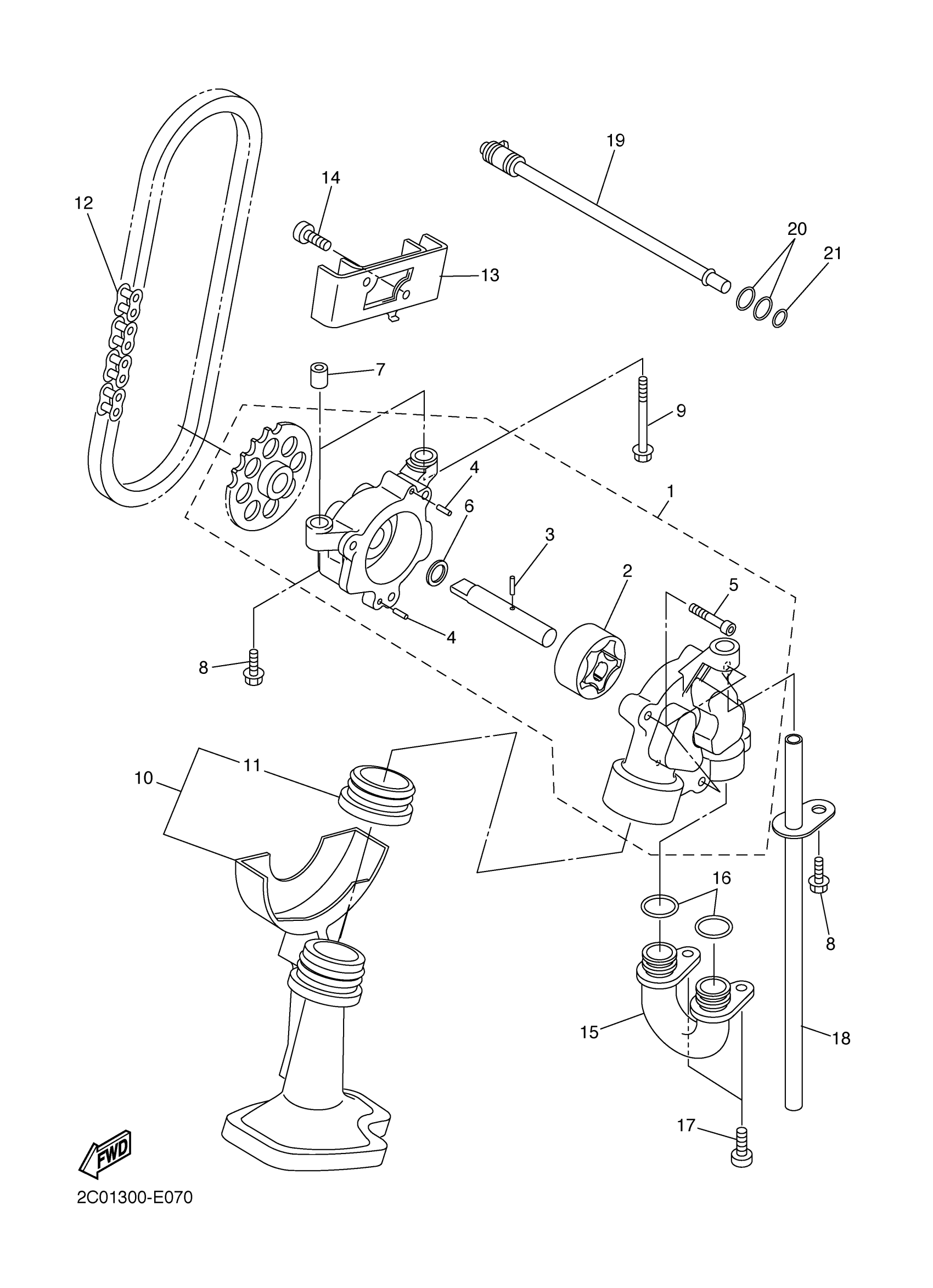

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2C0-13300-00-00

$365.99

2

ROTOR ASSY 1

4SV-13310-00-00

$48.99

3

PIN,DOWEL

93603-17070-00

$4.14

4

PIN, DOWEL (341)

93603-09106-00

$2.28

5

BOLT,SOCKET

91317-06025-00

$5.60

6

WASHER, PLATE(1WG)

90201-113K2-00

$9.49

7

PIN, DOWEL

91808-17032-00

$5.60

8

BOLT, FLANGE

95812-06030-00

$8.49

9

BOLT, FLANGE

95812-06080-00

$8.49

10

STRAINER HOUSING ASSY

2C0-13410-00-00

$46.99

11

SEAL, OIL STRAINER

2C0-13415-00-00

$14.49

12

CHAIN

94580-25074-00

$9.99

13

HOLDER

2C0-13898-01-00

$22.99

14

BOLT,SOCKET

91317-06016-00

$1.25

15

PIPE, OIL 1

2C0-13416-00-00

Unavailable

16

O-RING

93210-14003-00

Unavailable

17

BOLT,SOCKET

91317-06016-00

$1.25

18

PIPE, DELIVERY 1

5EB-13161-00-00

Unavailable

19

PIPE, DELIVERY 5

2C0-1316E-00-00

Unavailable

20

O-RING (1J7)

93210-09350-00

Unavailable

21

O-RING(26H)

93210-06667-00

Unavailable
