Description

Price

1

FRONT FORK ASSY (L.H)

13S-23102-12-00

$1,285.99

2

INNER TUBE COMP.1

13S-23110-03-00

Unavailable

3

OUTER TUBE COMP. (L.H)

13S-23106-10-00

Unavailable

4

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

5

OIL SEAL

5VU-23145-00-00

$29.99

6

CLIP, OIL SEAL

3VD-23156-00-00

$7.99

7

SEAL, DUST

3VD-23144-00-00

$27.99

8

CYLINDER COMP., FRONT FORK

13S-23170-00-00

Unavailable

9

BOLT, CAP

13S-23111-00-00

$280.99

10

O-RING

93210-41N50-00

$8.49

11

NUT, SPECIAL

13S-23393-00-00

Unavailable

12

PLATE, VALVE 2

13S-2332N-00-00

$7.99

13

SEAT, SPRING LOWER

2C0-23143-00-00

Unavailable

14

SPRING, FRONT FORK

13S-23141-00-00

Unavailable

15

SEAT, SPRING UPPER

13S-23142-00-00

$6.99

16

SPACER

13S-23118-00-00

Unavailable

17

BOLT,SOCKET

91314-08040-00

Unavailable

18

FRONT FORK ASSY (R.H)

13S-23103-12-00

Unavailable

19

INNER TUBE COMP.2

13S-23120-03-00

Unavailable

20

OUTER TUBE COMP. (L.H)

13S-23106-10-00

Unavailable

21

GUIDE, COVER UPPER

3VD-23115-00-00

$11.99

22

OIL SEAL

5VU-23145-00-00

$29.99

23

CLIP, OIL SEAL

3VD-23156-00-00

$7.99

24

SEAL, DUST

3VD-23144-00-00

$27.99

25

CYLINDER COMP., FRONT FORK

13S-23170-00-00

Unavailable

26

BOLT, CAP

13S-23111-00-00

$280.99

27

O-RING

93210-41N50-00

$8.49

28

NUT, SPECIAL

13S-23393-00-00

Unavailable

29

PLATE, VALVE 2

13S-2332N-00-00

$7.99

30

SEAT, SPRING LOWER

2C0-23143-00-00

Unavailable

31

SPRING, FRONT FORK

13S-23141-00-00

Unavailable

32

SEAT, SPRING UPPER

13S-23142-00-00

$6.99

33

SPACER

13S-23118-00-00

Unavailable

34

BOLT,SOCKET

91314-08040-00

Unavailable

35

UNDER BRACKET COMP.

2CX-23340-00-00

Unavailable

36

BOLT,SOCKET

91314-08030-00

Unavailable

37

BEARING

93399-99957-00

Unavailable

38

SEAL, STEERING

3FV-23462-00-00

Unavailable

39

FORK SEAL KIT (TWO FORKS)

5VU-W003B-00-00

Unavailable

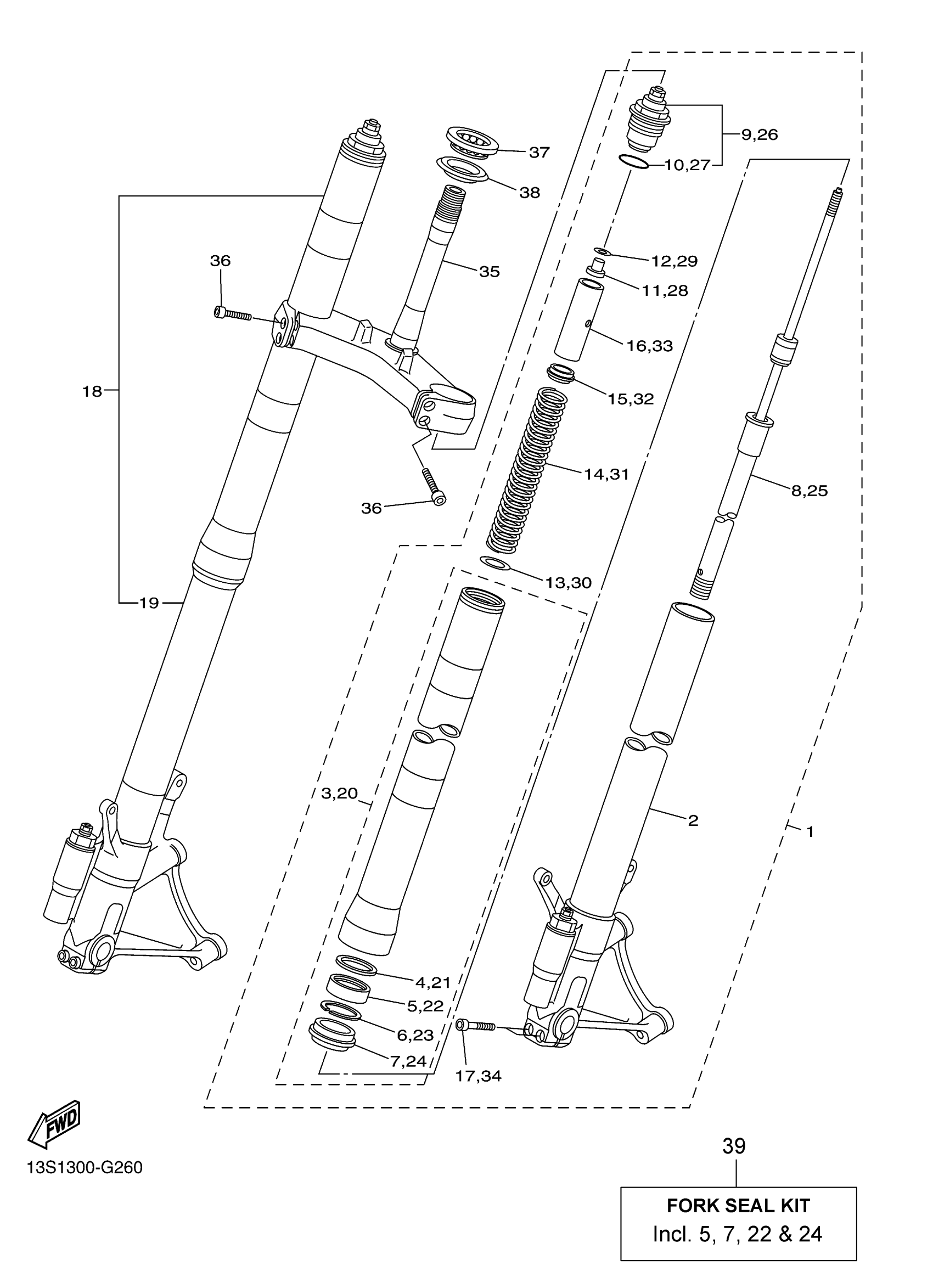

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 FRONT FORK Diagram

FRONT FORK ASSY (L.H)

INNER TUBE COMP.1

OUTER TUBE COMP. (L.H)

GUIDE, COVER UPPER

OIL SEAL

CLIP, OIL SEAL

SEAL, DUST

CYLINDER COMP., FRONT FORK

BOLT, CAP

O-RING

NUT, SPECIAL

PLATE, VALVE 2

SEAT, SPRING LOWER

SPRING, FRONT FORK

SEAT, SPRING UPPER

SPACER

BOLT,SOCKET

FRONT FORK ASSY (R.H)

INNER TUBE COMP.2

OUTER TUBE COMP. (L.H)

GUIDE, COVER UPPER

OIL SEAL

CLIP, OIL SEAL

SEAL, DUST

CYLINDER COMP., FRONT FORK

BOLT, CAP

O-RING

NUT, SPECIAL

PLATE, VALVE 2

SEAT, SPRING LOWER

SPRING, FRONT FORK

SEAT, SPRING UPPER

SPACER

BOLT,SOCKET

UNDER BRACKET COMP.

BOLT,SOCKET

BEARING

SEAL, STEERING

FORK SEAL KIT (TWO FORKS)
