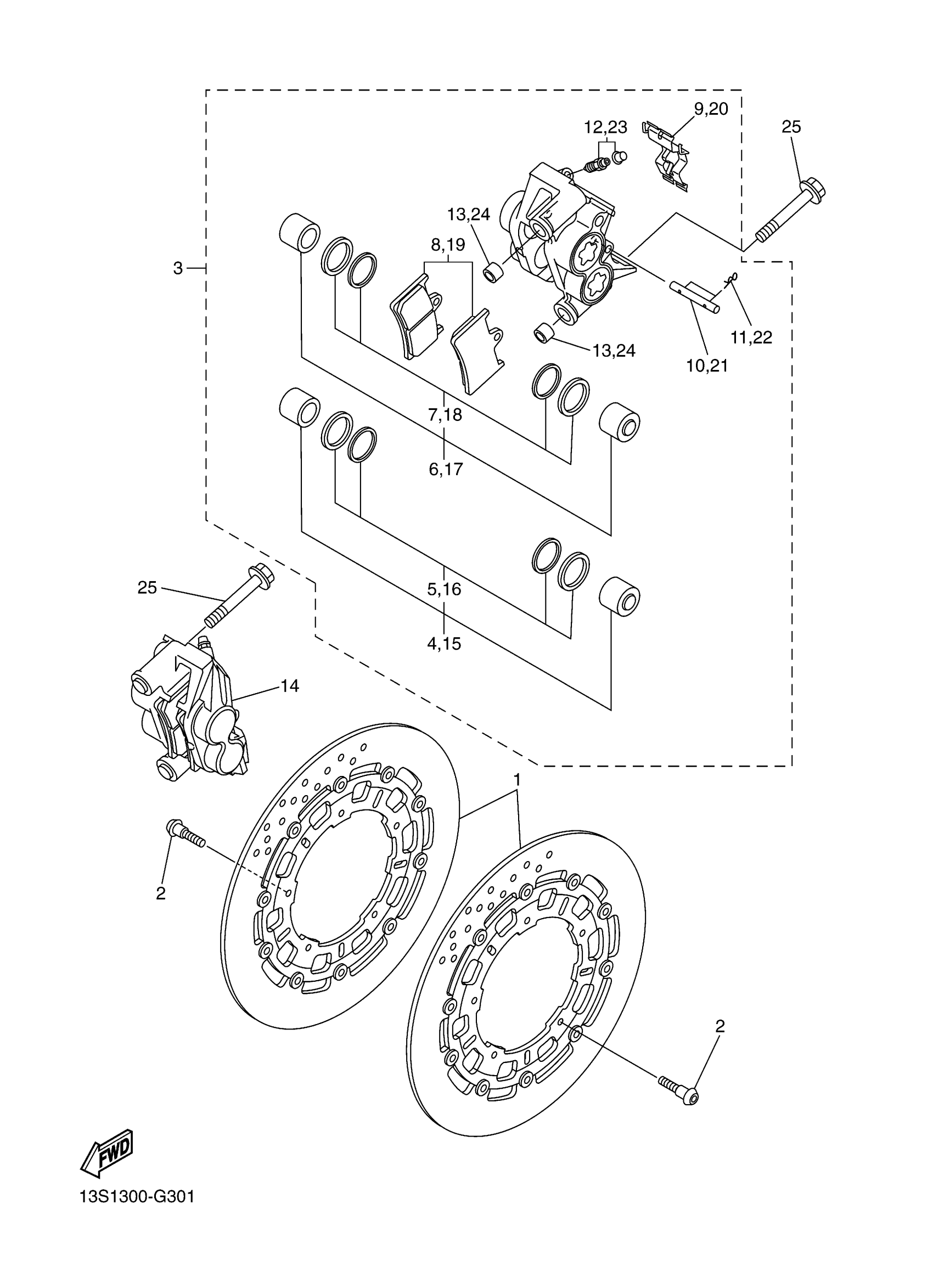

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

13S-2581T-00-00

$323.99

2

SCREW

90149-06045-00

$8.49

3

CALIPER ASSY (LEFT)

13S-2580T-10-00

Unavailable

4

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

5

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

6

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

7

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

8

BRAKE PAD KIT

2C0-25805-00-00

$61.99

9

SUPPORT, PAD

13S-25919-00-00

$27.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

PIN, KNOCK

5VY-2583B-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

13S-2580U-10-00

Unavailable

15

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

16

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

17

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

18

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

19

BRAKE PAD KIT

2C0-25805-00-00

$61.99

20

SUPPORT, PAD

13S-25919-00-00

$27.99

21

PIN, PAD

4SV-25924-00-00

$42.99

22

CLIP, PAD PIN

3GM-25925-00-00

$11.99

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

PIN, KNOCK

5VY-2583B-00-00

Unavailable

25

BOLT, FLANGE

90105-10397-00

Unavailable
