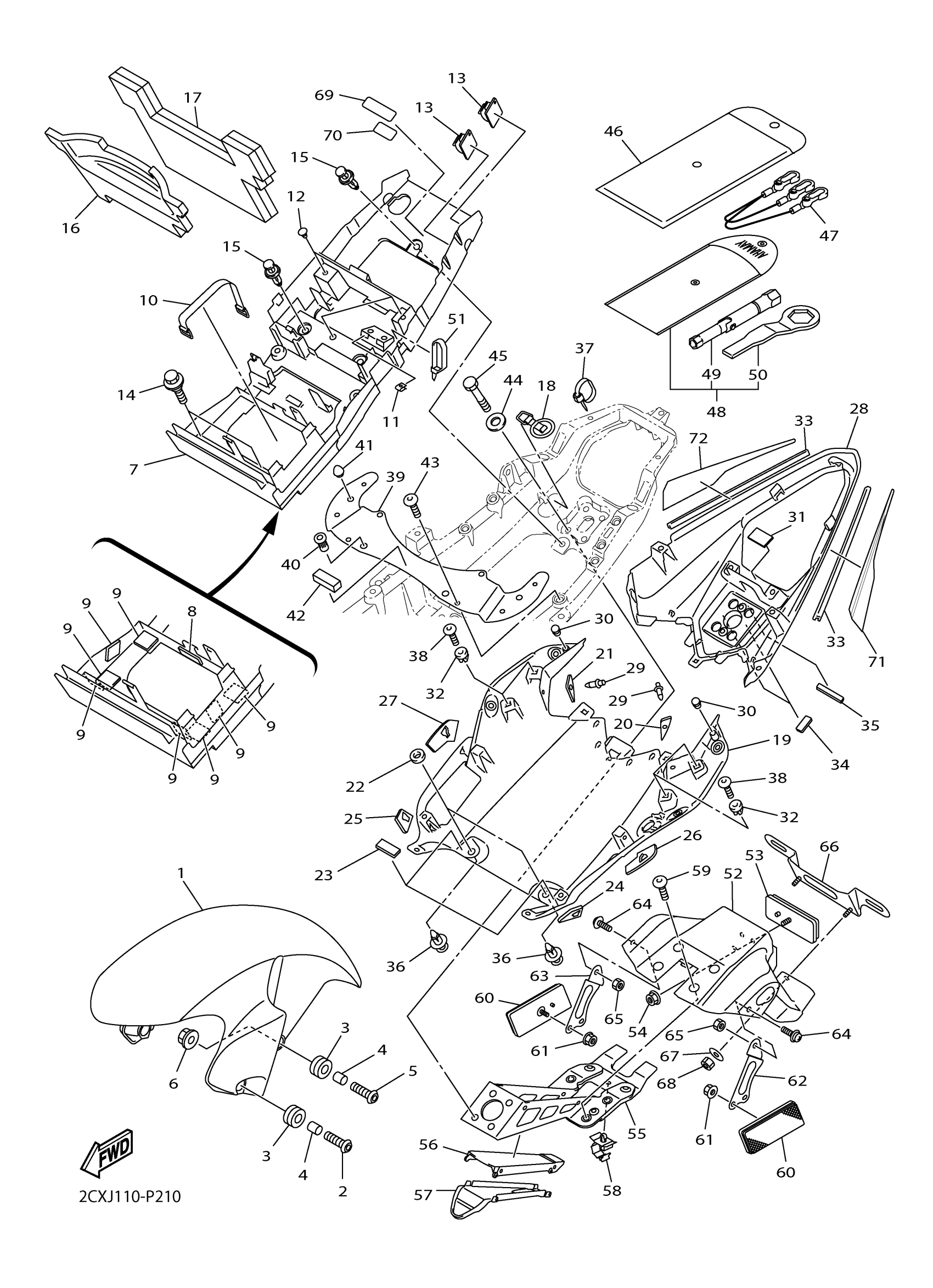

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 FENDER Diagram
#
1
FENDER, FRONT
2C0-21511-00-P8
Unavailable
7
BOX, BATTERY 1
13S-8212B-00-00
Unavailable
9
DAMPER
13S-21649-00-00
Unavailable
14
BOLT
90109-06171-00
Unavailable
16
PROTECTOR
13S-21652-00-00
Unavailable
17
DAMPER PLATE ASSY
13S-24140-00-00
Unavailable
18
BAND, TOOL
13S-21376-00-00
Unavailable
19
FENDER, REAR
13S-21611-00-P3
Unavailable
20
SEAT
13S-2172P-00-00
Unavailable
21
SEAT
13S-2173P-00-00
Unavailable
22
SEAL 2
13S-21735-00-00
Unavailable
23
DAMPER, PLATE
90520-02014-00
Unavailable
24
SEAL
13S-21669-00-00
Unavailable
25
SEAL, 2
13S-216A2-00-00
Unavailable
26
SEAL, 3
13S-216A3-00-00
Unavailable
27
SEAL, 4
13S-216A4-00-00
Unavailable
28
FENDER 2
13S-2162R-00-P3
Unavailable
29
RIVET
90269-06001-00
Unavailable
31
PLATE 1
5GM-27445-00-00
Unavailable
32
GROMMET
90480-08005-00
Unavailable
33
SEAL 1
13S-21732-00-00
Unavailable
34
SEAL 1
13S-21575-00-00
Unavailable
35
SEAL 4
13S-2173N-00-00
Unavailable
37
CLAMP(4FM)
90464-15195-00
Unavailable
38
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
39
BRACKET
13S-21131-00-00
Unavailable
40
NUT
90179-06010-00
Unavailable
41
PLUG
90338-07018-00
Unavailable
42
DAMPER
5YT-24665-00-00
Unavailable
43
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
44
WASHER, SPECIAL 1
13S-21615-00-00
Unavailable
45
BOLT, HEXAGON
97017-06025-00
Unavailable
46
TOOL KIT
2C0-28100-00-00
Unavailable
47
HELMET HANGER ASSY
2C0-21370-00-00
Unavailable
48
TOOL KIT 2
2C0-28110-01-00
Unavailable
49
BOX, SPARK PLUG
4XV-2814F-00-00
Unavailable
50
SPANNER, SPECIAL
4FM-28135-00-00
Unavailable
51
CLAMP (6E5)
90465-13M11-00
Unavailable
52
GUARD, MUD
2C0-21629-11-00
Unavailable
53
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
54
NUT, S/L FLANGE
95607-05200-00
Unavailable
55
REAR STAY COMP.
13S-21640-00-00
Unavailable
56
COVER, REAR FENDER 1
2C0-2163A-00-00
Unavailable
57
COVER, REAR FENDER 2
2C0-2163E-00-00
Unavailable
58
CLAMP(4NX)
90464-14228-00
Unavailable
59
BOLT
90109-06182-00
Unavailable
60
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
61
NUT, FLANGE
95702-05500-00
Unavailable
62
BRACKET, REAR STAY
2C0-21688-00-00
Unavailable
63
BRACKET, REAR STAY 2
2C0-21689-00-00
Unavailable
64
SCREW, WITH WASHER
90159-06011-00
Unavailable
65
NUT, SELF-LOCKING
95617-06100-00
Unavailable
66
BRACKET, LICENSE
5MT-84751-00-00
Unavailable
67
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
68
NUT, SELF-LOCKING
95617-06100-00
Unavailable
69
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
70
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
