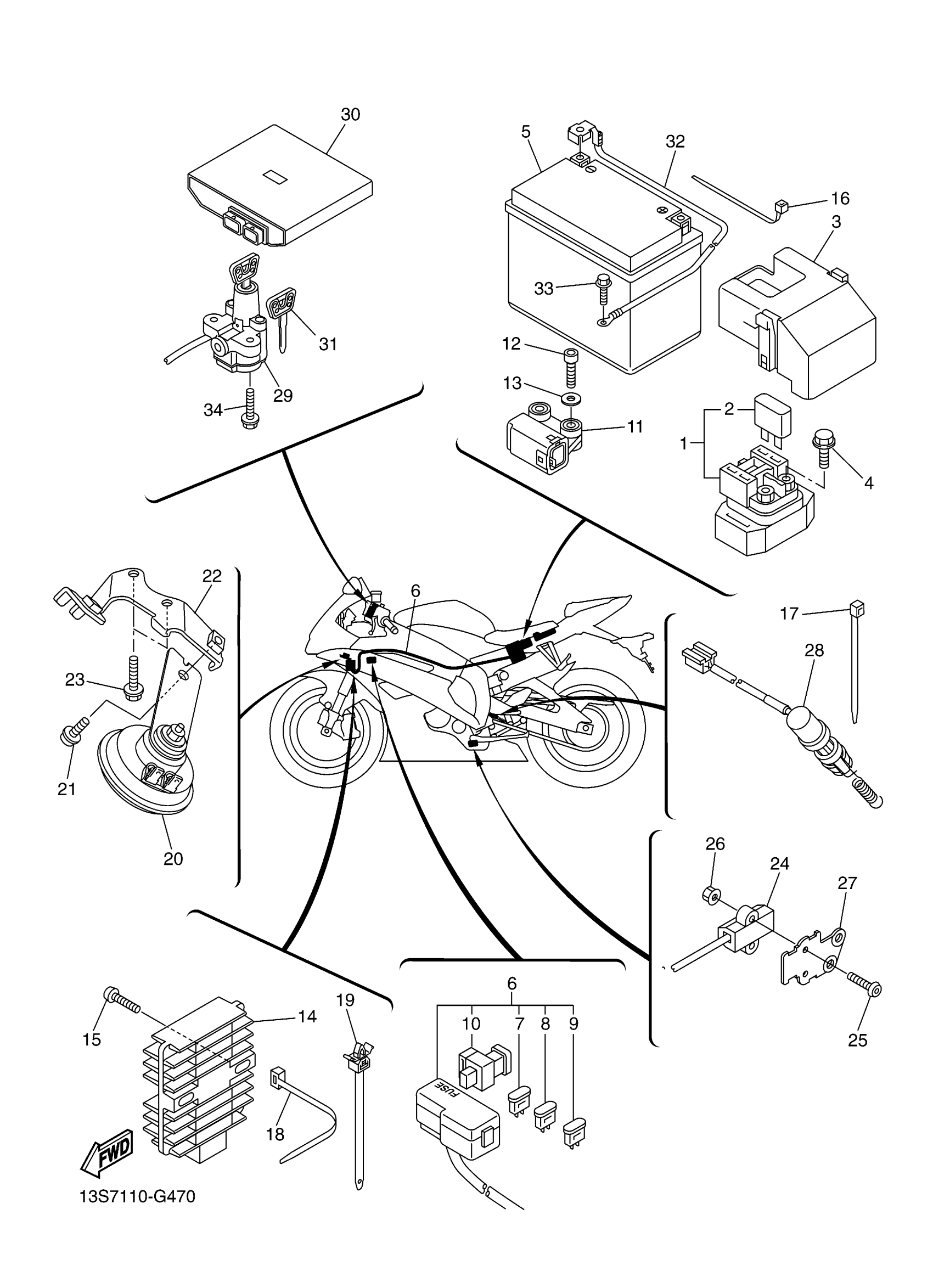

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-054)

2C0-81940-00-00

Unavailable

2

FUSE (12V 15A)

36Y-82151-00-00

$4.94

3

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

4

BOLT, FLANGE

95022-06008-00

$8.49

5

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

6

WIRE HARNESS ASSY

13S-82590-11-00

Unavailable

7

FUSE (15A)

67F-82151-50-00

Unavailable

8

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

FUSE (50A)

5JW-82151-10-00

$16.49

11

SENSOR, LEAN ANGLE

5PS-82576-02-00

$88.99

12

BOLT,SOCKET

91317-04025-00

$5.60

13

WASHER, PLATE

90201-042E0-00

$7.49

14

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

$179.99

15

BOLT, BUTTON HEAD

92012-06025-00

$3.13

16

CLAMP

90465-15011-00

Unavailable

17

BAND

1UA-82591-00-00

Unavailable

18

CLAMP

90464-16061-00

Unavailable

19

CLAMP(2TV)

90464-10112-00

Unavailable

20

HORN

4TH-83371-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

BRACKET, HORN

13S-23377-00-00

Unavailable

23

BOLT, FLANGE

95817-06020-00

Unavailable

24

SWITCH, SIDE STAND

13S-82566-70-00

Unavailable

25

BOLT, BUTTON HEAD

92012-05025-00

Unavailable

26

NUT, S/L FLANGE

95607-05200-00

Unavailable

27

BRACKET, SENSOR 1

2C0-27961-00-00

Unavailable

28

STOP SWITCH ASSY

13S-82530-03-00

Unavailable

29

MAIN SWITCH STEERING LOCK

2C0-82501-11-00

Unavailable

30

ENGINE CONTROL UNIT ASSY

13S-8591A-H1-00

Unavailable

31

BLANK KEY

4BH-82511-09-00

Unavailable

32

WIRE, MINUS LEAD

2C0-82116-00-00

Unavailable

33

BOLT

91380-06012-00

Unavailable

34

BOLT

90109-08196-00

Unavailable
