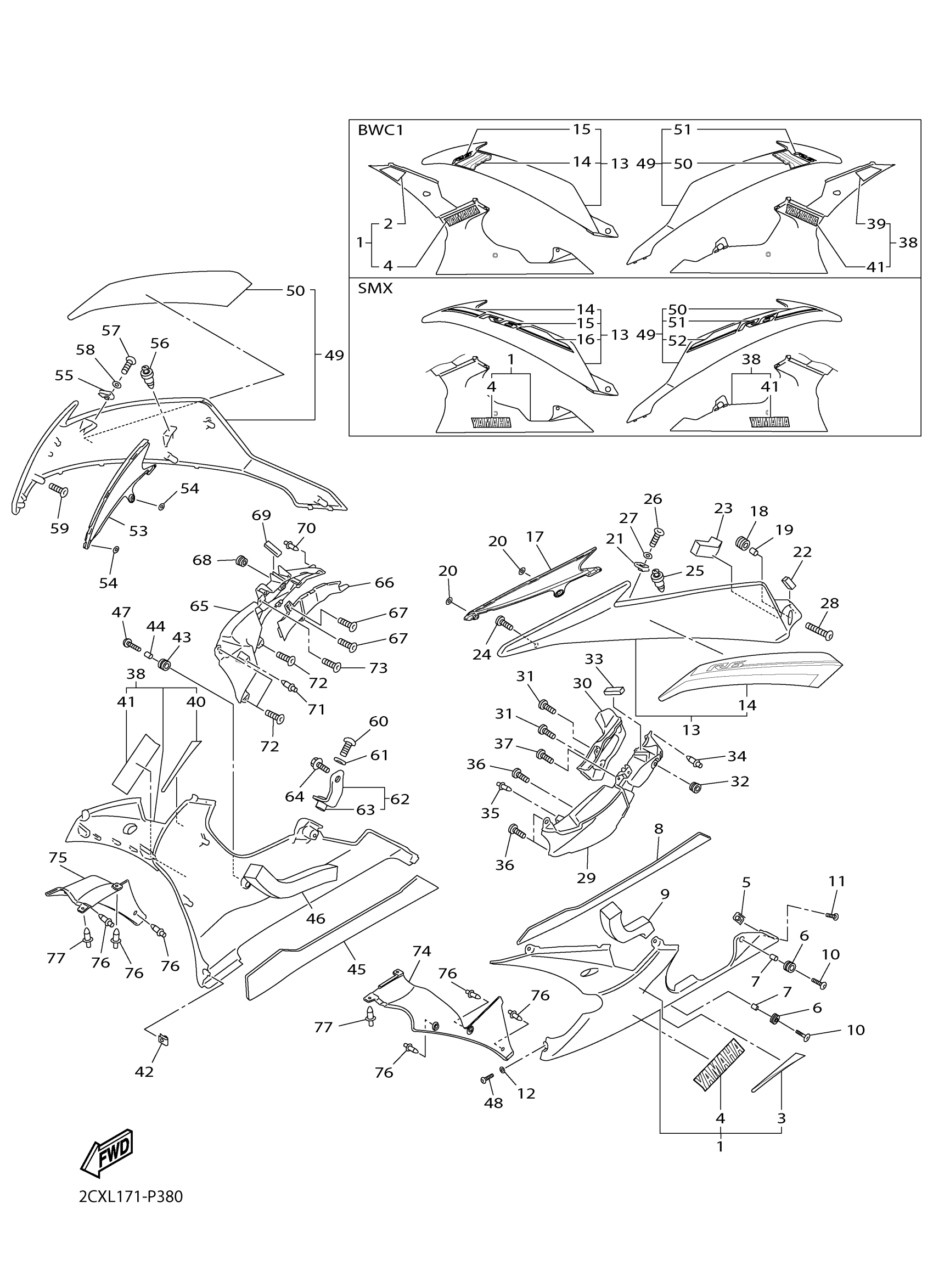

Yamaha YZFR6FW (YZFR6) 2CXJ1 2015 COWLING 2 Diagram

#

Description
Price

1

UNDER COVER COMP.

13S-W2838-R0-P0

Unavailable

4

EMBLEM, YAMAHA

2SG-2153B-20-00

$15.49

5

NUT, SPRING

90183-050A6-00

$8.49

6

GROMMET

90480-14003-00

$8.49

7

COLLAR

90387-06260-00

$8.49

8

SEAT 1

13S-2838G-00-00

Unavailable

9

DAMPER, PLATE

90520-50002-00

Unavailable

10

BOLT

90111-06040-00

$4.29

11

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

12

WASHER, PLATE(1KT)

90202-05180-00

$10.49

13

PANEL ASSY 1

13S-W283U-P0-P9

Unavailable

14

GRAPHIC 1

2CX-28391-60-00

Unavailable

15

EMBLEM 3D

2CX-2839B-10-00

Unavailable

16

GRAPHIC 2

2CX-28392-60-00

Unavailable

17

COVER 1

13S-28219-00-00

Unavailable

18

GROMMET

90480-14003-00

$8.49

19

COLLAR

90387-06260-00

$8.49

20

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

21

NUT, SPRING

90183-050A6-00

$8.49

22

DAMPER 1

13S-28415-00-00

Unavailable

23

DAMPER, PLATE

90520-50001-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

RIVET

90269-07007-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

27

WASHER, PLATE(1KT)

90202-05180-00

$10.49

28

BOLT

90111-06040-00

$4.29

29

GUIDE, AIR 1

13S-2137U-00-00

Unavailable

30

GUIDE, AIR 3

13S-2137K-01-00

Unavailable

31

SCREW, TAPPING

97702-50016-00

Unavailable

32

GROMMET(4DN)

90480-01558-00

Unavailable

33

DAMPER 1

13S-28217-00-00

Unavailable

34

RIVET

90269-06008-00

Unavailable

35

RIVET

90269-06081-00

Unavailable

36

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

37

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

38

UNDER COVER COMP.

13S-W2839-R0-P0

Unavailable

41

EMBLEM, YAMAHA

2SG-2153B-20-00

$15.49

42

NUT, SPRING

90183-050A6-00

$8.49

43

GROMMET

90480-14003-00

$8.49

44

COLLAR

90387-06260-00

$8.49

45

SEAT 2

13S-2848K-00-00

Unavailable

46

DAMPER 10

13S-2847R-00-00

Unavailable

47

BOLT

90111-06040-00

$4.29

48

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

49

PANEL ASSY 2

13S-W283V-P0-P9

Unavailable

50

GRAPHIC 3

2CX-28393-60-00

Unavailable

51

EMBLEM 3D

2CX-2839B-10-00

Unavailable

52

GRAPHIC 4

2CX-28394-60-00

Unavailable

53

COVER 2

13S-28229-00-00

Unavailable

54

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

55

NUT, SPRING

90183-050A6-00

$8.49

56

RIVET

90269-07007-00

Unavailable

57

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

58

WASHER, PLATE(1KT)

90202-05180-00

$10.49

59

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

60

BOLT

90109-06207-00

Unavailable

61

WASHER, PLATE

90202-10024-00

Unavailable

62

BRACKET 4

13S-2836G-00-00

Unavailable

63

NUT

90179-06059-00

Unavailable

64

BOLT, FLANGE

95817-06014-00

Unavailable

65

GUIDE, AIR 2

13S-2137V-00-00

Unavailable

66

GUIDE, AIR 4

13S-2137L-01-00

Unavailable

67

SCREW, TAPPING

97702-50016-00

Unavailable

68

GROMMET(4DN)

90480-01558-00

Unavailable

69

DAMPER 1

13S-28217-00-00

Unavailable

70

RIVET

90269-06008-00

Unavailable

71

RIVET

90269-06081-00

Unavailable

72

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

73

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

74

PANEL, INNER 2

13S-2836L-00-00

Unavailable

75

PANEL, INNER 3

13S-2836M-00-00

Unavailable

76

RIVET

90269-06008-00

Unavailable

77

RIVET

90269-06002-00

Unavailable
