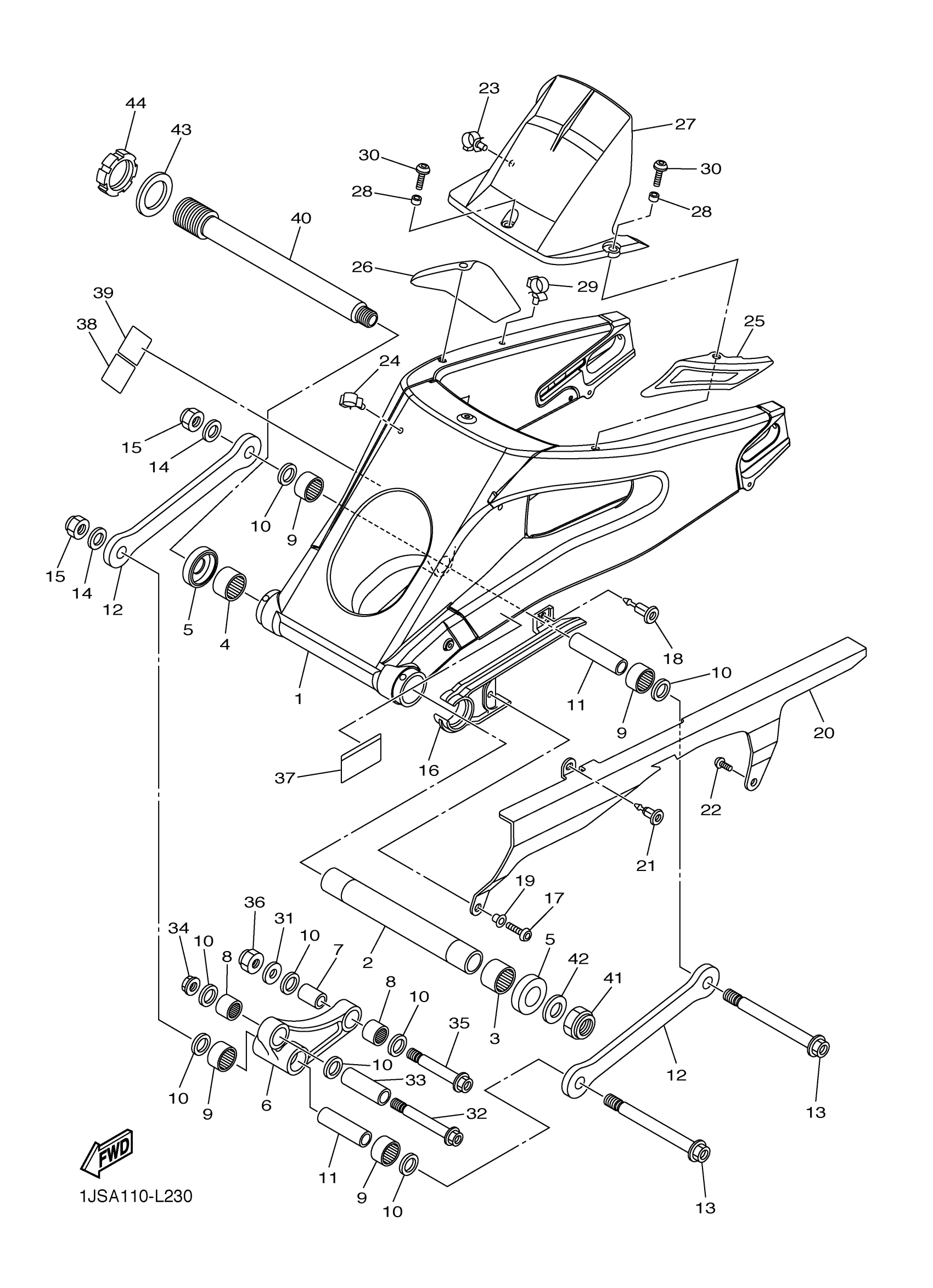

Yamaha YZFR6ER (YZFR6) 2CX71 2014 REAR ARM Diagram
#
2
BUSH
2C0-22184-00-00
Unavailable
5
COVER, THRUST 1
2C0-22128-00-00
Unavailable
6
ARM, RELAY
2C0-2217A-00-00
Unavailable
16
SEAL, GUARD
2C0-22151-00-00
Unavailable
17
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
18
RIVET
90269-07008-00
Unavailable
19
C0LLAR (3JB1)
90387-062X0-00
Unavailable
20
CASE, CHAIN
2C0-22311-01-00
Unavailable
21
RIVET
90269-07007-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
23
CLAMP
90464-16012-00
Unavailable
24
CLAMP
90464-16011-00
Unavailable
25
COVER ASSY 1
2C0-228A0-00-00
Unavailable
26
COVER ASSY 2
2C0-228B0-00-00
Unavailable
27
RR. FENDER COVER SET
99999-04338-00
Unavailable
28
COLLAR
90387-06106-00
Unavailable
29
CLAMP
90464-16012-00
Unavailable
30
BOLT
90111-06038-00
Unavailable
32
BOLT, FLANGE
90105-10211-00
Unavailable
33
COLLAR
90387-1012B-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
BOLT, FLANGE
90105-12082-00
Unavailable
37
LABEL, TIRE
14B-21668-01-00
Unavailable
38
PLATE, ROUTING
13S-21684-10-00
Unavailable
39
PLATE, ROUTING 2
13S-21686-10-00
Unavailable
40
SHAFT, PIVOT
2C0-22141-10-00
Unavailable
41
NUT, SELF-LOCKING
90185-22009-00
Unavailable
42
WASHER, PLATE
90201-22014-00
Unavailable
43
WASHER, PLATE
90201-33014-00
Unavailable
44
NUT
2C0-22252-00-00
Unavailable
